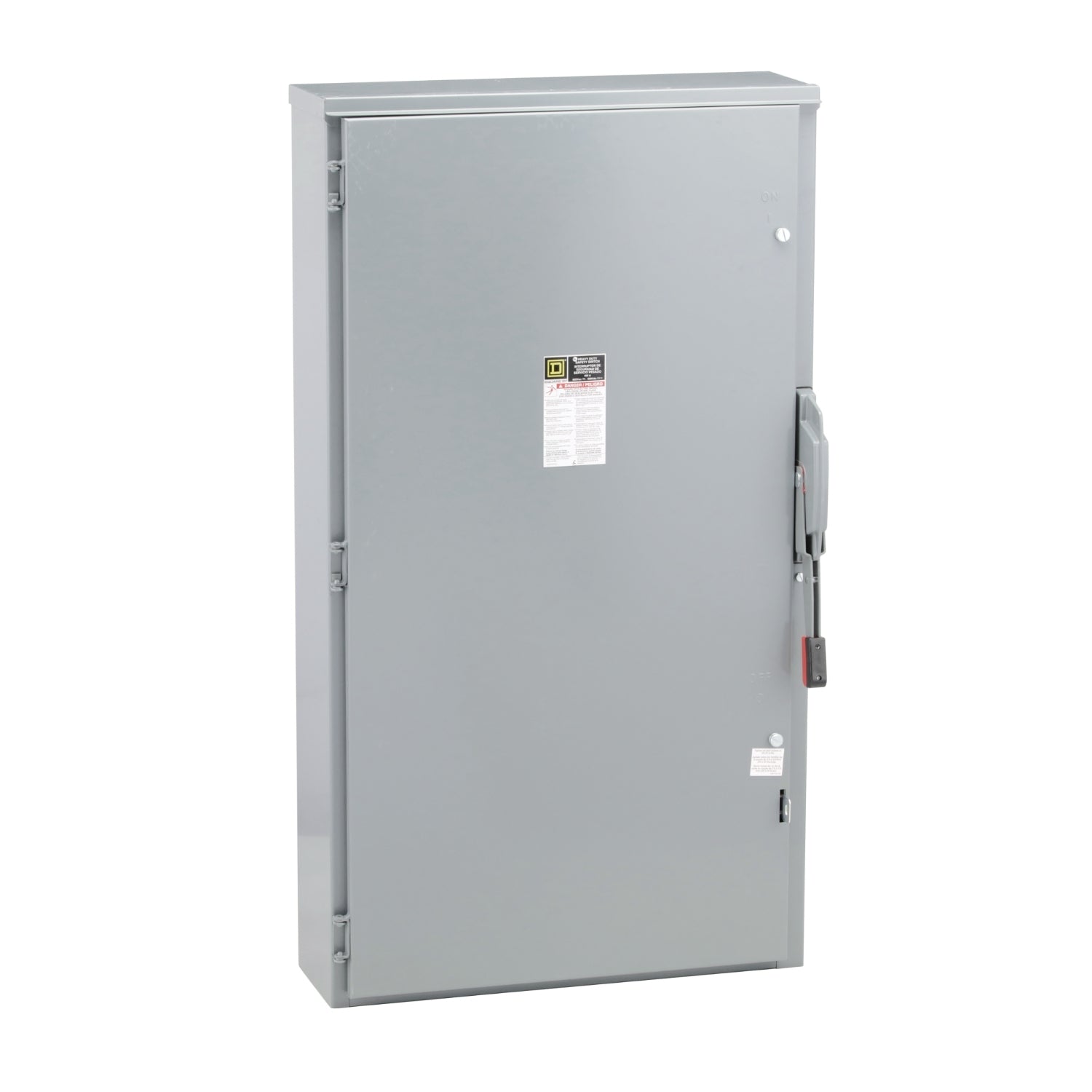

HU365R | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $3,015.00
- Sale price
- $3,015.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HU365R
Description
The HU365R from Square D™ by Schneider Electric is a heavy-duty, non-fusible safety switch engineered for durability and reliability under demanding conditions. This NEMA 3R-rated switch is designed to exceed the mechanical endurance requirements of NEMA KS-1 and UL98 standards. It features a quick-make, quick-break operating mechanism and a dual cover interlock for enhanced safety. The switch is equipped with a color-coded indicator handle for clear operational status indication.
Technical Specifications
|
Part # |
HU365R |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch Product |
|
Disconnect Type |
Non-fusible disconnect |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
400 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 3R galvannealed steel |
|
Mounting Type |
Surface |
|
Electrical Connection |
Lugs |
|
Wiring Configuration |
3-wire |
|
Wire Size |
AWG 1/0...750 kcmil copper or aluminium |
|
Tightening Torque |
550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil) |
|
Depth |
10.13 in (257.30 mm) |
|
Width |
27.88 in (708.15 mm) |
|
Height |
50.31 in (1277.87 mm) |
|
Net Weight |
186.95 lb (84.8 kg) |
Information About HU365R
The HU365R from Square D™ by Schneider Electric is a Heavy Duty Safety Switch designed for robust performance in demanding environments. Classified under the F Series, these safety switches exceed mechanical endurance standards set by NEMA KS-1 and UL98, ensuring reliability under extreme conditions. Featuring a quick-make, quick-break mechanism, dual cover interlock, and a color-coded indicator handle, it ensures efficient operation and safety.
This Single Throw Safety Switch is rated for 400A and holds UL certification with a NEMA 1 protection rating. It operates as a 3-pole switch with a voltage rating of 600VAC/DC. The enclosure, constructed from galvannealed steel, offers NEMA 3R protection, suitable for outdoor installations. Notably, it does not include a factory-installed neutral.
The HU365R is a non-fusible disconnect, designed to handle substantial electrical loads with a short-circuit current rating of 200kA, ensuring robust protection against short circuits. Its surface mounting configuration enhances installation flexibility, accommodating various industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
