HU365SS | Schneider Electric Safety Switch, Heavy Duty
- Regular price
- $20,519.00
- Sale price
- $20,519.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HU365SS
Description

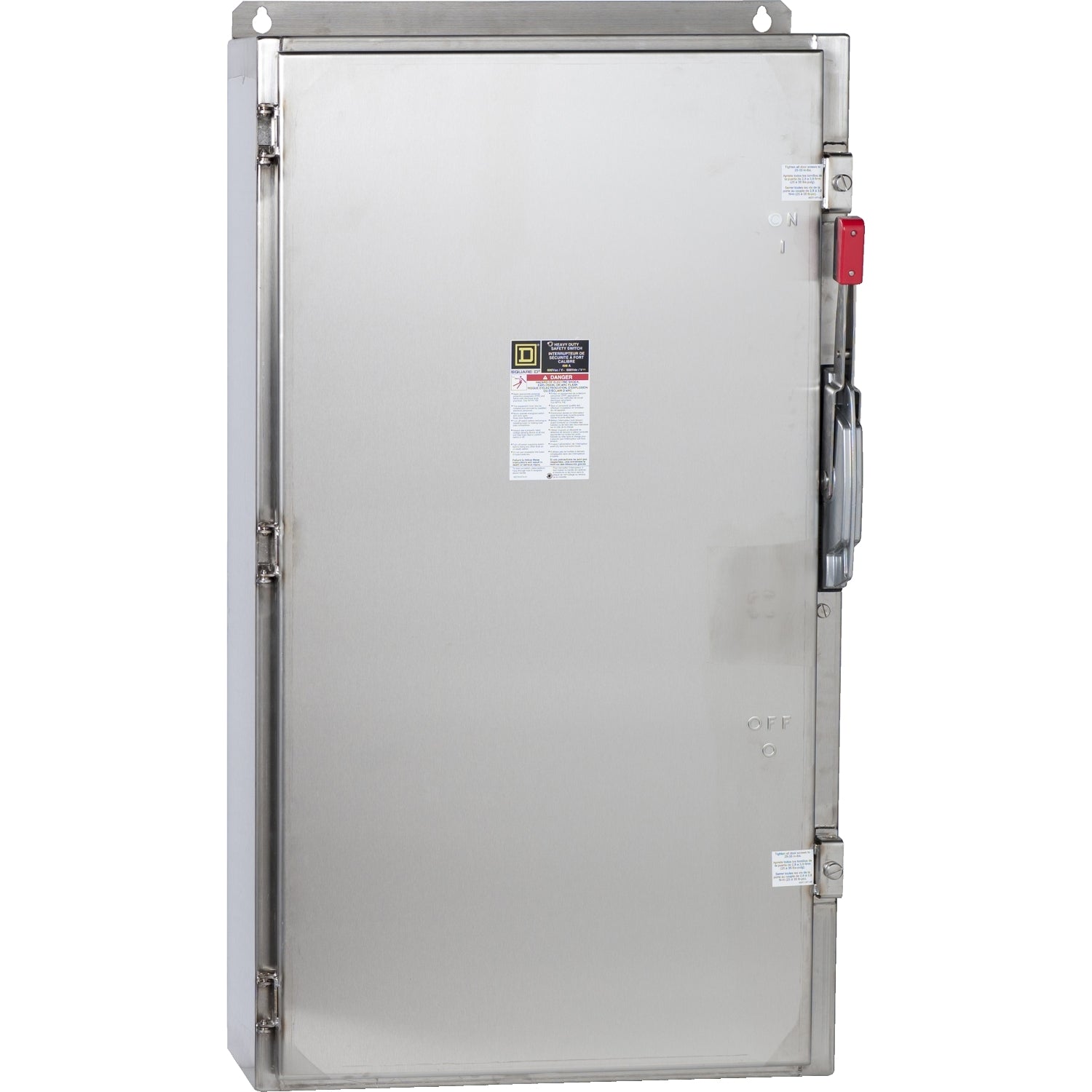

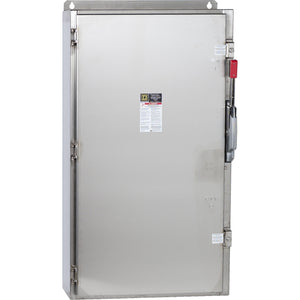

The HU365SS is a heavy-duty safety switch manufactured by Square D, part of the Series E. It is a type HU disconnect, non-fusible, designed for 3-phase systems. This switch supports a current rating of 400 amps and a voltage rating of 600 volts. It has a 3-pole configuration and is rated for 350 horsepower applications. The interrupting rating is 200kA at 600 volts.
This safety switch is constructed with a stainless steel enclosure, classified under NEMA ratings 3, 3R, 4, 4X, 5, and 12, making it suitable for rainproof, dust-tight, and corrosion-resistant applications. It is designed for both indoor and outdoor use. The unit is UL listed, ensuring compliance with safety standards.
Technical Specifications
|
Part # |
HU365SS |
|
Category |
Electrical Products |
|
Subcategory |
Safety Switch |
|
Product |
Single Throw Safety Switch |
|
Duty Rating |
Heavy duty |
|
Device Application |
Heavy application |
|
Disconnect Type |
Non-fusible disconnect |
|
Factory Installed Neutral |
None |
|
Phase |
3 phase |
|
Number of Poles |
3 |
|
Current Rating |
400 A |
|
Voltage Rating |
600 V AC/DC |
|
Enclosure Rating |
NEMA 4/4X/5 stainless steel 316 |
|
Mounting Type |
Surface |
|
Wiring Configuration |
3-wire |
|
Wire Size |
AWG 1/0...750 kcmil copper or aluminium |
|
Tightening Torque |
550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil) |
|
Depth |
9.75 in (247.65 mm) |
|
Width |
26.25 in (666.75 mm) |
|
Height |
48 in (1219.20 mm) |
|
Net Weight |
169.98 lb(US) (77.1 kg) |
Information About HU365SS
The HU365SS Safety Switch is a heavy-duty, non-fusible disconnect switch designed for robust performance in industrial settings. Manufactured by Square D as part of their Series E product line, this switch is engineered to ensure safety and reliability in electrical systems.
With a 3-phase, 3-pole configuration and 3-wire setup, the switch is capable of handling high currents up to 400A and voltages of 600V. It boasts an impressive interrupting rating of 200kA at 600V, making it suitable for demanding applications where protection against overloads and short circuits is critical.
Constructed from NEMA 4/4X stainless steel, the switch is rainproof, dust-tight, and corrosion-resistant, making it suitable for both indoor and outdoor use. Its non-fusible design ensures reliable operation without the need for fuses, enhancing its longevity and reducing maintenance requirements.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
