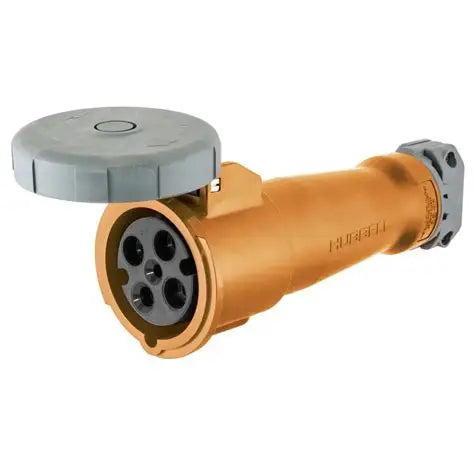

Hubbell 460C12W Pin and Sleeve Connector 60A 125/250V 3P4W
- Regular price
- $515.00
- Sale price
- $515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 460C12W
Description
The Hubbell 460C12W pin and sleeve female connector is a heavy-duty, watertight wiring device engineered for high-current industrial electrical connections. Rated for 60 Amps at 125/250V AC in a 3-Pole, 4-Wire (3P4W) grounding configuration, this IEC 60309-compliant connector provides safe, robust power delivery in demanding environments.Featuring a rugged watertight enclosure with a protective locking ring, it prevents accidental disconnections and seals out moisture, dust, and corrosive chemicals during continuous continuous duty.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hubbell |
| Category | Plug/Receptacle |
| Part Number | 460C12W |
| Subcategory | Pin and Sleeve Connector |
| Device Type | Female Cable Mount Connector |
| Current Rating | 60 Amps |
| Voltage Rating | 125/250V AC |
| Poles / Wires | 3-Pole, 4-Wire (3P4W) Grounding |
| Environmental Rating | Watertight (IP67 / IP69K) |
| Standard | IEC 60309-1 and 60309-2 |
| Weight | 3.00 lbs |
Information About 460C12W
The 460C12W is part of Hubbell's Advantage and Pin & Sleeve series, widely utilized in industrial plants, marine facilities, construction sites, and heavy OEM equipment. Weighing 1.36 kgs, its ergonomic impact-resistant Valox housing contains solid brass contact sleeves with stainless steel pressure screws, ensuring maximum conductivity and low electrical resistance. Color-coded orange for 125/250V AC identification, the unit features an internal neoprene gland cord grip that provides superior strain relief and maintains an environmental seal around power cables.
Key Features:
-
High-Capacity Electrical Rating: Rated for 60A 125/250V AC, 3-Pole, 4-Wire grounding electrical distribution setups.
-
IEC 60309 Compliance: Meets international standards for mechanical non-interchangeability and pin configurations.
-
Watertight Enclosure (W/T): Protective screw locking ring ensures IP67/IP69K ingress protection against high-pressure washdowns.
-
Rugged Valox Housing: Impact- and chemical-resistant PBT housing withstands extreme shop-floor environments.
-
Heavy-Duty Cable Strain Relief: Internal neoprene gland clamp prevents wire pull-outs and protects cable entry.
-
Color-Coded Orange Housing: Enables quick, unambiguous voltage identification across industrial facilities.
-
Solid Brass Contacts: Self-cleaning brass sleeves deliver low contact resistance and long contact life.
-
Compact 1.36 kgs Design: Lightweight yet robust construction for easy hand coupling and inline power extensions.
The 460C12W delivers the safety, durability, and performance required for high-current industrial power extensions and heavy electrical equipment connections.
