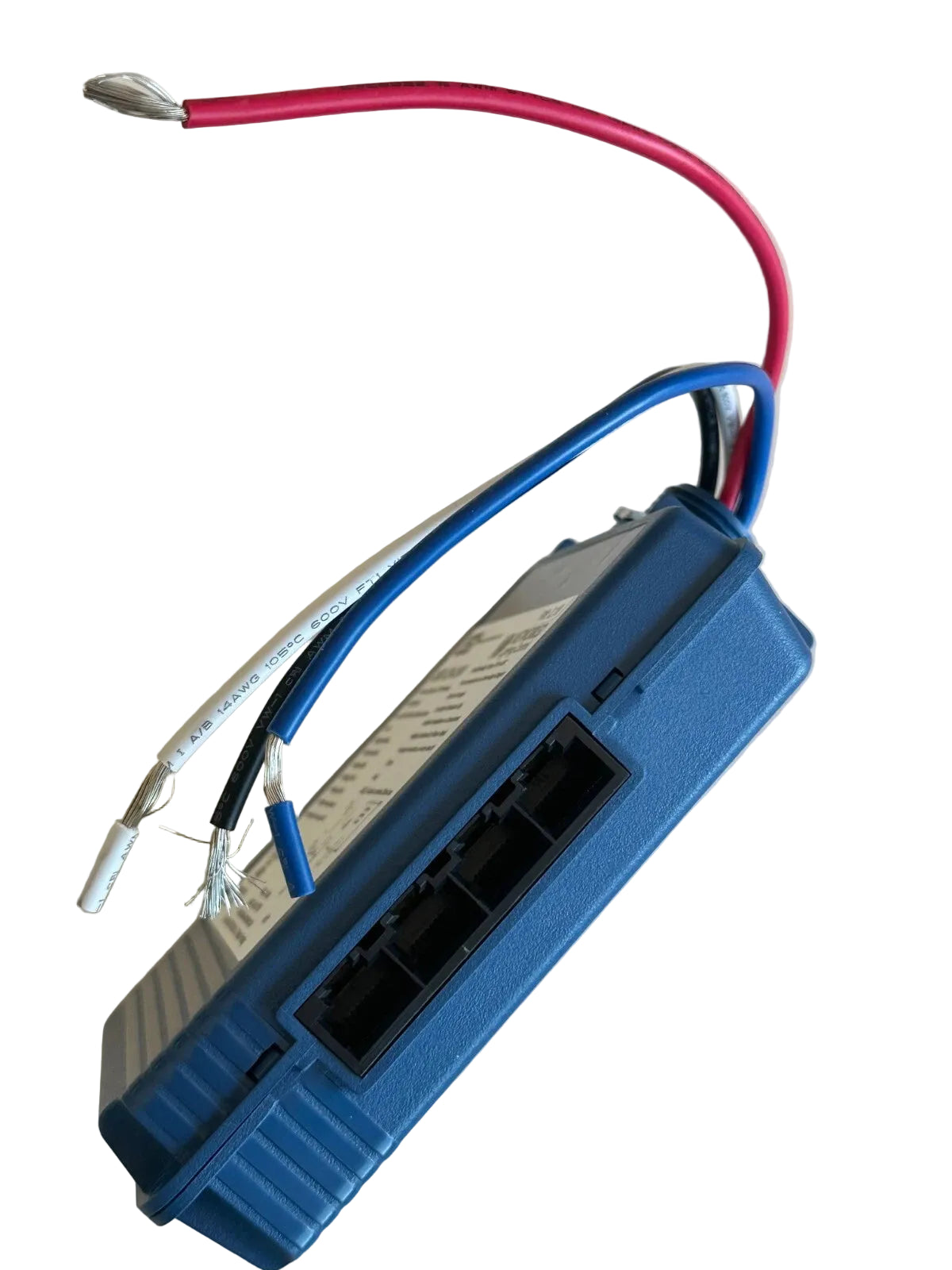

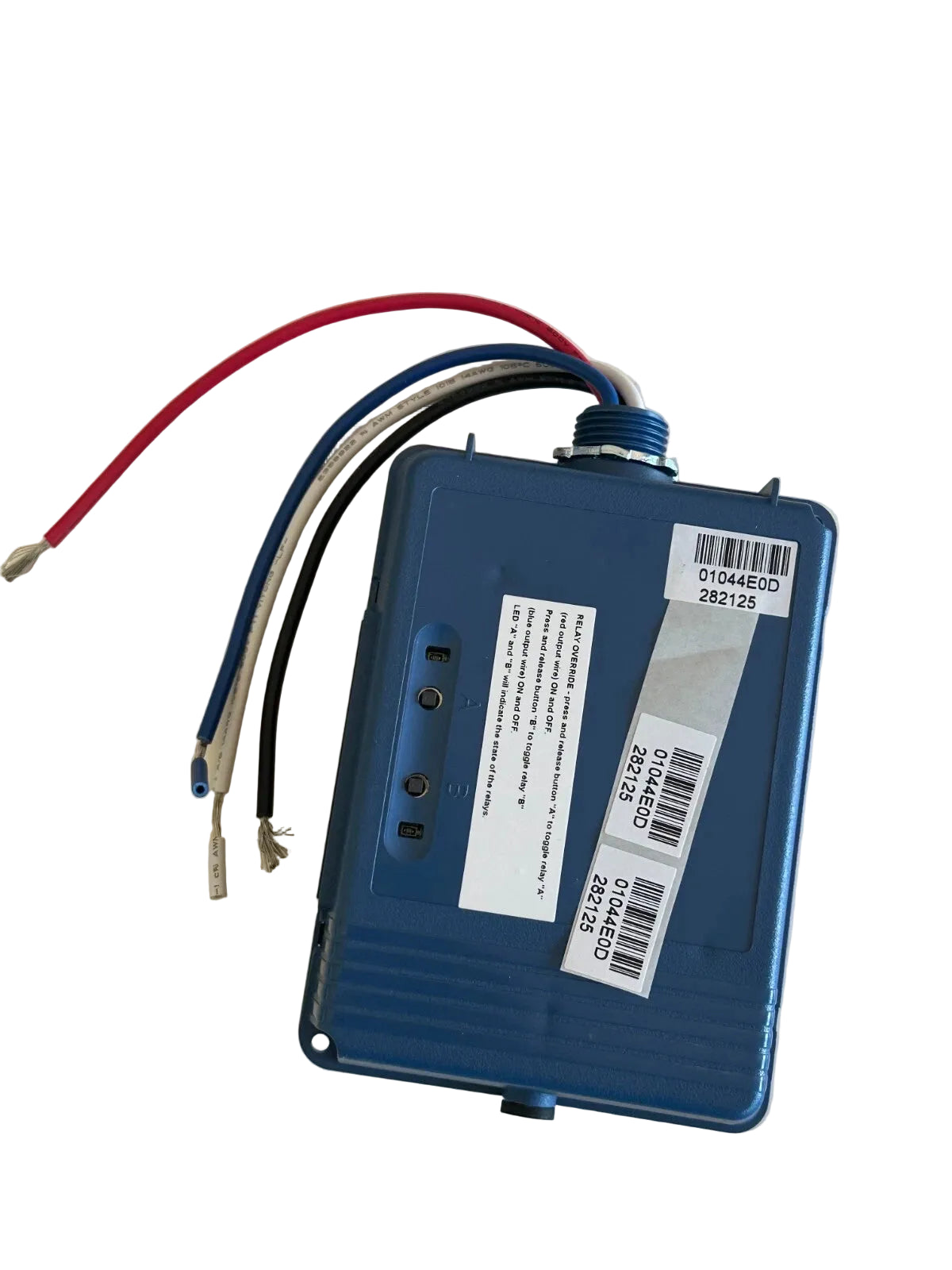

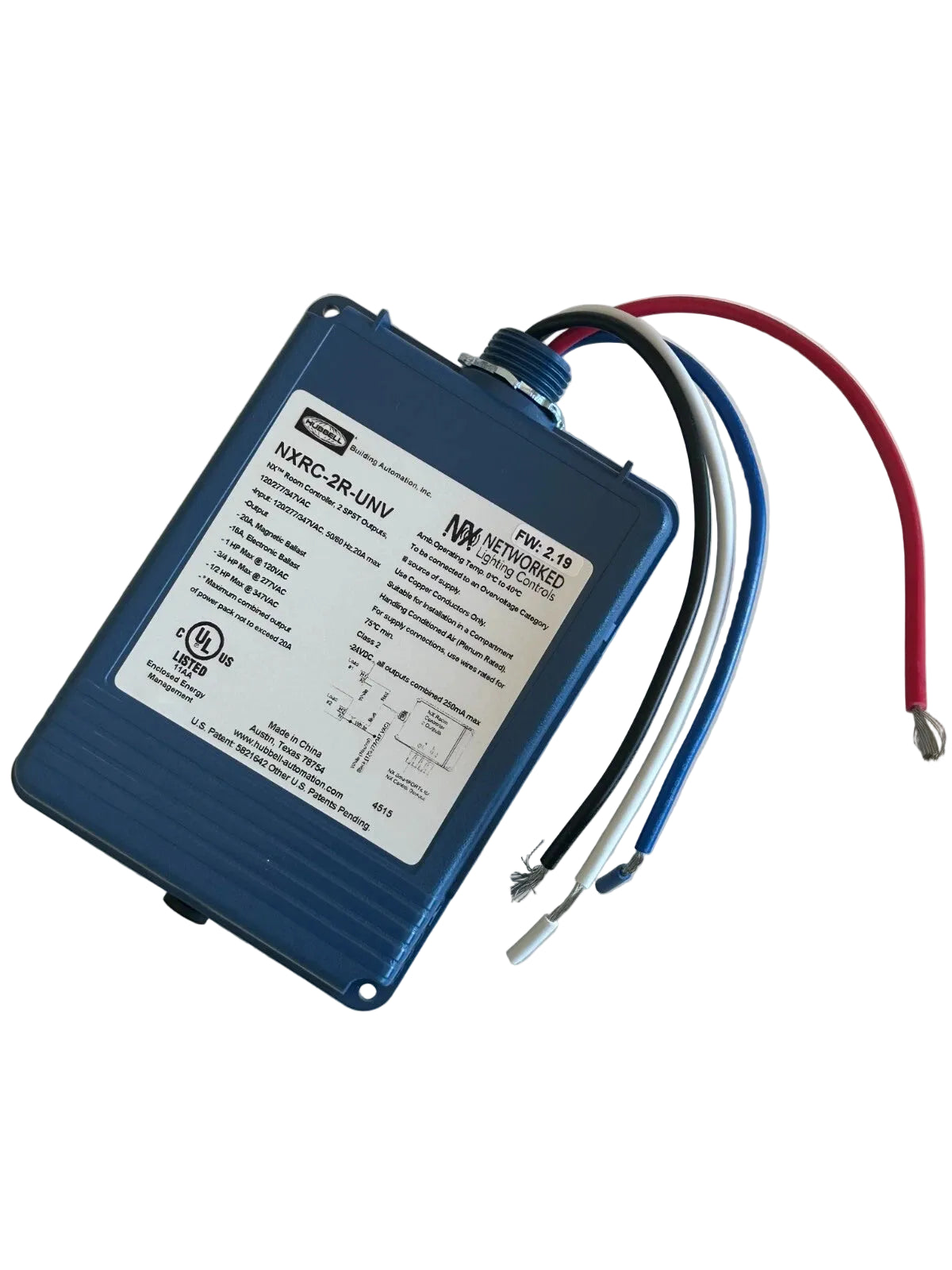

Hubbell NXRC-2R-UNV Networked Room Lighting Controller with Dual Relay Outputs
- Regular price
- $222.00
- Sale price
- $222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NXRC-2R-UNV
Description
The Hubbell NXRC-2R-UNV is a networked room controller designed to provide intelligent lighting control for commercial spaces using the NX Lighting Controls platform. Featuring two independently controlled SPST relay outputs, the controller supports occupancy-based operation, scheduling, and manual control while improving energy efficiency and code compliance. Its universal voltage design simplifies installation across a wide range of lighting applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hubbell Control Solutions |
| Category | Lighting |
| Part Number | NXRC-2R-UNV |
| Subcategory | Lighting Controller |
| Product Type | Networked Room Controller |
| Series | NX Room Controller |
| Relay Outputs | 2 SPST Outputs |
| Supply Voltage | 120/277 VAC |
| Frequency | 50/60 Hz |
| Maximum Load Rating | 20 A |
| Motor Rating | 1 HP |
| Operating Temperature | 0°C to 40°C |
| Control Ports | 4 Smart Ports |
| Network Capability | Standalone or Networked NX System |
| Mounting | Junction Box Mount |
| Certifications | UL 916, CAN/CSA C22.2 No. 205, Plenum Rated |
| Enclosure Type | Commercial Indoor |
| Weight | 0.27 kgs |
Information About NXRC-2R-UNV
The NXRC-2R-UNV is part of the Hubbell NX Room Controller series, developed to manage lighting loads in offices, classrooms, healthcare facilities, retail environments, and other commercial buildings. It operates as either a standalone controller or as part of a networked NX lighting control system, allowing communication with occupancy sensors, daylight sensors, wall stations, and centralized management software. Four Smart Ports provide plug-and-play connectivity for compatible NX control devices, reducing commissioning time and simplifying expansion. Its compact enclosure mounts directly to a junction box and is engineered for reliable long-term operation in indoor commercial environments.
Key Features:
- Dual Relay Outputs: Provides two independently controlled SPST switching outputs for separate lighting circuits.
- Universal Voltage Operation: Accepts 120/277 VAC input for flexible installation in commercial buildings.
- High Load Capacity: Supports lighting loads up to 20 A depending on load type.
- Smart Port Connectivity: Four Smart Ports allow direct connection of occupancy sensors, daylight sensors, and wall stations.
- Standalone or Networked Operation: Functions independently or as part of the NX Lighting Controls network.
- Energy Code Compliance: Supports occupancy, daylight harvesting, scheduling, and manual lighting control strategies.
- Compact Installation: Mounts directly to a standard junction box using an integrated chase nipple.
- LED Diagnostics: Built-in status indicators simplify commissioning and troubleshooting.
The NXRC-2R-UNV delivers the reliability and precision required for intelligent commercial lighting control and energy management systems.
