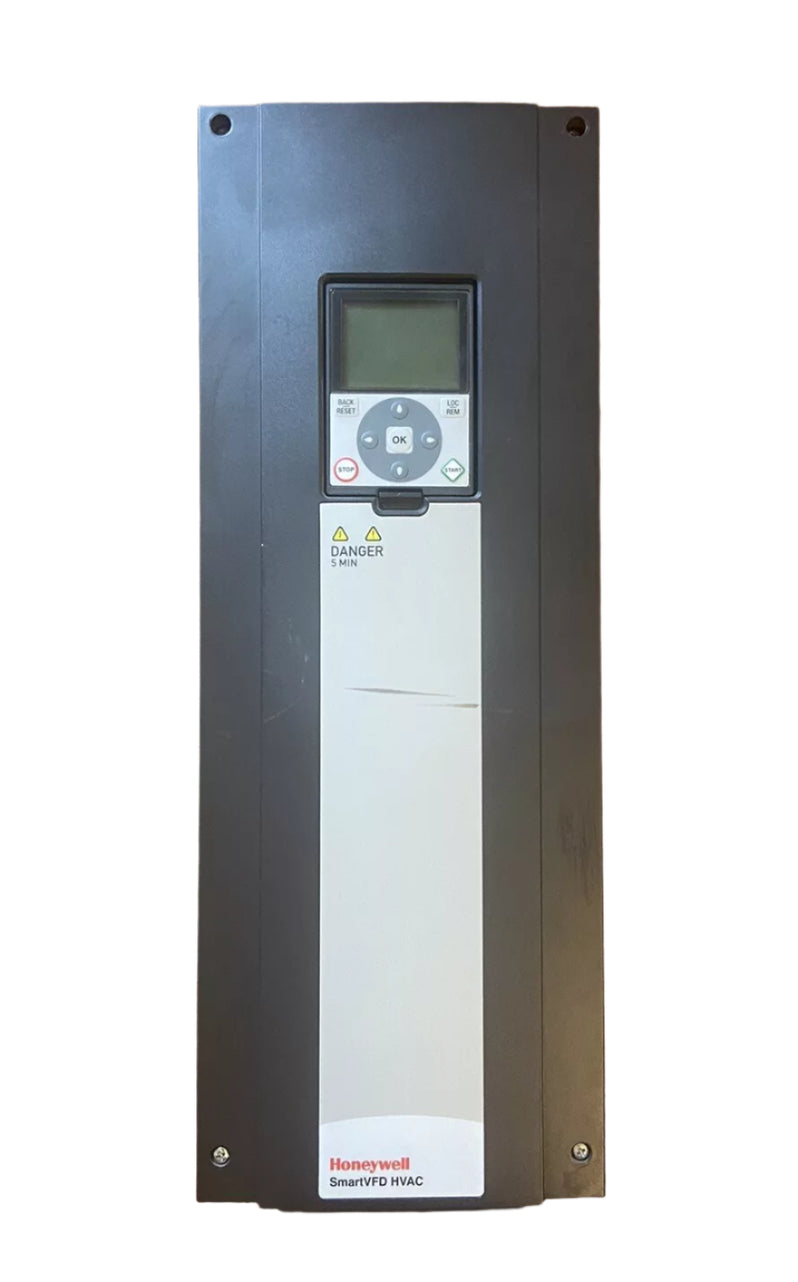

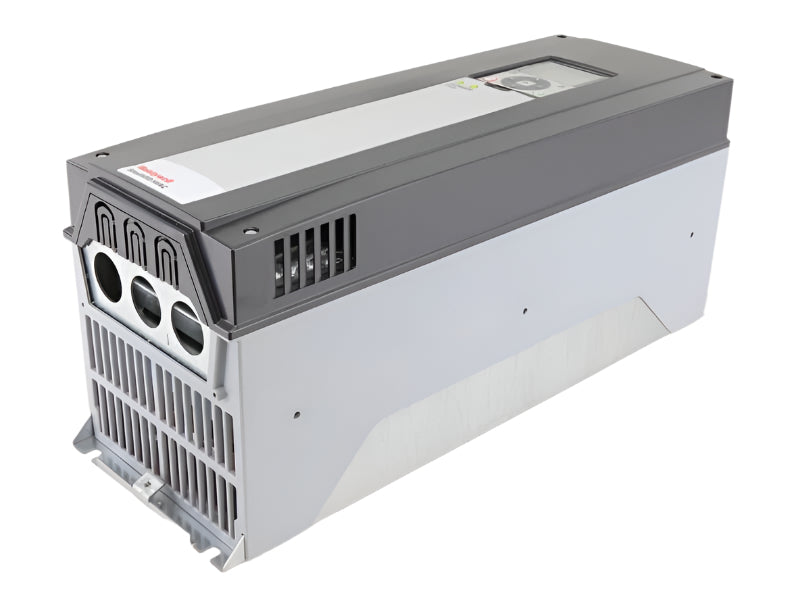

HVFDSD3C0400G100A | Honeywell Smart VFD HVAC Variable Frequency Drive
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HVFDSD3C0400G100A
Description
The Honeywell HVFDSD3C0400G100A, part of the SmartVFD HVAC series, is a 40‑HP / 480 VAC variable frequency drive (VFD) housed in a NEMA 1 enclosure. Engineered for commercial HVAC applications, it provides stepless motor speed control for fans, pumps, and compressors—delivering over 98% energy efficiency.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Drives
|
| Part Number | HVFDSD3C0400G100A |
| Subcategory | Drives |
| Drive Family | SmartVFD HVAC |
| Voltage Rating | 480 V, 3-Phase |
| Horsepower | 40 HP |
| Current Rating (Nominal) | 61 A |
| Continuous Output Current | 1.5× High overload (1 min/10 min); 1.1× Low overload (1 min/10 min) |
| Peak Current | 2× IN for 2 seconds (every 20 seconds) |
| Frame Type | 6 |
| Enclosure Type | NEMA 1 |
| Bypass Configuration | Drive Alone |
| Relay Outputs | Max: 250 VAC/2 A or 250 VDC/0.4 A |
| Analog Voltage Input | 0–10 VDC, 200 kΩ input impedance |
| Analog Current Input | 0(4)–20 mA, 250 Ω differential |
| Analog Current Output | 0(4)–20 mA, max load 500 Ω |
| Digital Output | Open collector, max. 48 V / 50 mA |
| Reference Output Voltage | Max load 10 mA |
| Auxiliary Voltage Output | ±20%, max. load 50 mA |
| RFI Filter Type | EMC Filter |
| Acceleration Time | 0.1 – 3000 seconds |
| Deceleration Time | 0.1 – 3000 seconds |
| Weight | 52.00 lbs |
Information About HVFDSD3C0400G100A
The HVFDSD3C0400G100A is a variable frequency drive (VFD) from Honeywell’s HVFDSD3 Series, designed for precision motor control in HVAC and industrial applications. Engineered for performance, reliability, and ease of integration, this 3-phase, 400 HP-rated VFD supports advanced motor control capabilities including both variable torque and constant torque loads. With its robust enclosure and integrated control features, the drive ensures optimal energy efficiency and system flexibility across a range of motor-driven systems.
Key Features:
- High-Power Performance: Rated for 400 HP at 480V, the HVFDSD3C0400G100A is designed for large-scale HVAC systems and industrial motors requiring robust power delivery and control.
- Integrated Bypass & Disconnect Options: Available with optional bypass and disconnect features for simplified installation and serviceability in critical applications where uptime is essential.
- Advanced Control Functions: Supports a wide array of motor types and includes PID control, automatic energy optimization, and built-in motor protection features for smooth and efficient operation.
- User-Friendly Interface: Equipped with a backlit LCD keypad offering multilingual support, parameter navigation, diagnostics, and real-time data feedback for easy setup and monitoring.
- Communication & Integration: Includes standard BACnet MS/TP and Modbus RTU support, with optional cards available for LonWorks®, Metasys® N2, and BACnet/IP to streamline BMS integration.
- Rugged Enclosure: Typically housed in NEMA 1 or NEMA 12 enclosures depending on configuration, the drive is built to handle harsh mechanical environments with enhanced thermal protection.
- Energy Efficiency: Ideal for energy savings in fan and pump applications, with features like sleep mode, catch-on-the-fly restart, and dynamic braking support.
The HVFDSD3C0400G100A is a powerhouse solution tailored for demanding HVAC and industrial motor applications. From mechanical rooms in commercial buildings to large process systems, it provides the intelligence and reliability expected of Honeywell’s premium drive solutions—ensuring long-term performance and cost efficiency.
