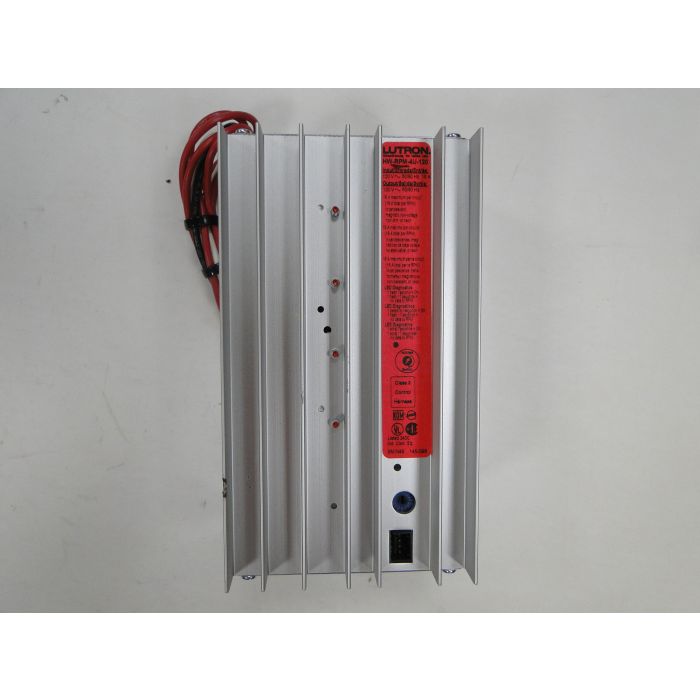

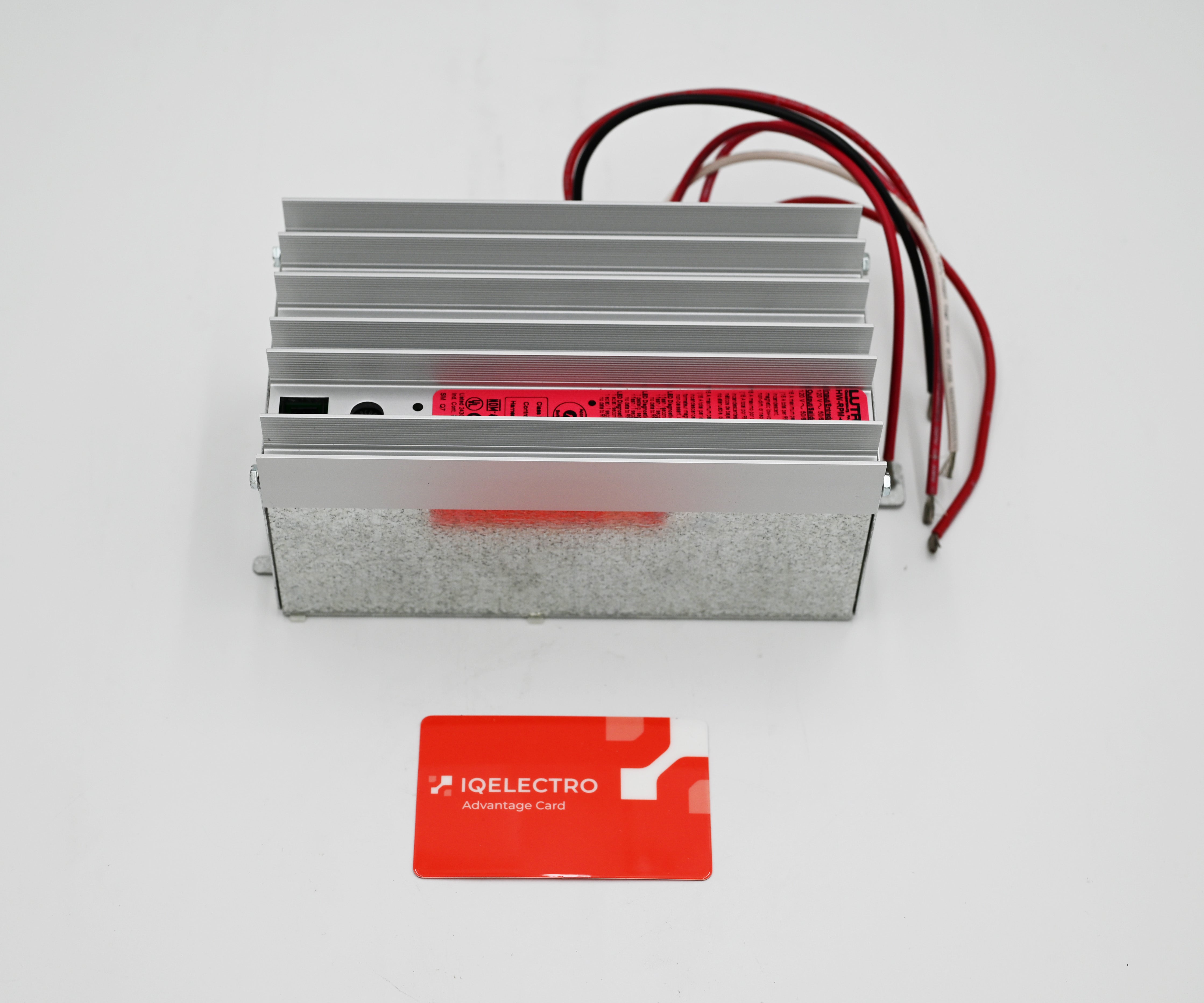

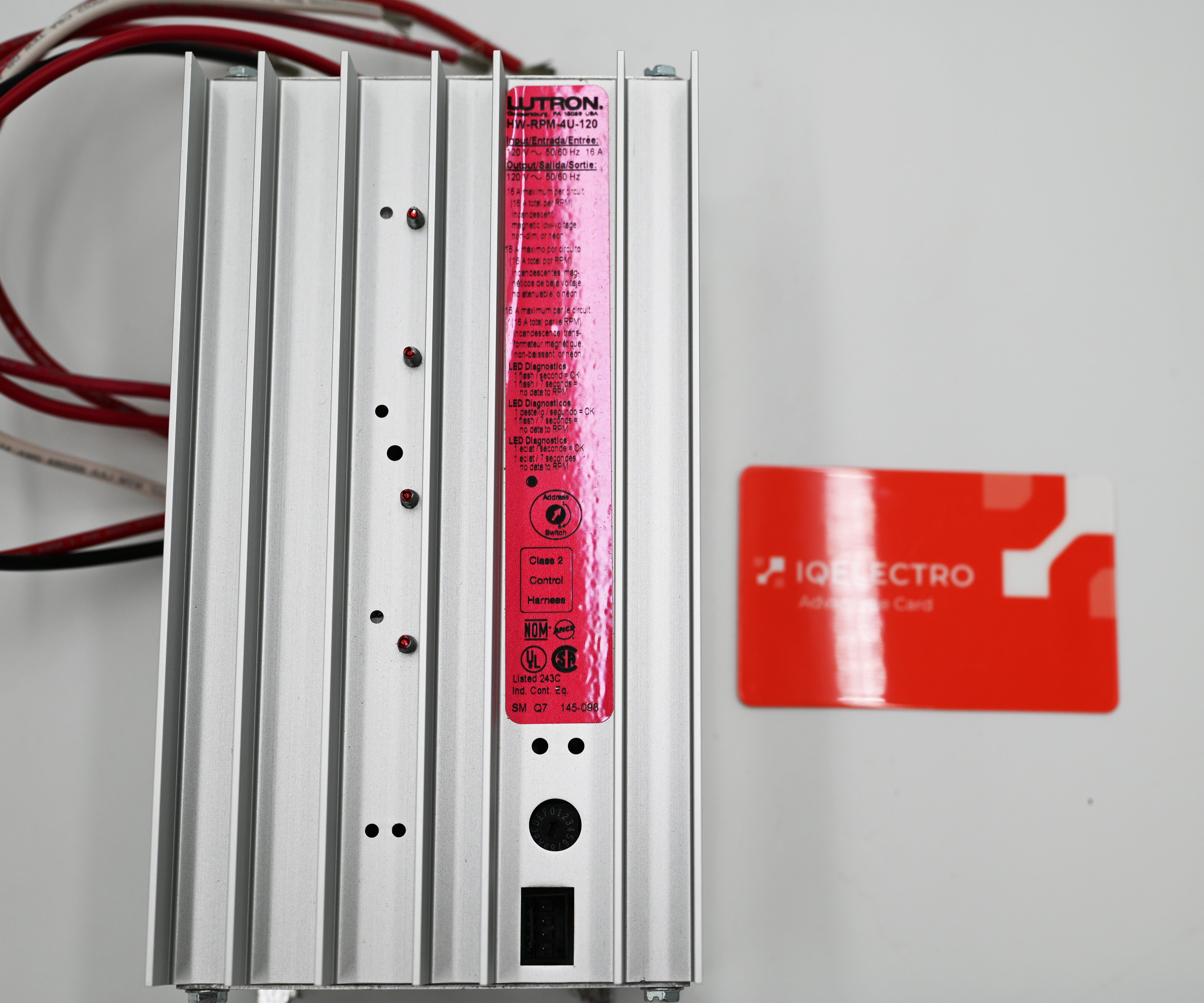

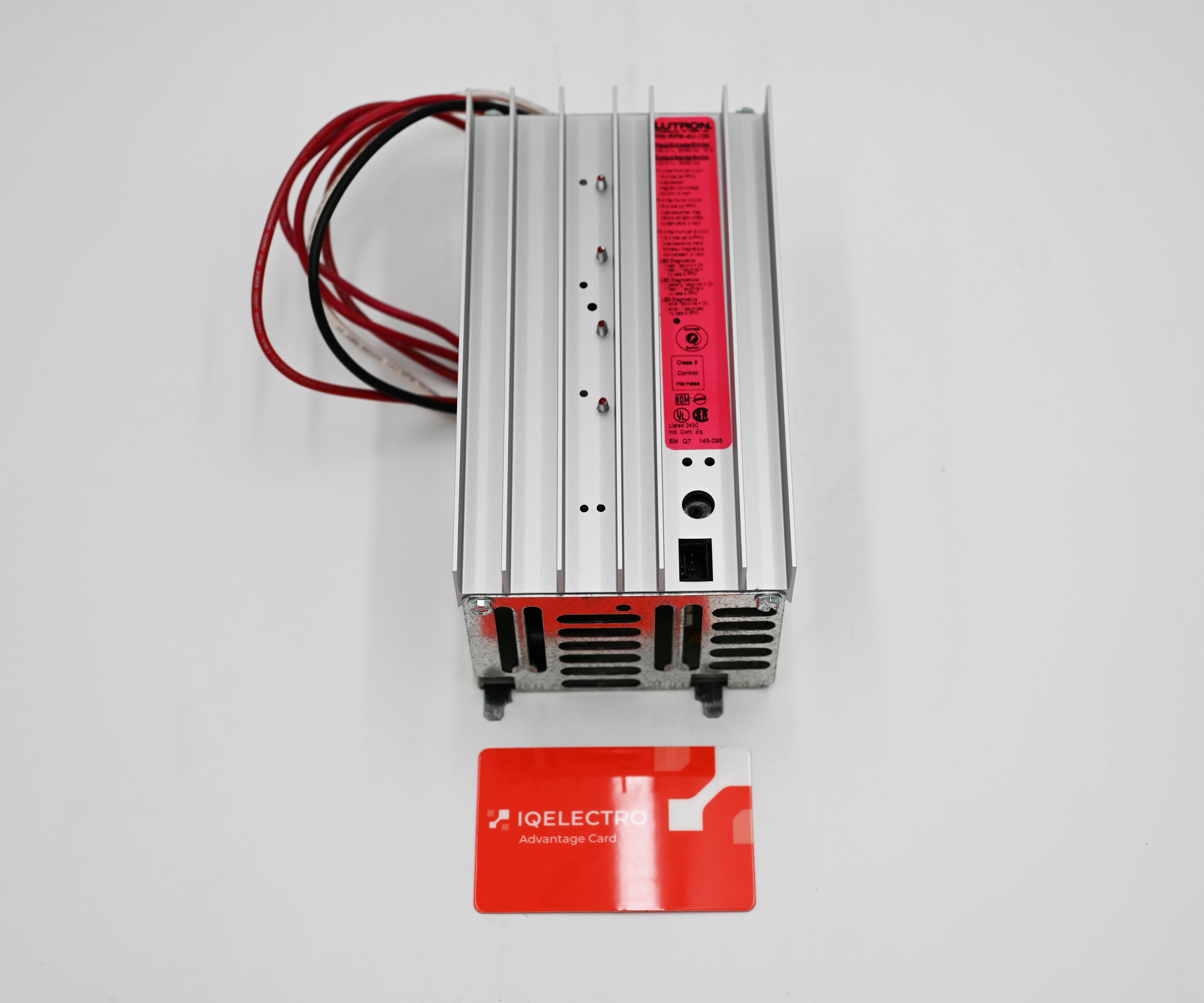

HW-RPM-4U-120 | Lutron Remote Power Module, 4-Zone, 120V
- Regular price
- $644.00
- Sale price
- $644.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HW-RPM-4U-120
Description
The Lutron HW-RPM-4U-120 is a 4-zone remote power module designed for integration into HomeWorks or HomeWorks Interactive lighting control panels. It supports independent dimming and switching of connected lighting circuits at 120V with a combined capacity of up to 16 amps. This unit is engineered for safe, modular installation with bypass jumpers and diagnostic feedback through onboard LEDs.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting
|
| Part Number | HW-RPM-4U-120 |
| Subcategory | Lighting Controller |
| System Compatibility | HomeWorks, HomeWorks Interactive |
| Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Total Load Capacity | 16 A (1920 W max) |
| Number of Circuits | 4 |
| Type | Remote Power Module (Dimmer/Switch) |
| Control Interface | 4-pin control harness |
| Operating Temperature | 0°C to 40°C |
| Installation Method | Panel-mounted in HW-PNL8, HWI-PNL-8/5 |
| Cooling Load | 70 BTU/hour |
| Power Consumption | 25 W |
| Status Indication | Diagnostic LED and address switch |
| Finish | Standard panel-mount module |
| Certifications | UL Listed, patented design |
| Weight | 3.00 lbs (approx. 1.36 kg) |
Information About HW-RPM-4U-120
The HW-RPM-4U-120 is a 4-circuit remote power module manufactured by Lutron for use in HomeWorks systems. It installs directly into Lutron HW-PNL8, HWI-PNL-8, or HWI-PNL-5 enclosures and connects to the processor via a control harness. This unit delivers reliable switching/dimming functionality, supports circuit-level diagnostics, and includes bypass jumpers to facilitate safe installation. The module handles 120V loads up to 16A total and features per-channel override options for system verification.
Key Features:
- 4 Independent Circuits: Controls four lighting loads individually for dimming or switching.
- 120V AC Operation: Designed for 120-volt residential and commercial lighting systems.
- High Load Capacity: Supports up to 16 amps total across all circuits (1920 watts).
- Bypass Jumpers: Includes five-position bypass jumpers to enable safe wiring and testing.
- Diagnostic LEDs: Built-in LEDs provide status feedback and communication verification.
- Addressing Flexibility: Adjustable address switch enables individual module configuration.
- Secure Control Integration: Connects to HomeWorks processor via dedicated 4-pin harness.
The HW-RPM-4U-120 provides safe, scalable lighting control for premium automation systems.
