HWI-H48 | Lutron Dimmer Interface Board
- Regular price
- $1,327.00
- Sale price
- $1,327.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HWI-H48
Description

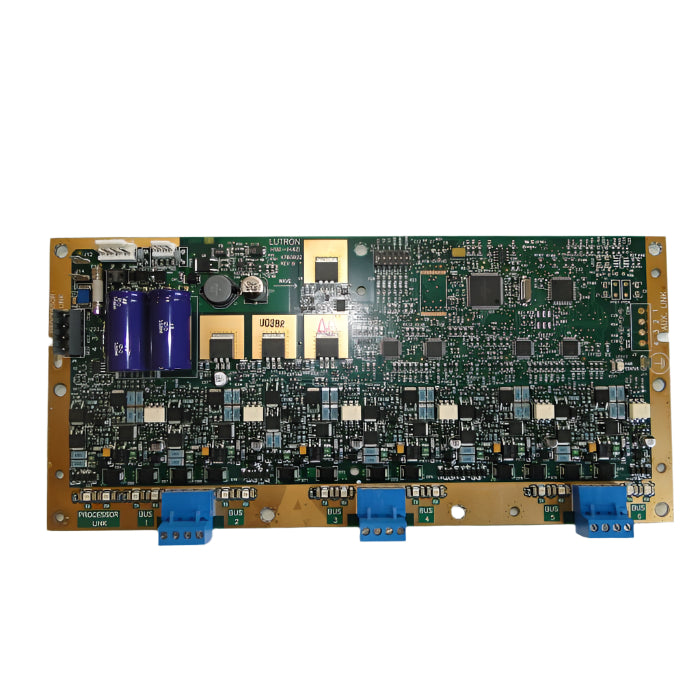

The HWI‑H48 is a Dimmer Interface Board by Lutron designed for the HomeWorks® lighting control system. It enables expansion by providing control of up to 48 wired Maestro® local lighting controls, either as a stand‑alone module or integrated within compatible HomeWorks processors.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Computers
|
| Part Number | HWI-H48 |
| Subcategory | Communication Extenders |
| Height | 5.00 in |
| Length | 14.00 in |
| Width | 9.00 in |
| Weight | 1.25 lbs |
| Control Capacity | Up to 48 Maestro wired local controls |
| Communication Buses | 6 buses (max 8 controls per bus) |
| Input Voltage | 12 V DC via power supply enclosure |
| Operating Environment | 32–104 °F (0–40 °C); 0–90% humidity non‑condensing |
| Max Link Length | Up to 1000 ft (305 m) total per bus |
| Diagnostics | LEDs and DIP‑switch addressing |
| Protection | Surge & miswire protection built-in |
Information About HWI-H48
The HWI-H48 is a Dimmer Interface Board developed by Lutron for the HomeWorks lighting control system. It enables reliable communication between HomeWorks processors and up to 48 wired Maestro local dimmers, allowing for centralized, scalable lighting control across large residential or commercial spaces. Available as a standalone module or integrated within HomeWorks processor enclosures, the HWI-H48 features robust diagnostic tools and supports flexible wiring topologies, making it an essential component for expanding wired lighting systems.
Key Features:
- High-Capacity Control: Supports up to 48 Maestro local controls across 6 buses (8 devices per bus).
- Flexible Installation: Available as a standalone board (in LV17 or LV32 enclosures) or integrated in HomeWorks processors.
- Reliable Communication: Uses Class 2 twisted-shielded wiring with support for star, daisy-chain, T-tap, or home-run topologies.
- Diagnostic LEDs: Includes heartbeat and communication indicators, plus DIP switches for addressing and setup.
- Long Wiring Distances: Allows up to 1,000 ft (305 m) of wire length per bus.
- Protected Hardware: Features surge protection and miswire/ESD protection per IEC and IEEE standards.
- Compact Design: Measures approximately 5.25″ × 11.25″, with simple enclosure integration.
- Environmental Rating: Operates in 32–104 °F (0–40 °C), 0–90% non-condensing humidity environments.
The HWI-H48 offers reliable, scalable control for advanced lighting applications, making it a key expansion element in high-end HomeWorks installations.
