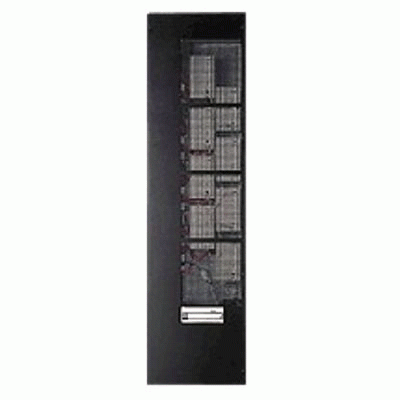

HWI-PNL-8 | Lutron HomeWorks Eight-Module Control Panel
- Regular price
- $857.00
- Sale price
- $857.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HWI-PNL-8
Description
The Lutron HWI-PNL-8 is an eight-module control panel designed to house and organize lighting control modules and processors. It supports line voltage wiring with a 2-amp rating and is constructed from durable 16-gauge galvanized steel. The panel includes DIN rail-mounted terminal blocks for secure electrical connections and features a black painted cover for corrosion resistance.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | HWI-PNL-8 |
| Subcategory | Control Panels |
| Series | HomeWorks |
| Enclosure Material | 16 Gauge Galvanized Steel |
| Voltage Rating | 120 V |
| Current Rating | 2 Amps |
| Frequency | 50/60 Hz |
| Conductor Size | 18–10 AWG |
| Mounting Type | DIN Rail |
| Dimensions | 14.375" x 59" x 4.125" (36.5 x 149.9 x 10.5 cm) |
| Ground Termination | 23 Points |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0% to 90% non-condensing |
| Certifications | UL Listed, CSA, NOM Certified |
| Weight | 18 lbs (8.6 kg) |
Information About HWI-PNL-8
The HWI-PNL-8 is part of Lutron’s HomeWorks series, built to accommodate up to eight control modules for advanced lighting management. The enclosure supports wiring with conductor sizes from 18 to 10 AWG and includes 23 ground termination points. It is designed for indoor use and meets UL, CSA, and NOM certification standards. The panel requires proper ventilation clearance and should be mounted using DIN rail methods for easy module installation and maintenance.
Key Features:
- Eight-Module Capacity: Supports up to eight control modules within one enclosure.
- Durable Enclosure: Made from 16-gauge galvanized sheet metal with a corrosion-resistant black painted cover.
- DIN Rail Mounting: Facilitates secure and organized installation of modules and terminal blocks.
- Terminal Blocks: Line voltage terminal blocks accept 18-10 AWG wire with bypass jumpers pre-installed.
- Safety Certified: UL Listed, CSA, and NOM certified for electrical safety and reliability.
- Amperage and Voltage: Rated for 2 amps and 120 volts suitable for residential and commercial lighting controls.
- Grounding Points: Includes 23 ground termination points for safe wiring practices.
- Ventilation Required: Air-cooled design requiring 12 inches clearance in front of the panel for heat dissipation.
The HWI-PNL-8 delivers the reliability and robustness required for centralized lighting control panel applications.
