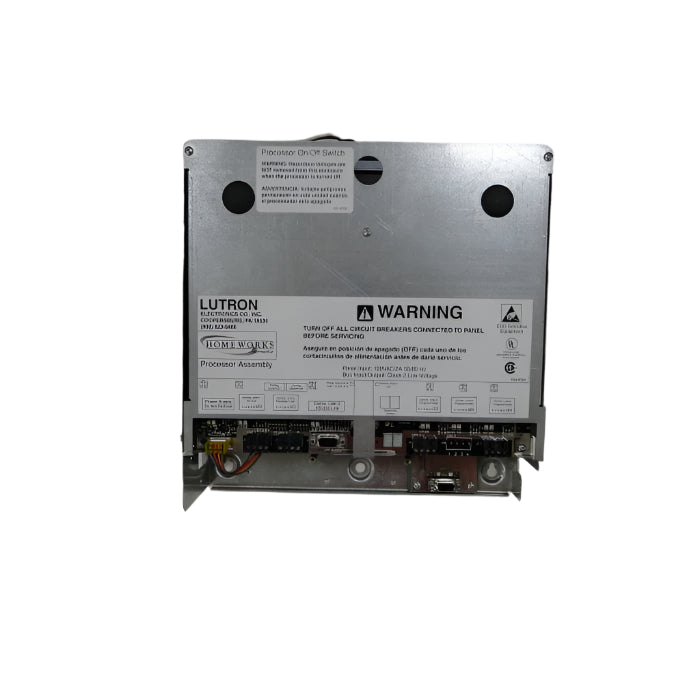

HWI-PO-120 | Lutron HomeWorks Interactive Processor
- Regular price
- $3,349.00
- Sale price
- $3,349.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HWI-PO-120
Description
The HWI-PO-120 is a wired lighting processor that mounts securely in an enclosure to manage HomeWorks lighting systems. It integrates multiple communication links for dimmer hubs, keypads, and inter-processor connections. This processor supports manual override and ensures reliable power retention during outages.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Controls
|
| Part Number | HWI-PO-120 |
| Subcategory | Processors |
| Mounting | Enclosure, three-screw install |
| Compatible Enclosure | HWI-LV32 |
| Communication Links | Links 1, 2, 3, 4, 5, 6, 7 (configurable) |
| Link Assignability | Links 4, 5, 6 configurable for Keypad, GRAFIK Eye, or H48 |
| Power Input | Factory-installed power feed harness |
| Serial Interface | RS232 via DB9 connectors |
| Manual Override | Toggle switch with wiring support |
| Battery Backup | Yes, supports memory and timeclock |
| Cable Length Support | LT-1 terminators for >50 feet cable runs |
| Weight | 1 lb. (0.45kg) |
Information About HWI-PO-120
The HWI-PO-120 is part of Lutron’s HomeWorks Wired Processor series, built for flexible installation inside HWI-LV32 enclosures. It is compatible with various HomeWorks modules including dimmer hubs and keypads, supporting extended control over lighting systems. Key technologies include configurable communication links and battery-backed memory to maintain settings during power interruptions. The processor is programmed and configured via the HomeWorks Utility software.
Key Features:
- Enclosure Mounting: Installs in HWI-LV32 using three screws for secure placement.
- Multiple Communication Links: Supports dimmer hubs, keypads, GRAFIK Eye presets, and inter-processor communication.
- Configurable Link Assignments: Links 4, 5, and 6 can be assigned for keypads, GRAFIK Eye, or H48 modules.
- Manual Override Support: Provides toggle switch functionality to manually control connected modules.
- Battery-Backed Memory: Maintains timeclock and settings during power outages.
- Power Input Harness: Connects easily to factory-installed power feed harnesses inside enclosures.
- RS232 Serial Ports: Allows system programming and external communications via DB9 connectors.
- Reliable Link Termination: Supports LT-1 link terminators or resistors for cable runs over 50 feet.
The HWI-PO-120 delivers the reliability and precision required for integrated home lighting automation and control.
