HWI-Q96 | Lutron HomeWorks Interface for Sivoia QED Shade Control
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HWI-Q96
Description

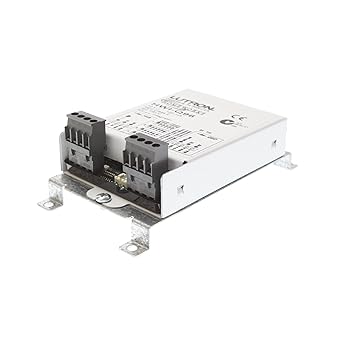

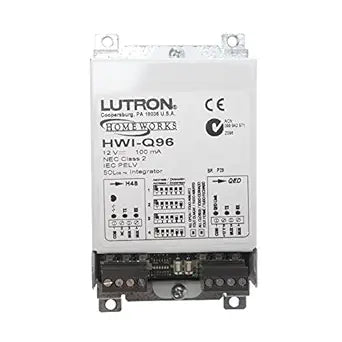

The Lutron HWI-Q96 is a HomeWorks system interface that enables seamless control of Sivoia QED electronic drive units (EDUs) for motorized window treatments. It facilitates addressing, diagnostics, and centralized management of multiple shades or draperies across large-scale lighting systems. Designed for robust communication and precise control, the HWI-Q96 ensures smooth operation within high-end residential or commercial lighting networks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting System Interfaces
|
| Part Number | HWI-Q96 |
| Subcategory | Shade Control Modules |
| System Compatibility | Lutron HomeWorks (H48/Q96 link) |
| Connected Devices | Sivoia QED Electronic Drive Units |
| Control Method | Wired Serial Link |
| Manual Operation | All Open / All Close Buttons |
| Voltage Input (Pin 2) | 10 to 32 VDC |
| MUX Voltage (Pin 3) | 2.8 to 4.2 VDC |
| MUX Voltage (Pin 4) | 0.8 to 1.8 VDC |
| Temperature Rating | 0°C to 40°C |
| Addressing Reset | Via QEDMOOB command |
| OS Upload Capability | Yes (forced upload with system override) |
| Visual Indicators | H48/Q96 Link Tx and Rx LEDs |
| Finish/Color | Standard Enclosure (panel-mounted) |
| Certifications | UL Listed, FCC, Lutron Tested |
| Weight | 1.6 lbs (approx. 0.73 kg) |
Information About HWI-Q96
The HWI-Q96 is a Lutron interface module designed to connect HomeWorks systems to Sivoia QED window shading products. It supports verification of EDU status, automatic addressing, system checks, and precise control using All Open/All Close commands. The unit integrates on the H48/Q96 communication link, ensuring proper operation through voltage and wiring diagnostics. It enables advanced shade management features, such as forced OS uploads and fault detection, and is essential for large or complex installations where both artificial and natural lighting need to be harmonized.
Key Features:
- HomeWorks Integration: Connects Sivoia QED shade EDUs to the HomeWorks processor via H48/Q96 link.
- Shade Detection: Identifies installed and powered shades; verifies via system software.
- Diagnostic Tools: Enables System Check and voltage readings to detect communication issues.
- Address Management: Supports addressing reset via QEDMOOB command for conflict resolution.
- Built-in Testing: All Open/All Close buttons allow basic operation check without programming.
- Firmware Uploads: Supports forced OS uploads for EDUs with invalid or missing firmware.
- Wiring Verification: Accepts voltage testing for each EDU pin; detects open/short circuits.
The HWI-Q96 provides dependable shade communication, control, and diagnostics within advanced lighting systems.
