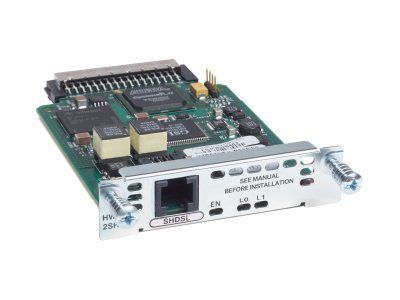

HWIC-2SHDSL | Cisco Router High-Speed WAN Interface Card
- Regular price
- $369.00
- Sale price
- $369.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: HWIC-2SHDSL
Description
The Cisco HWIC-2SHDSL is a High-Speed WAN Interface Card that provides two ports of G.SHDSL connectivity for Cisco integrated services routers.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | WAN Interface Modules |
| Part Number | HWIC-2SHDSL |
| Subcatecory |
Dual-Port G.SHDSL High-Speed WAN Interface Card (HWIC)
|
|
Interfaces/Ports
|
1 x RJ-11 G.SHDSL WAN |
|
Connectivity Media |
Copper G.SHDSL
|
| Data Transfer Rate | 4.61 Mbps G.SHDSL |
| Digital Signaling Protocol | SHDSL |
| Temperature |
32°F (0°C) to 104°F (40°C) Operating -4°F (-20°C) to 149°F (65°C) Storage |
| Humidity | 10% to 90% Non-condensing Relative Humidity |
| Dimensions | 0.7" Height x 2.8" Width x 4.0" Depth |
| Weight | 0.082 kgs |
Information About HWIC-2SHDSL
The Cisco HWIC-2SHDSL is a dual-port High-Speed WAN Interface Card designed for Cisco Integrated Services Routers, delivering business-class symmetrical DSL connectivity over standard copper infrastructure. Supporting G.SHDSL (ITU-T G.991.2) standards, this module offers up to 4.6 Mbps per port with dual-pair bonding support for increased throughput. It is ideal for secure and reliable WAN access in enterprise branch offices, service provider deployments, and environments requiring equal upstream and downstream bandwidth for services such as VoIP, video conferencing, and VPN.
Key Features:
- Type: High-Speed WAN Interface Card (HWIC)
- Series: Cisco ISR HWIC Modules
- Category: WAN Interface Modules
- Subcategory: Dual-Port G.SHDSL Interface Card
- Functionality: Provides two high-speed symmetrical DSL connections using G.SHDSL over copper wiring
- Port Count: 2 x G.SHDSL ports
- Interface Type: RJ-11 for DSL connections
- Media Type: Twisted pair copper (standard telephone lines)
- Throughput: Up to 2.3 Mbps per port (Annex A), up to 4.6 Mbps per port (Annex B); bonding supported
- Power Consumption: Low (powered by host router)
- Form Factor: Modular HWIC; fits into HWIC slots of supported routers
- Software Compatibility: Supported in Cisco IOS® with appropriate feature sets
- Operating Temperature Range: 0 °C to +40 °C (32 °F to 104 °F)
- Construction: Compact, integrated card with robust connector design
- Standards Compliance: ITU-T G.991.2 (Annex A and B), RoHS, CE, FCC
The Cisco HWIC-2SHDSL enables cost-effective, high-performance DSL-based WAN connectivity with symmetric bandwidth delivery. Its compact form factor and compatibility with a wide range of Cisco ISR platforms make it a practical solution for modern branch networks and service provider-managed services.
