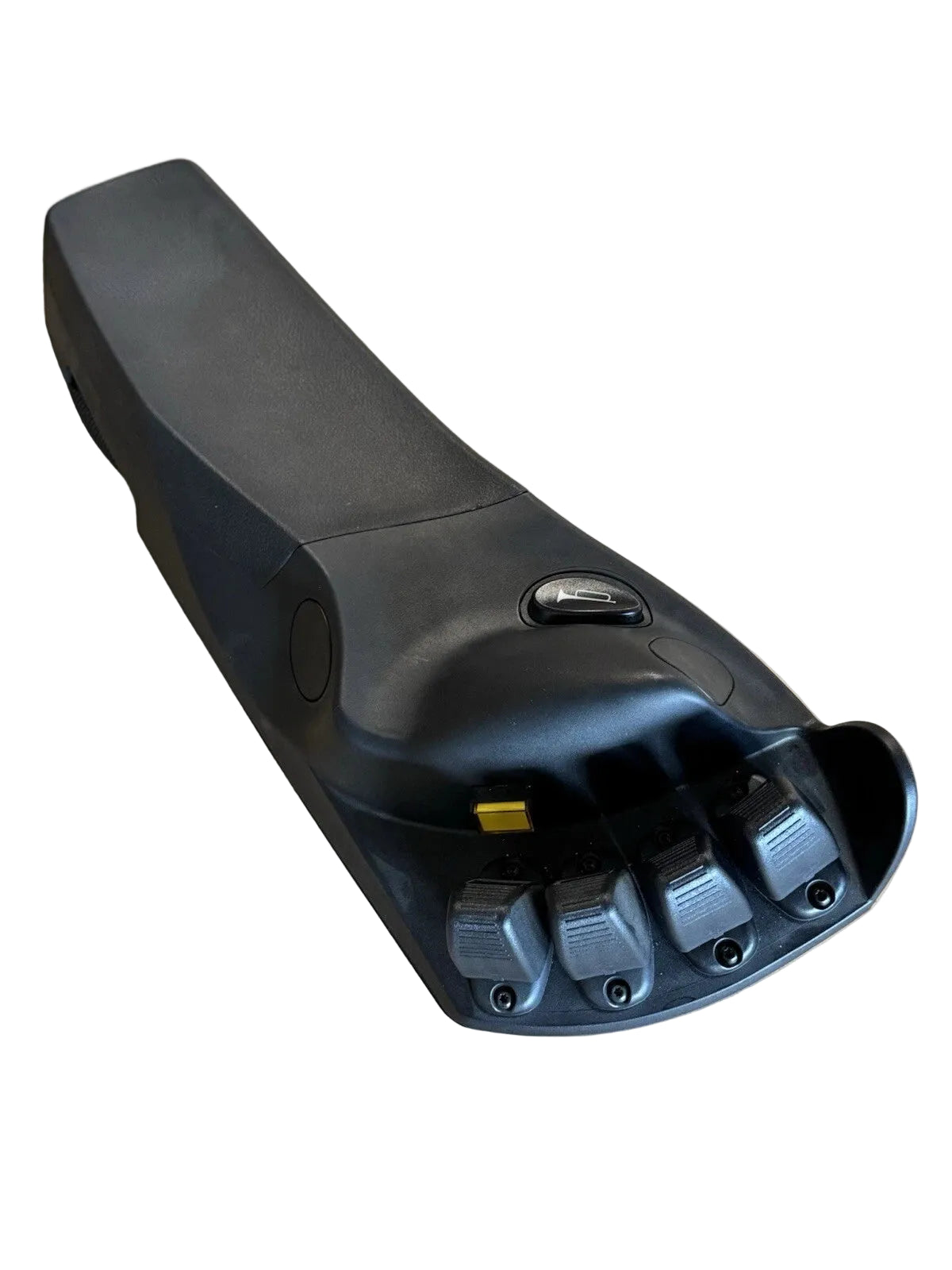

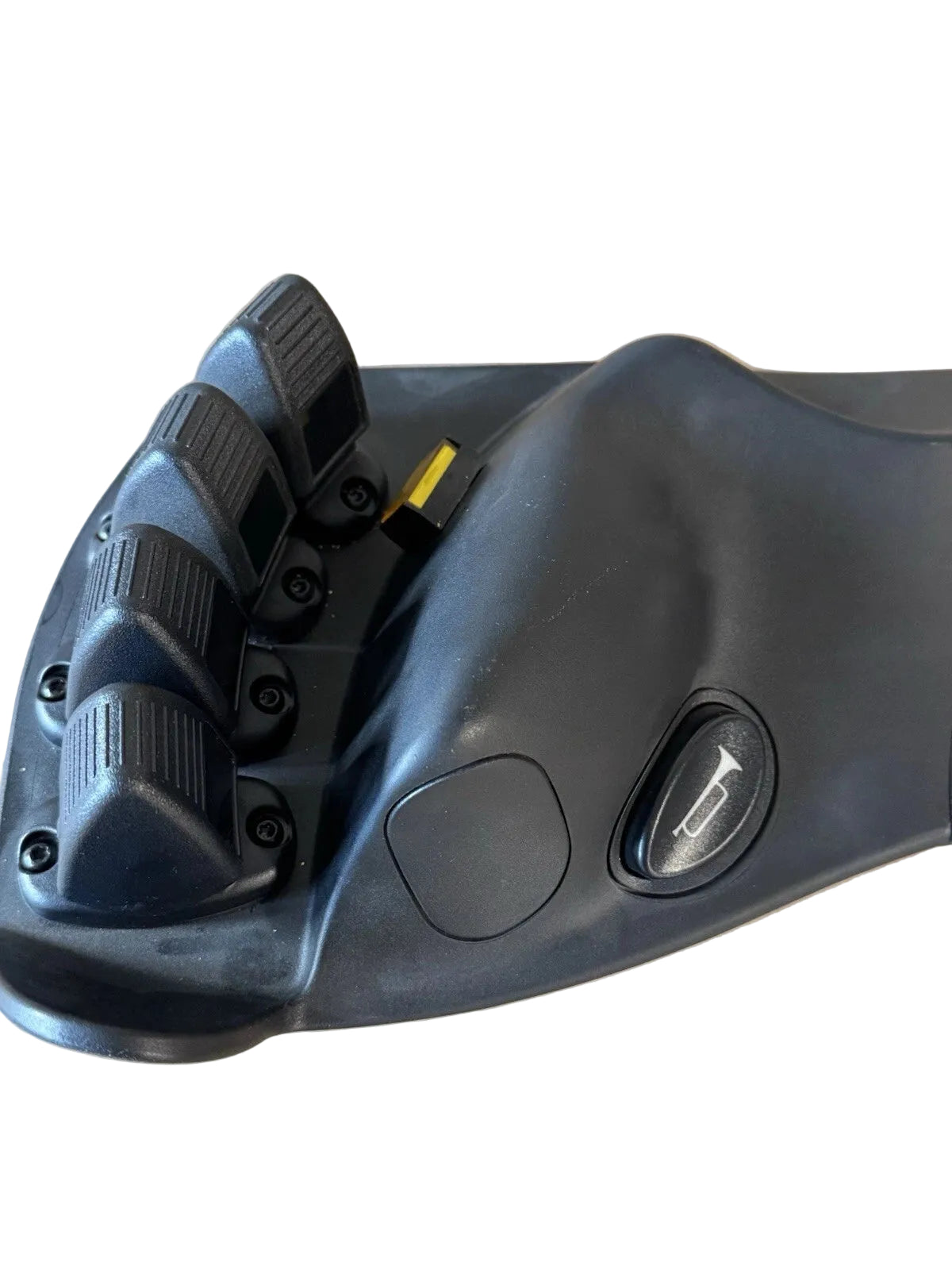

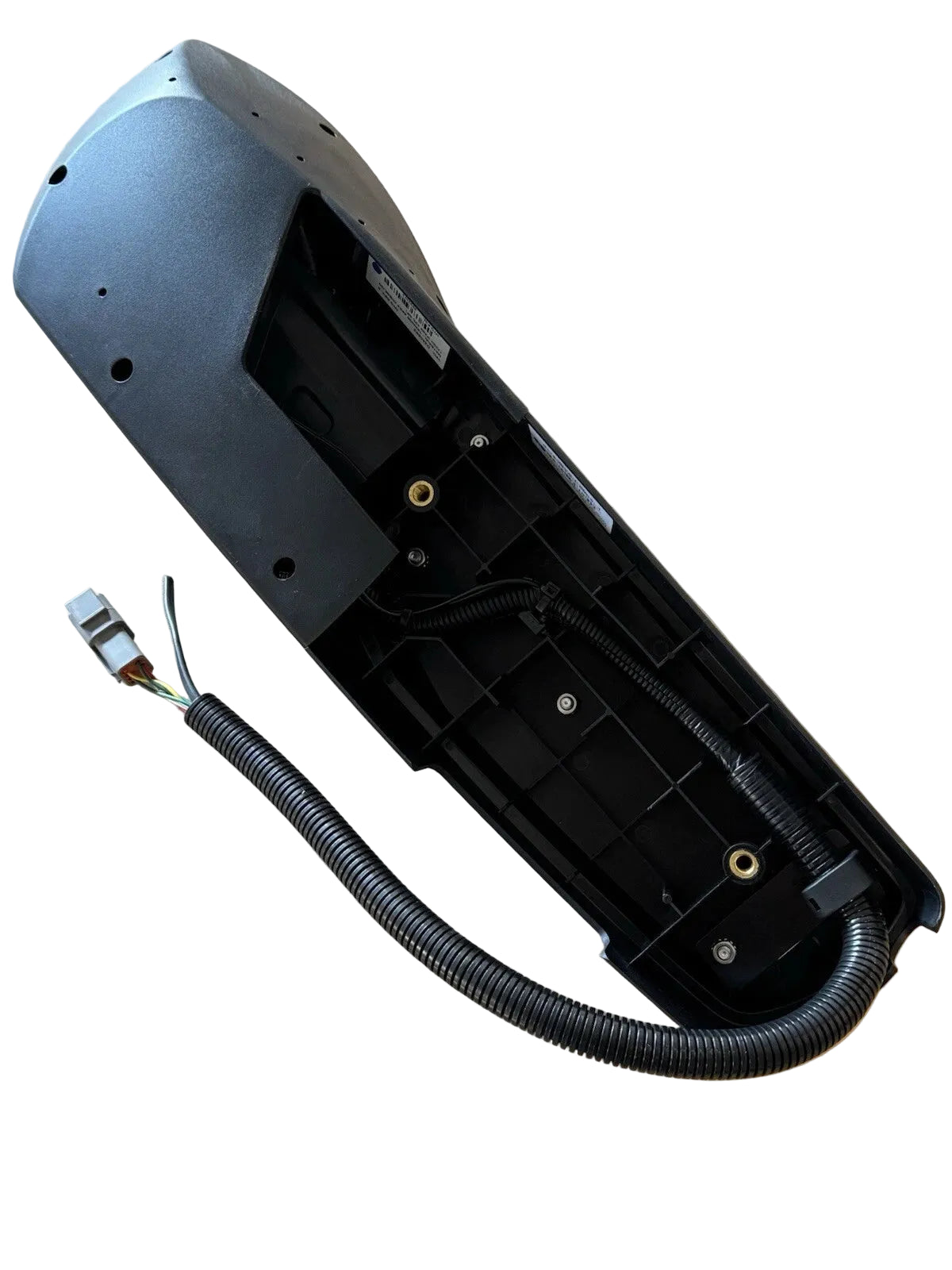

Hyster 4680566 4-Function Mini-Lever Armrest Control with 12V Auxiliary Harness
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 4680566
Description
Hyster 4680566 is a mini-lever armrest control assembly designed for electro-hydraulic forklift operation with four hydraulic functions. The console provides fingertip control of mast and attachment functions and includes provisions for a prewired 12V auxiliary switch circuit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hyster |
| Category | Forklift Controls |
| Part Number | 4680566 |
| Subcategory | Armrest Controllers |
| Part Type | Mini-Lever Armrest Control Assembly |
| Control Technology | Electro-Hydraulic |
| Control Interface | Mini-Levers |
| Hydraulic Functions | 4 |
| Mounting Location | Operator Armrest |
| Auxiliary Switch Voltage | 12V |
| Auxiliary Switch Provision | Prewired |
| Included Component | Auxiliary Switch Truck Harness |
| Primary Functions | Lift, Tilt, Side-Shift, Auxiliary Hydraulic Function |
| Compatible Equipment Make | Hyster / Yale |
| Weight | Approx. 2.20 lb (1.00 kg) |
Information About 4680566
The 4680566 is an electro-hydraulic mini-lever armrest control used in compatible Hyster and Yale material-handling equipment. Its four-function configuration provides electronic operator inputs for lift, tilt, side-shift, and an additional hydraulic function from the armrest-mounted control position. The assembly is prewired for a 12V auxiliary switch option and includes the associated auxiliary switch truck harness. The auxiliary switch operates with the supplied harness and is not intended to function as the fourth-function detent control.
Key Features:
- Mini-Lever Interface: Provides fingertip electro-hydraulic control from the forklift operator armrest.
- Four Hydraulic Functions: Configured to manage four separate hydraulic operating functions.
- 12V Auxiliary Circuit: Prewired to accommodate a compatible 12V auxiliary switch option.
- Included Harness: Supplied with the corresponding auxiliary switch truck wiring harness.
- Armrest Configuration: Positions hydraulic controls within convenient reach of the seated operator.
- Electronic Control Design: Replaces conventional mechanical lever inputs with compact electronic mini-levers.
- Attachment Control Support: Fourth hydraulic function can support compatible auxiliary forklift attachments.
- Application-Specific Wiring: Electrical configuration is designed to interface with matching Hyster/Yale control systems.
The 4680566 delivers the reliability and precision required for electro-hydraulic mast and attachment control in compatible material-handling equipment.
