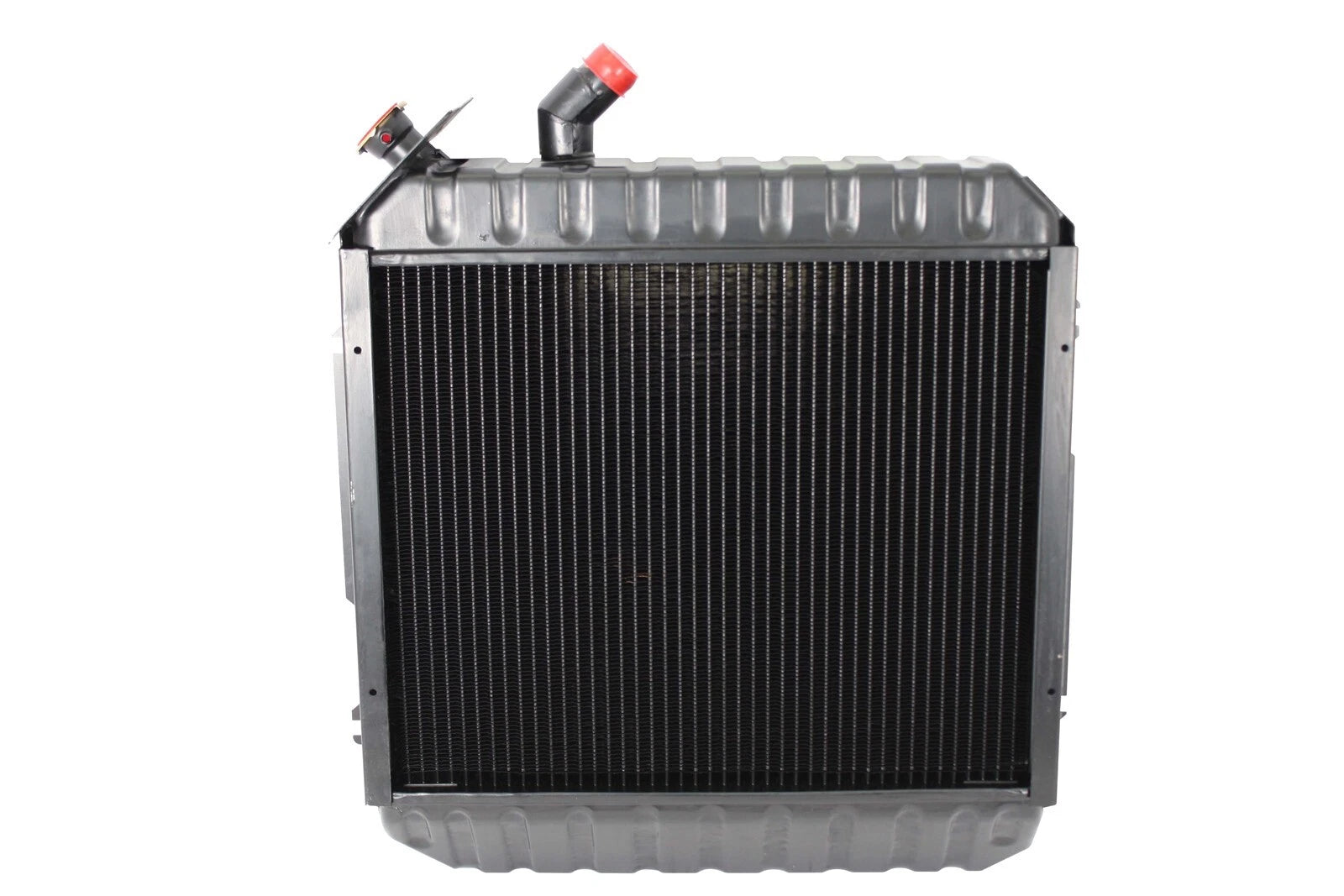

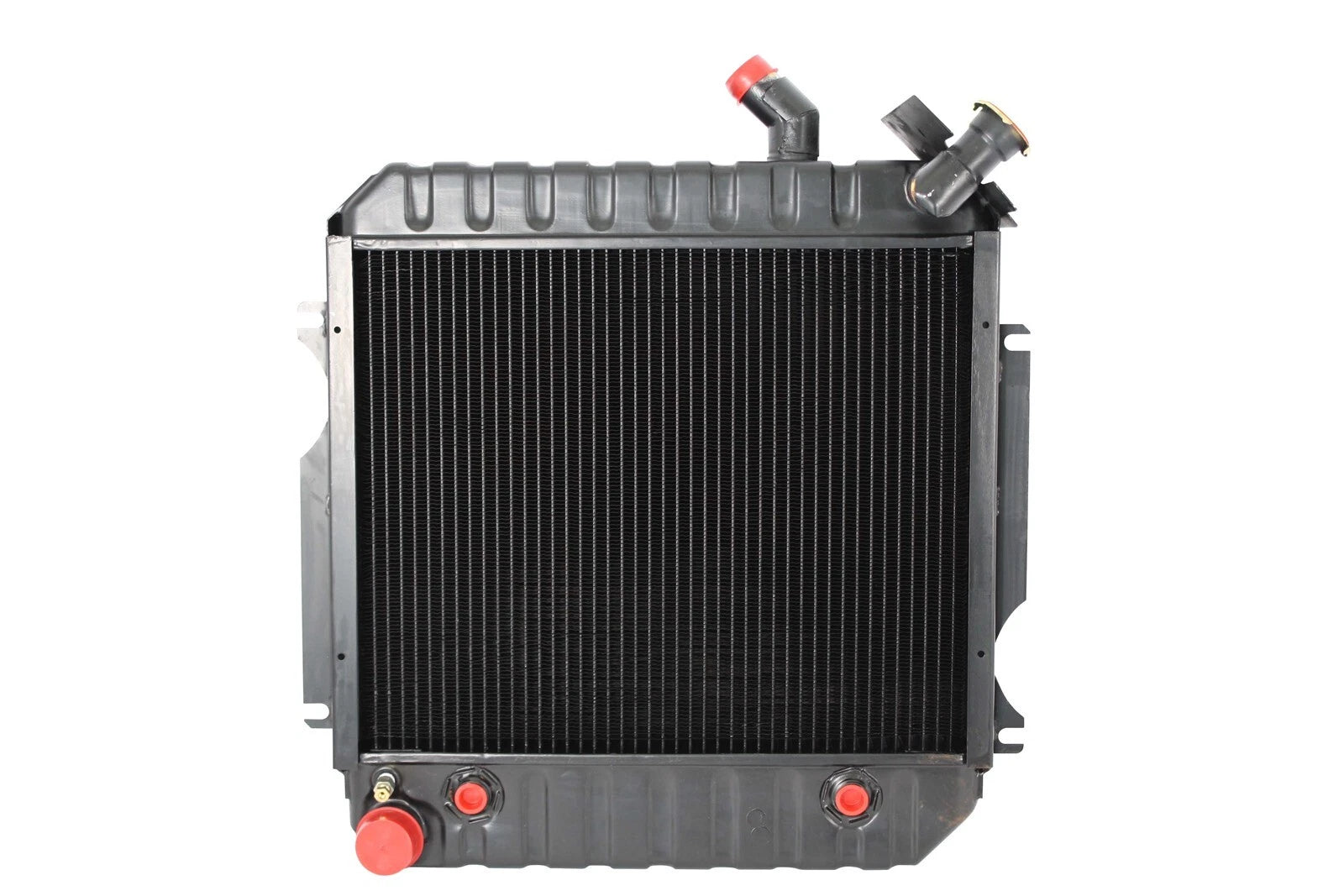

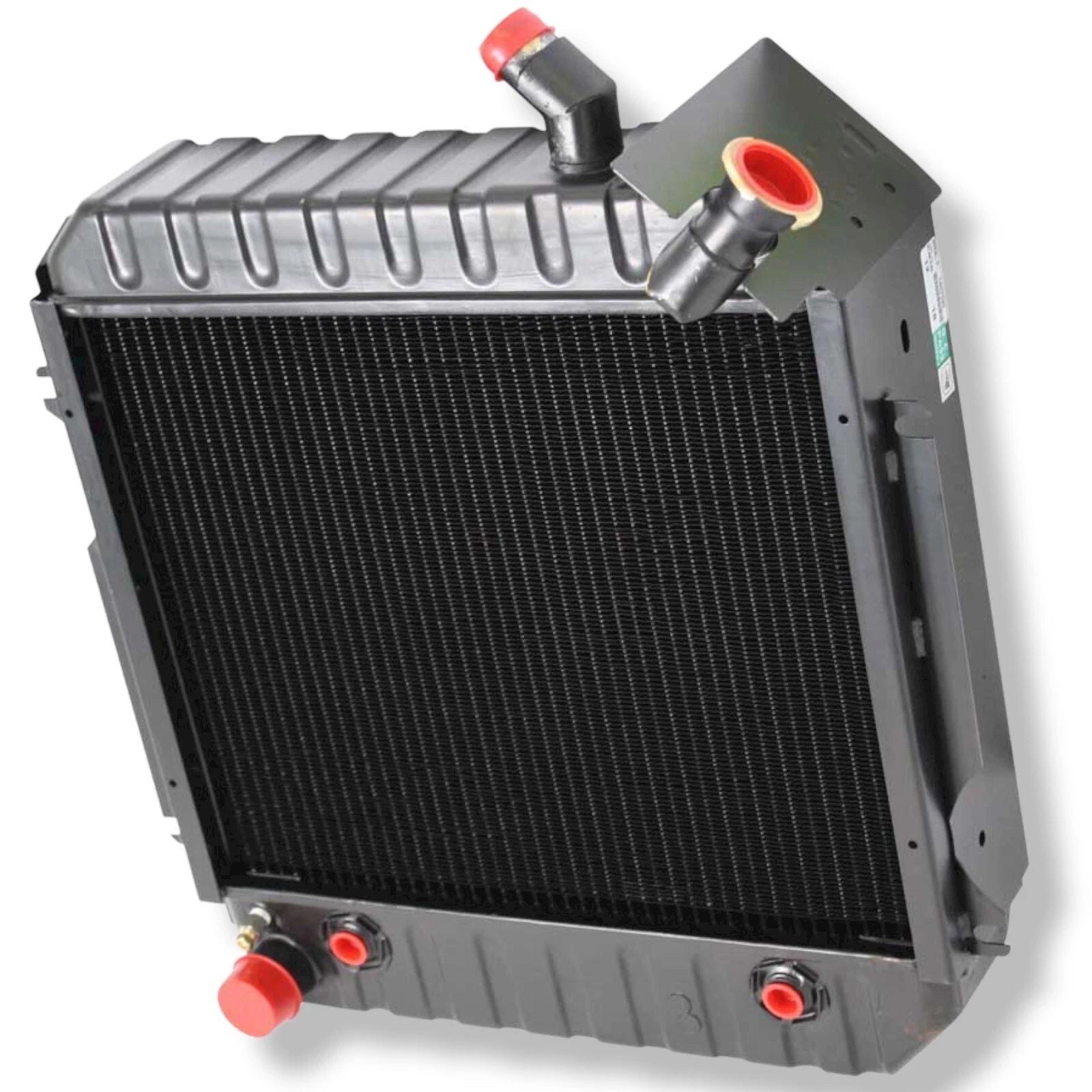

Hyster HY1452142 Copper-Brass Forklift Radiator with Oil Cooler
- Regular price
- $625.00
- Sale price
- $625.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HY1452142
Description
Hyster HY1452142 is a heavy-duty forklift radiator designed for the engine cooling system of compatible Hyster lift trucks. Its copper-brass construction and integrated transmission oil cooler support efficient heat transfer during continuous industrial operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Hyster |
| Category | Forklift Cooling Systems |
| Part Number | HY1452142 |
| Subcategory | Radiators |
| Part Type | Forklift Radiator |
| Alternate Part Number | 1452142 |
| Interchange Part Numbers | 1A17765, 1339821, 1387260 |
| Construction | Copper-Brass |
| Core Height | 15-3/4 in |
| Core Width | 19-1/2 in |
| Core Depth | 4 in |
| Tube Configuration | Inline Tubes |
| Fins Per Inch | 7 Flat Fins |
| Fill Neck | 1 in |
| Inlet Diameter | 1-1/2 in |
| Outlet Diameter | 1-3/4 in |
| Oil Cooler | 8-Plate, 12 in Centers |
| Overall Height | 22-1/8 in |
| Overall Width | 20-7/8 in |
| Overall Width Including Brackets | 23 in |
| Compatible Equipment Make | Hyster |
| Compatible Models | H70XL, H80XL, H90XL, H100XL, H110XL, H120XL |
| Weight | 36.50 lb (16.55 kg) |
Information About HY1452142
The HY1452142 radiator is a direct aftermarket replacement for Hyster part number 1452142 and several related references. It is designed primarily for Hyster XL and XL2 Series forklifts equipped with compatible gas or LP engine configurations. The radiator combines the engine coolant radiator and an 8-plate transmission oil cooler in one assembly.
Key Features:
- Copper-Brass Construction: All-metal radiator construction provides a durable structure for industrial cooling applications.
- High-Density Core: Uses a 15-3/4 × 19-1/2-inch cooling core with a 4-inch depth.
- Inline Tube Design: The core incorporates inline tubes for coolant circulation and heat transfer.
- Flat Fin Configuration: Seven flat fins per inch provide increased surface area for heat dissipation.
- Integrated Oil Cooler: Includes an 8-plate transmission oil cooler positioned on 12-inch centers.
- Defined Coolant Connections: Features a 1-1/2-inch inlet and 1-3/4-inch outlet for the specified cooling circuit.
- Direct Replacement Dimensions: Overall dimensions and mounting brackets are configured for compatible Hyster forklift installations.
- Multiple Part References: Cross-references HY1452142, 1452142, 1A17765, 1339821, and 1387260.
The HY1452142 delivers the reliability and precision required for engine and transmission cooling in compatible Hyster industrial forklifts.
