IC200CHS003L | General Electric Connector Style I/O Carrier

Description

Technical Specifications

Information About IC200CHS003L

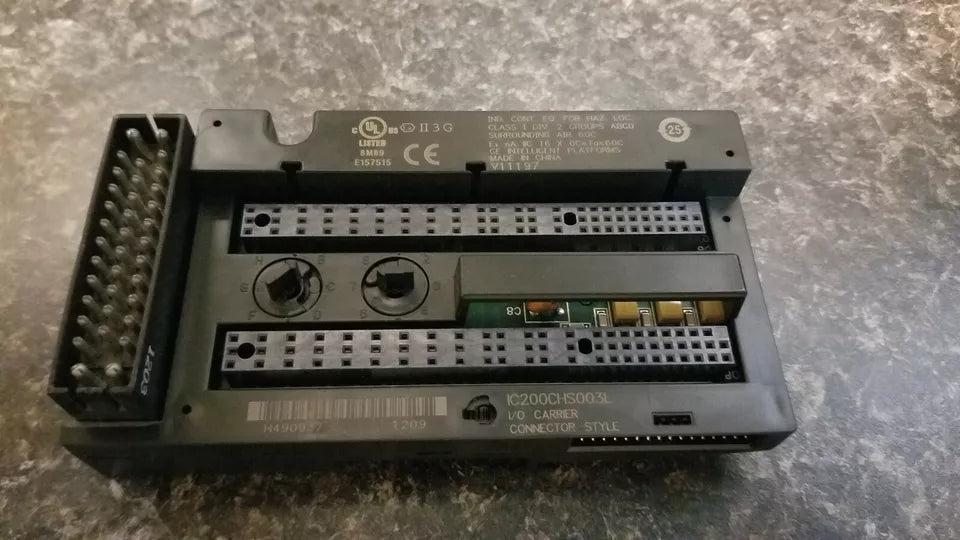

The GE Fanuc IC200CHS003L is a connector-style I/O carrier designed as part of the Versamax series, offering a reliable and efficient interface for connecting input/output (I/O) modules within industrial automation systems. This product is engineered to meet the demands of modern control systems, providing robust performance in environments where reliability, ease of installation, and flexibility are critical.

Measuring 2.63 x 5.25 inches, the IC200CHS003L is compact in size, making it suitable for applications where space is at a premium. Despite its small footprint, this I/O carrier is built to handle significant electrical loads, with a current rating of 2 amps per point and 8 amps per power and ground. These specifications ensure that the IC200CHS003L can support a wide range of I/O modules, from low-power sensors to more power-intensive devices, providing the versatility needed for diverse automation tasks.

The IC200CHS003L features a 36-pin connector, a standard in industrial applications, allowing for secure and reliable connections between the I/O modules and the control system. The connector design is optimized for durability and ease of use, ensuring that the carrier can withstand repeated connections and disconnections without degradation in performance. This is particularly important in industrial environments where maintenance and module replacements are common, and where reliable connections are essential to maintain system integrity.

Mounting the IC200CHS003L is straightforward, thanks to its DIN rail compatibility. DIN rail mounting is a widely used standard in industrial control systems, offering a secure and stable platform for installing components like the IC200CHS003L. The ease of installation provided by DIN rail mounting not only reduces setup time but also simplifies future modifications or expansions of the control system. This feature is especially beneficial in dynamic industrial settings where system configurations may need to be adjusted or expanded frequently.

The I/O module mounting on the IC200CHS003L is designed to be vertical, which optimizes the use of space within control cabinets and enclosures. Vertical mounting allows for better organization of the modules, making them easier to access and manage. This orientation also aids in improving airflow within the enclosure, potentially reducing heat buildup and contributing to the longevity and reliability of the electronic components housed within.

One of the key electrical characteristics of the IC200CHS003L is its ability to handle maximum voltage transients of up to 300 volts AC. This capacity to withstand voltage spikes is crucial in industrial environments where electrical surges can occur due to various factors, such as switching operations, lightning strikes, or other power disturbances. By accommodating such transients, the IC200CHS003L helps protect the connected I/O modules and the overall control system from potential damage, thereby enhancing the reliability and safety of the entire automation setup.

The IC200CHS003L is an integral component of the GE Fanuc Versamax series, a well-regarded family of products known for their durability and performance in industrial automation. This I/O carrier is designed to integrate seamlessly with other Versamax components, providing a cohesive and unified control system. The compatibility within the Versamax series ensures that users can build and expand their systems with confidence, knowing that each component will work together efficiently and effectively.

In addition to its technical capabilities, the IC200CHS003L is designed with practicality in mind. The connector-style design simplifies the process of connecting and disconnecting modules, which is particularly useful during maintenance or when system upgrades are required. This design approach minimizes downtime and ensures that the system can be quickly brought back online after any necessary interventions.

The combination of a compact form factor, robust electrical specifications, and ease of installation makes the GE Fanuc IC200CHS003L an excellent choice for a wide range of industrial automation applications. Whether used in manufacturing, processing, or other control environments, this connector-style I/O carrier delivers the performance and reliability required to support critical operations. Its ability to handle high currents and voltage transients, along with the flexibility offered by its vertical mounting and DIN rail compatibility, ensures that it can meet the demanding needs of modern automation systems.

Overall, the IC200CHS003L offers a reliable, efficient, and easy-to-use solution for managing I/O connections within an industrial control system, making it an indispensable part of any Versamax-based automation setup.
