Part #: IC200MDL940 Manufactured by: Ge Fanuc
Regular price
$222.00
Sale price
$222.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The GE Fanuc IC200MDL940 is a Versamax PLC relay output module designed for operation in a Class 1 Division 2 rated indust...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: IC200MDL940
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Ge Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: IC200MDL940

Description / Specifications

Description

The IC200MDL940 is a 16-point relay output module from the VersaMax I/O series, initially produced by GE Intelligent Platforms and now under Emerson Automation. This module features sixteen (16) individually isolated Normally Open (N.O.) Form A contacts. It supports an output voltage range of 0 to 125VDC and nominal voltages of 5/24/125VDC. Additionally, it can handle an AC voltage range of 0 to 265VAC (47 to 63Hz) with nominal voltages of 120/240VAC. The module has an output contact rating of 2.0 Amperes, making it suitable for various industrial applications.



Technical Specifications



Brand GE FANUC
Category PLCs/Machine Control
Part Number IC200MDL940
Subcategory PLC Module/Rack
Series Versamax
Manufacturer GE Intelligent Platforms (Former); Emerson Automation (Current)
Description PLC relay output
Product Description Relay Output Module
Voltage 24 V DC/ 120-240 Volts AC
No. of channels 16
Current 2 Amperes
Points 16
Output contact form Normally Open (Form A)
Temperature 0-60 degrees Celsius
Switching frequency 20 cycles per minute
Input to Logic Isolation 250 Volts AC
Relay Type Fixed coil, moving armature
Input to Frame Isolation 1500 Volts AC for 60 sec.
Contact Type Silver alloy
Output Voltage Drop 0.3 Volts maximum
Output signal, nominal 5/24/125VDC; 120/240VAC
Load Current 10 milliamperes
Output signal, range 0 to 125VDC; 0 to 265VAC (47 to 63Hz)
Contact current rating 10mA per point minimum; 2.0A for 5 to 265VAC maximum (resistive); 2.0A for 5 to 30 VDC maximum (resistive); 0.2A for 31 to 125 VDC maximum (resistive)
Current Draw 490 mA, maximum
Isolation User input to logic (optical) and frame ground: 250VAC continuous; 1500VAC for 1 minute Group to group: 250VAC continuous; 1500VAC for 1 minute
Output grouping Individually isolated
Output response time 10 ms, maximum





Information About IC200MDL940

The IC200MDL940 is a relay output module from the VersaMax I/O platform by Emerson Automation, formerly GE Fanuc. This module features sixteen (16) individually isolated Normally Open (N.O.) Form A relay output contacts. It supports output voltages ranging from 0 to 125VDC with nominal voltages of 5/24/125VDC, and from 0 to 265VAC (47 to 63Hz) with nominal voltages of 120/240VAC. Each contact has an output rating of 2.0 Amperes. The built-in channel-to-channel isolation allows each contact output to be wired to different voltage sources to energize corresponding electrical devices. The module’s embedded relay is a fixed coil, moving armature type with contacts made of silver alloy.

This module is suitable for energizing output devices such as relay coils, solenoid-actuated instruments, pilot lamps, and other instruments. It lacks internal snubber circuits or protection fuses, so external protection may be installed by the user. The IC200MDL940 does not exhibit output leakage current, as the contact outputs are in an open state when not activated. Each output channel has a response time of 10 milliseconds for both open-to-close and close-to-open contact changeover. The maximum switching frequency for each output contact is 20 cycles per minute when used with inductive loads. Individual channel status indicators depict the operational state of each output channel.

The IC200MDL940 has a maximum backplane current draw of 490mA and requires an external power supply rated 0 to 125VDC, 5/24/125VDC nominal, and 0 to 265VAC (47 to 63Hz), with 120/240VAC nominal supply voltage.

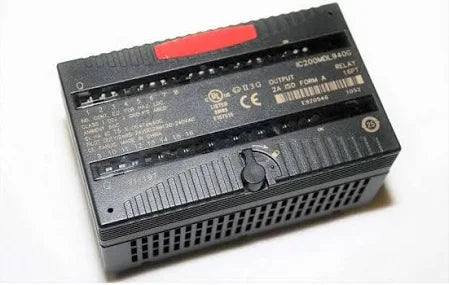

This module is designed for use in Class 1, Division 2 rated environments, with an operating temperature range of 0 to 60 degrees Celsius. It meets various environmental and industrial standards, including CE and cULus. Each output point is isolated, and the module operates with a voltage rating of 24VDC and 120 to 240VAC, with a current rating of 2 Amps. The front section includes a lock/unlock lever and LED indicators for each point.


Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The IC200MDL940 is a 16-point relay output module from the VersaMax I/O series, initially produced by GE Intelligent Platforms and now under Emerson Automation. This module features sixteen (16) individually isolated Normally Open (N.O.) Form A contacts. It supports an output voltage range of 0 to 125VDC and nominal voltages of 5/24/125VDC. Additionally, it can handle an AC voltage range of 0 to 265VAC (47 to 63Hz) with nominal voltages of 120/240VAC. The module has an output contact rating of 2.0 Amperes, making it suitable for various industrial applications.



Technical Specifications



Brand GE FANUC
Category PLCs/Machine Control
Part Number IC200MDL940
Subcategory PLC Module/Rack
Series Versamax
Manufacturer GE Intelligent Platforms (Former); Emerson Automation (Current)
Description PLC relay output
Product Description Relay Output Module
Voltage 24 V DC/ 120-240 Volts AC
No. of channels 16
Current 2 Amperes
Points 16
Output contact form Normally Open (Form A)
Temperature 0-60 degrees Celsius
Switching frequency 20 cycles per minute
Input to Logic Isolation 250 Volts AC
Relay Type Fixed coil, moving armature
Input to Frame Isolation 1500 Volts AC for 60 sec.
Contact Type Silver alloy
Output Voltage Drop 0.3 Volts maximum
Output signal, nominal 5/24/125VDC; 120/240VAC
Load Current 10 milliamperes
Output signal, range 0 to 125VDC; 0 to 265VAC (47 to 63Hz)
Contact current rating 10mA per point minimum; 2.0A for 5 to 265VAC maximum (resistive); 2.0A for 5 to 30 VDC maximum (resistive); 0.2A for 31 to 125 VDC maximum (resistive)
Current Draw 490 mA, maximum
Isolation User input to logic (optical) and frame ground: 250VAC continuous; 1500VAC for 1 minute Group to group: 250VAC continuous; 1500VAC for 1 minute
Output grouping Individually isolated
Output response time 10 ms, maximum





Information About IC200MDL940

The IC200MDL940 is a relay output module from the VersaMax I/O platform by Emerson Automation, formerly GE Fanuc. This module features sixteen (16) individually isolated Normally Open (N.O.) Form A relay output contacts. It supports output voltages ranging from 0 to 125VDC with nominal voltages of 5/24/125VDC, and from 0 to 265VAC (47 to 63Hz) with nominal voltages of 120/240VAC. Each contact has an output rating of 2.0 Amperes. The built-in channel-to-channel isolation allows each contact output to be wired to different voltage sources to energize corresponding electrical devices. The module’s embedded relay is a fixed coil, moving armature type with contacts made of silver alloy.

This module is suitable for energizing output devices such as relay coils, solenoid-actuated instruments, pilot lamps, and other instruments. It lacks internal snubber circuits or protection fuses, so external protection may be installed by the user. The IC200MDL940 does not exhibit output leakage current, as the contact outputs are in an open state when not activated. Each output channel has a response time of 10 milliseconds for both open-to-close and close-to-open contact changeover. The maximum switching frequency for each output contact is 20 cycles per minute when used with inductive loads. Individual channel status indicators depict the operational state of each output channel.

The IC200MDL940 has a maximum backplane current draw of 490mA and requires an external power supply rated 0 to 125VDC, 5/24/125VDC nominal, and 0 to 265VAC (47 to 63Hz), with 120/240VAC nominal supply voltage.

This module is designed for use in Class 1, Division 2 rated environments, with an operating temperature range of 0 to 60 degrees Celsius. It meets various environmental and industrial standards, including CE and cULus. Each output point is isolated, and the module operates with a voltage rating of 24VDC and 120 to 240VAC, with a current rating of 2 Amps. The front section includes a lock/unlock lever and LED indicators for each point.


Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
