IC3600ADAD1 | General Electric Speedtronic Diode D/A Converter Board

Description

IC3600ADAD1A is a Diode D/A Converter Board manufactured by General Electric Fanuc as part of the Mark II series used in gas turbine control management systems. With some processes having single or double redundancies built-in to ensure reliability and safe machine operation, the Mark II utilized integrated circuits and microprocessors to carry out control, sequencing, and protection duties.

Technical Specifications

Information About IC3600ADAD1

The IC3600ADAD1 is a FANUC Diode Converter Card D/A manufactured by GE for the Mark I/Mark II series. These series were the first of GE’s Speedtronic gas and steam turbine management systems, rated for use on units and systems from 4000 hp (a single unit) to 400 Mw (combined cycles.) The MKI/MKII used integrated circuits and microprocessors to carry out control, sequencing and protective functions, with some processes having single or double redundancies built in to assure reliability and safe machine operation.

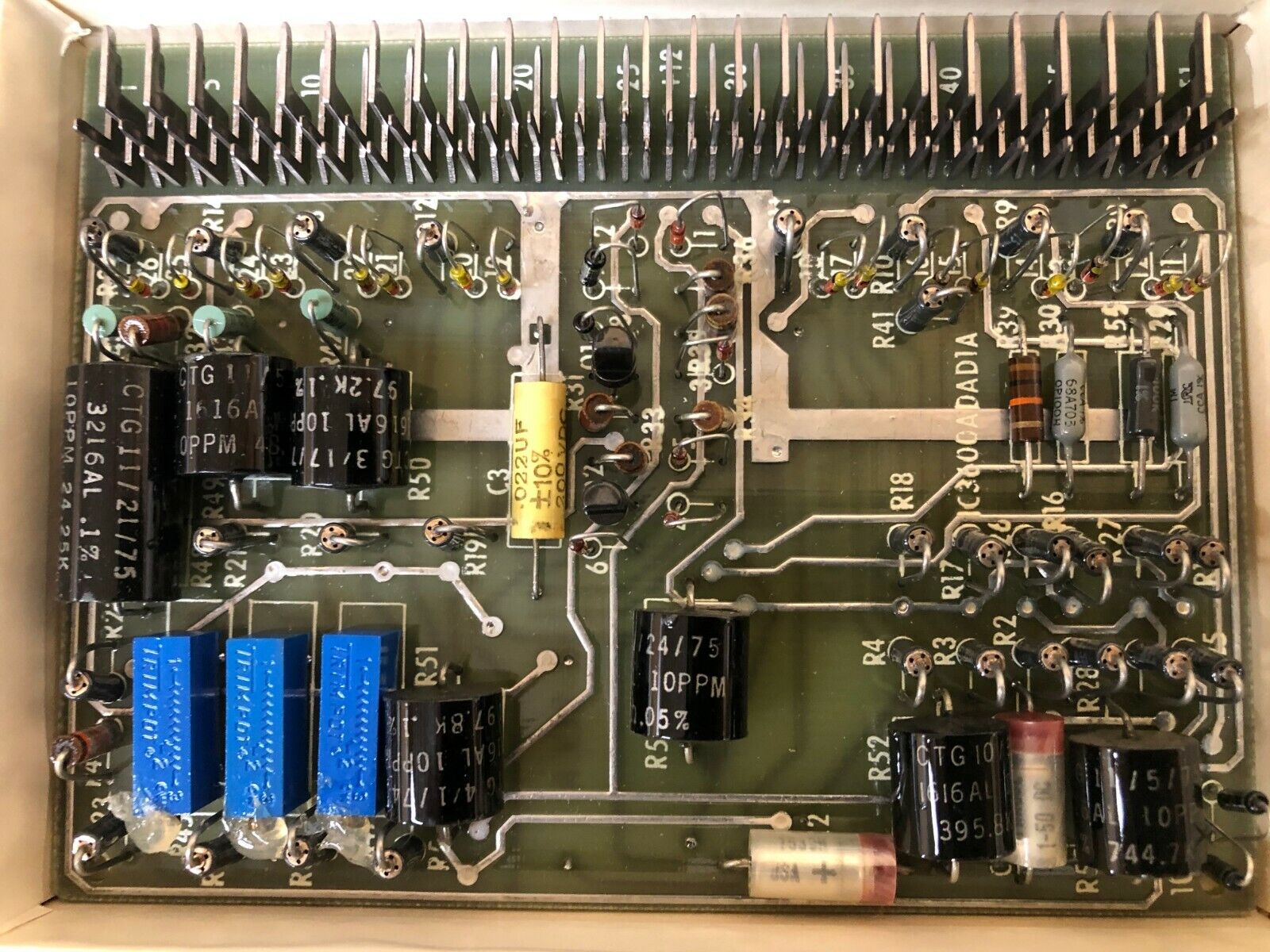

The IC3600ADAD1 is drilled in two corners. The board has many bits of information printed on it. This includes the unique board identification number, the board’s revision code, and markings identifying all components. One edge is numbered one to fifty by fives. These numbers are printed under twenty-five right-angled metal pins.

The IC3600ADAD1 is built with through-hole fixed components. Components may be mounted horizontally or vertically. This includes diodes, resistors, and capacitors. Capacitors on the board include polyester vinyl capacitors rated at 200 VDC +/- 10% and two aluminum electrolytic capacitors rated at 50V. The board is also built with three trim potentiometers, which are located parallel to each other in one corner. Since these components are variable resistors, they can be used for voltage division.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
