IC3600AFRA1A1A | General Electric Printed Circuit Board
- Regular price
- $839.00
- Sale price
- $839.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: IC3600AFRA1A1A
Description
The IC3600AFRA1A1A is a Ground Fault Relay module created by General Electric. This component is from GE's Mark I or Mark II family of gas and steam turbine controllers, which were created in the 1960s and 1970s. Both systems can work at temperatures as low as -50°C and in a wide range of environments, from offshore to remote pipeline stations.
Technical Specifications
| Brand | General Electric |
| Product Type | Ground Fault Relay Board |
| Part Number | IC3600AFRA1A1A |
| Series | Mark I and II |
Information About IC3600AFRA1A1A
IC3600AFRA1A1A is a FANUC GE Ground Fault Relay Board. This component is designed by GE for the Mark I and Mark II series, which were developed by GE in the 1960s and 1970s for the management of gas and steam turbines. Both systems can be used in conditions ranging from +/- 50 degrees Celsius, and in locations as varied as offshore applications to remote pipeline stations. The Mark I and Mark II are designed to control turbines, limit system output so it is consistent with the unit’s capabilities, sequence control parameters during startup, provide a protective shutdown in the event of a non-recoverable system failure, and monitor and annunciate malfunctions including those within the control system and turbine auxiliaries.

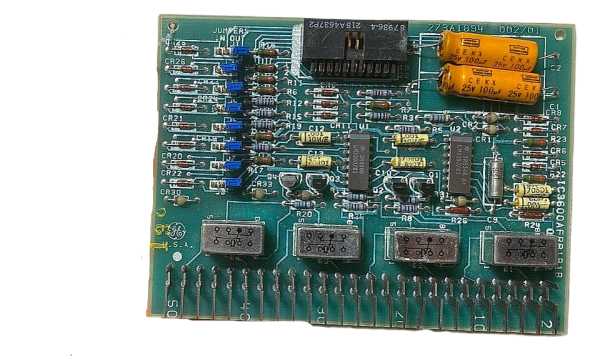

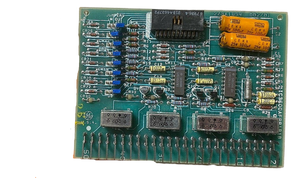

The IC3600AFRA1A1A has two integrated circuits and four transistors. The circuits are both low power quad comparators with low offset voltage. The board has four light emitting diodes. Each diode is red. The LEDs are labeled CR1 through CR4.
The IC3600AFRA1A1A has thirty-two jumper switches. Each of these jumpers allows end users one of two ways of finishing off each related circuit.
The IC3600AFRA1A1A has one right-angled mating connector. This is a male connector. It is labeled 218A4637P2. The opposite edge of the board has twenty-five metal pins. Under the pins, the board is numbered by tens from ten to fifty. These individual pins are designed to connect the board to wiring in the Mark I/II frame.
The IC3600AFRA1A1A has four relays on its surface. The board is built with polyester vinyl capacitors and capacitors of other material. The board has several rows of resistors and diodes.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
