Product Description P/N: IC3600AIAC1
Description
The IC3600AIAC1 is a GE FANUC Amplifier Drive Card designed as a component for the Mark I/Mark II systems, which were developed by GE for managing steam/gas turbine systems. These systems are capable of managing turbines ranging from individual units with a rated capacity of 4000 hp to combined systems with a capacity of 400 Mw. The Mark I/Mark II systems offer functionalities such as controlling turbine output, limiting maximum output, sequencing control parameters and auxiliaries for startup, performing protective shutdowns during non-recoverable system failures, and monitoring system malfunctions.
The IC3600AIAC1 features factory-drilled holes in two of its four corners and is equipped with twenty-five right-angled metal pins inserted into the opposite side of the board, numbered from two to fifty by tens. These pins serve as connectors or a backplane for linking the card to the rest of the system.
Technical Specifications
Part # |
IC3600AIAC1 |
Category |
Servo Products |
Subcategory |
Servo Add-On Module/Board |
Information About IC3600AIAC1
The IC3600AIAC1 is a GE FANUC Amplifier Drive Card designed as a component for the Mark I/Mark II systems, developed by GE for managing steam/gas turbine systems. These systems are capable of managing turbines ranging from individual units with a rated capacity of 4000 hp to combined systems with a capacity of 400 Mw. The Mark I/Mark II systems offer functionalities such as controlling turbine output, limiting maximum output, sequencing control parameters and auxiliaries for startup, performing protective shutdowns during non-recoverable system failures, and monitoring system malfunctions.
The IC3600AIAC1 features factory-drilled holes in two of its four corners and is equipped with twenty-five right-angled metal pins inserted into the opposite side of the board, numbered from two to fifty by tens. These pins serve as connectors or a backplane for linking the card to the rest of the system.

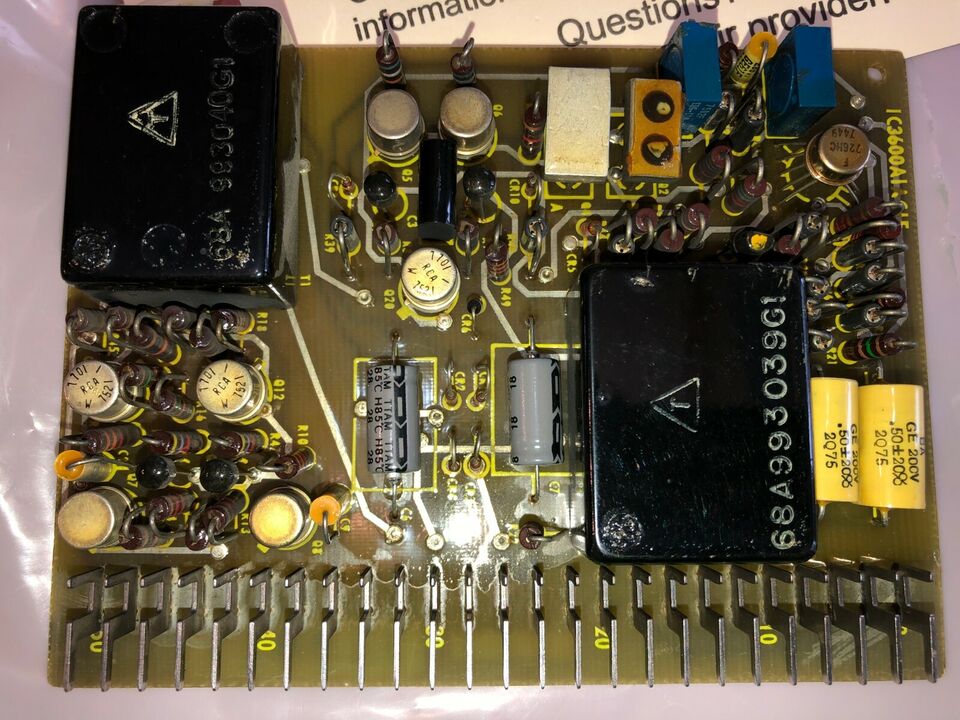

Additionally, the board includes two large relays occupying a significant portion of its surface, along with two trim potentiometers, various transistors, resistors, capacitors, and diodes. Capacitors on the board are predominantly made of polyester vinyl or aluminum electrolytic material, while resistors are metal film. Many components are mounted vertically on the board.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
