Product Description P/N: IC3600EPZU1A
Description
The IC3600EPZU1A is a Power Supply Board manufactured by GE, designed for integration within either the Mark I or the Mark II series, the pioneering Speedtronic gas/steam turbine management systems. Introduced in 1969 and 1973 respectively, the MKI and MKII series have amassed millions of hours of operational use across systems ranging from 4000 hp to 400 Mw (combined cycles), embodying scalability and adaptability.
As a FANUC component, the IC3600EPZU1A bears several markings on its front, including the GE 'U.S.A.' logo, the codes 006/01 and 002/01, the board identification, and the mark "EPZU." Numbering is present on one board edge.
Technical Specifications
Part # |
IC3600EPZU1A |
Category |
Power Supplies |
Subcategory |
Power Supply Accessory |
Function |
Power Supply Board |
Series |
Mark I & II |
Country of Manufacturer |
United States (USA) |
Information About IC3600EPZU1A
The IC3600EPZU1A is a Power Supply Board manufactured by GE, specifically designed for integration within either the Mark I or the Mark II series, which represent the pioneering Speedtronic gas/steam turbine management systems. Initially introduced in 1969 and 1973 respectively, the MKI and MKII series have accumulated extensive operational hours across systems of varying scale, underscoring their scalability and adaptability. These series are engineered to manage systems ranging from 4000 hp to as large as 400 Mw (combined cycles).
As a FANUC component, the IC3600EPZU1A bears several markings on its front surface, including the GE ‘U.S.A.’ logo, the codes 006/01 and 002/01, the board identification, and the mark “EPZU.” Additionally, one edge of the board is numbered for reference.

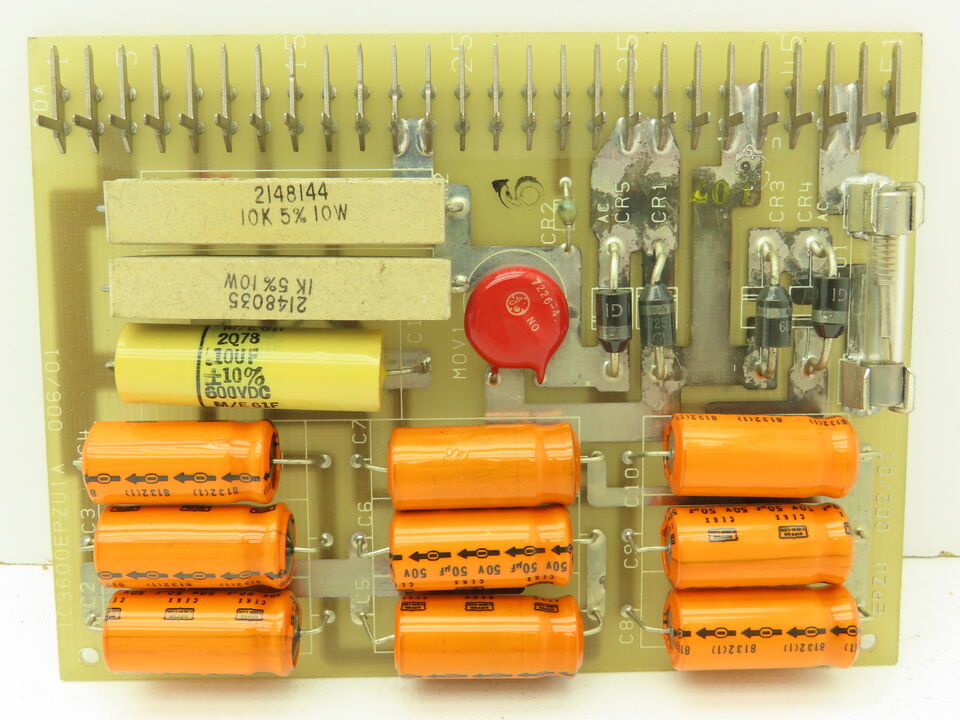

The IC3600EPZU1A incorporates several key components, including four diodes, one fuse, and two wire wound resistors, labeled as 2147901 1K 5%10W and 214902 10K 5% 10W. The board is equipped with capacitors made of polyester vinyl (2Q78 10μF +/- 10%) and three lines of three aluminum electrolytic capacitors (30D + TE 1307 50μF 50 VDC 105C + 9807H). Furthermore, a metal oxide varistor marked MOV1 is included, primarily serving as a line voltage surge suppressor, capable of shorting spikes within nanoseconds.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
