IC3600LLXA1A | General Electric Printed Circuit Board
- Regular price
- $687.00
- Sale price
- $687.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: IC3600LLXA1A
Description
Technical Specifications
|
Brand |
General Electric |
|
MPN |
IC3600LLXA1A |
|
SKU |
BE018-6 |
|
Type |
Logic Expander Board |
Information About IC3600LLXA1A
The IC3600LLXA1A is a printed circuit board (PCB) component designed for integration within the Mark I and/or Mark II series, catering to steam or gas turbine management applications. Despite the obsolescence of MKI/MKII systems due to the advent of newer Speedtronic systems like the Mark V and Mark VI, they persist in operation across various locations. Both the Mark I and Mark II systems primarily emphasize controlling turbine output power across load ranges, ensuring consistent maximum output aligned with unit capabilities, sequencing turbine and auxiliary operations during startup, implementing protective shutdown measures in the event of system failures, and monitoring and annunciating malfunctions.

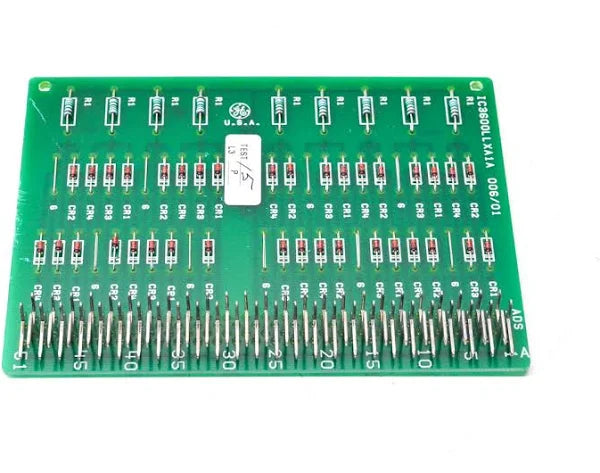

Physically, the IC3600LLXA1A PCB features a minimalistic component configuration, primarily serving as a logic expander. It incorporates a single line of nine carbon composite material resistors uniformly labeled as "R1." Additionally, the board integrates two lines of diodes arranged in groups of four, three, or two, labeled as CR1, CR2, CR3, or CR4, without any specified order. Interruptions within the diode lines are marked by nine through-hole wires devoid of components but labeled with a "6" underneath. The far side of the board is numerically labeled, accompanied by fifty-one metal pins positioned above this numbering.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
