Product Description P/N: IC3600SOSF1
Description

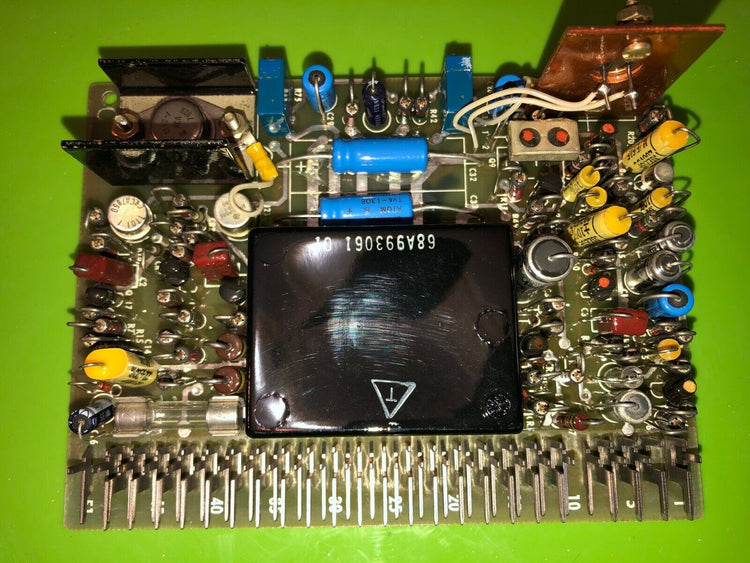

The GE IC3600SOSF1 is a Linear Variable Differential Transformer (LVDT) Oscillator Card used to generate and condition excitation signals for position feedback measurement. This printed circuit board supports precise signal generation and amplification required for accurate LVDT operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | PLCs / Machine Control |
| Part Number | IC3600SOSF1 |
| Subcategory | PC Board PLC / Add-On Board |
| Function | LVDT Oscillator Card |
| Product Type | Printed Circuit Board (PCB) |
| Capacitors | Electrolytic and polypropylene capacitors |
| Resistors | 21 color-coded fixed resistors |
| Variable Resistors | 2 adjustable potentiometers |
| Fuse Type | Glass cartridge fuse |
| Transistors | Multiple signal amplification transistors |
| Application | LVDT excitation and signal conditioning |
Information About IC3600SOSF1
The IC3600SOSF1 is an LVDT Oscillator Card manufactured by General Electric for early Speedtronic Mark I and Mark II turbine control platforms. It is designed to generate stable excitation signals for Linear Variable Differential Transformers used in position and displacement measurement. The board incorporates a combination of fixed and adjustable resistors, capacitors, and transistor stages to support signal stability and amplification. It is installed in legacy turbine control cabinets where accurate mechanical position feedback is required.
Key Features
- LVDT excitation generation: Produces stable oscillator signals for LVDT-based position sensing.
- Signal conditioning circuitry: Uses capacitors and resistors to stabilize and shape output signals.
- Adjustable calibration capability: Dual potentiometers allow fine tuning of oscillator parameters.
- Integrated signal amplification: Transistors modify and amplify feedback signals for control processing.
- Protective fuse design: Glass fuse provides circuit protection during abnormal conditions.
- Mark I and Mark II compatibility: Designed for early GE Speedtronic turbine control systems.
- Industrial-grade PCB construction: Built for long-term reliability in turbine environments.
The IC3600SOSF1 delivers the reliability and precision required for accurate LVDT excitation and position feedback processing in GE Mark I and Mark II Speedtronic gas and steam turbine control systems.
