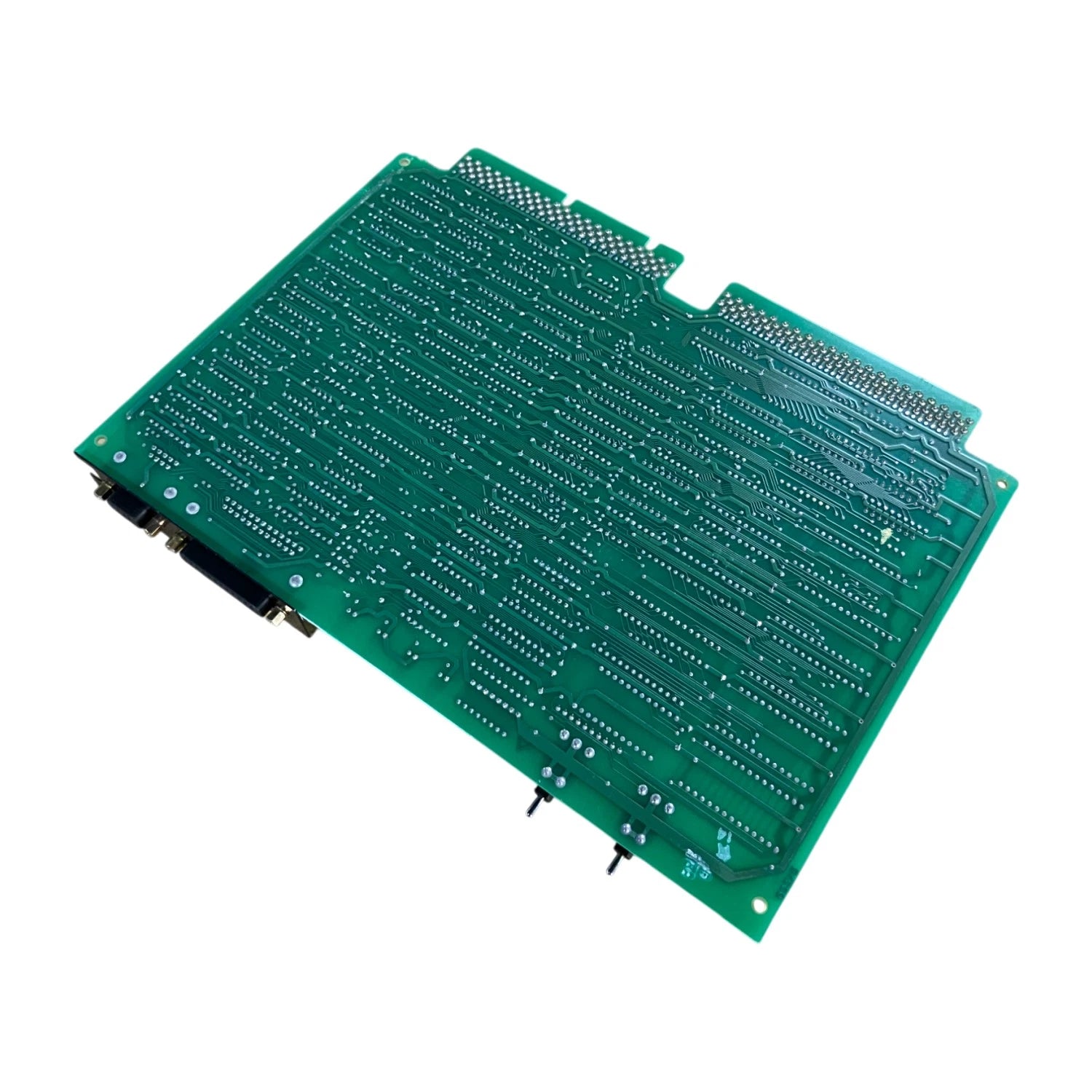

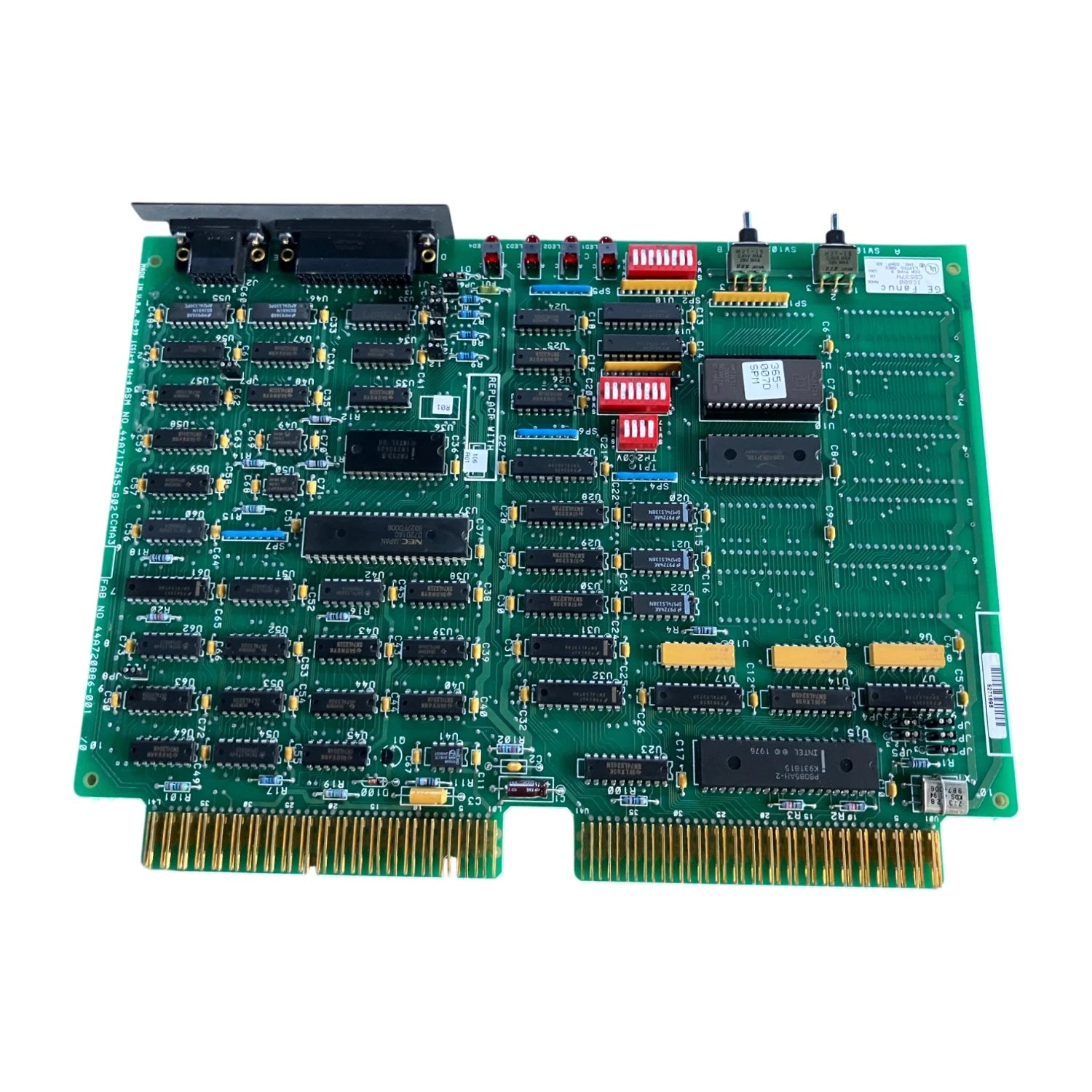

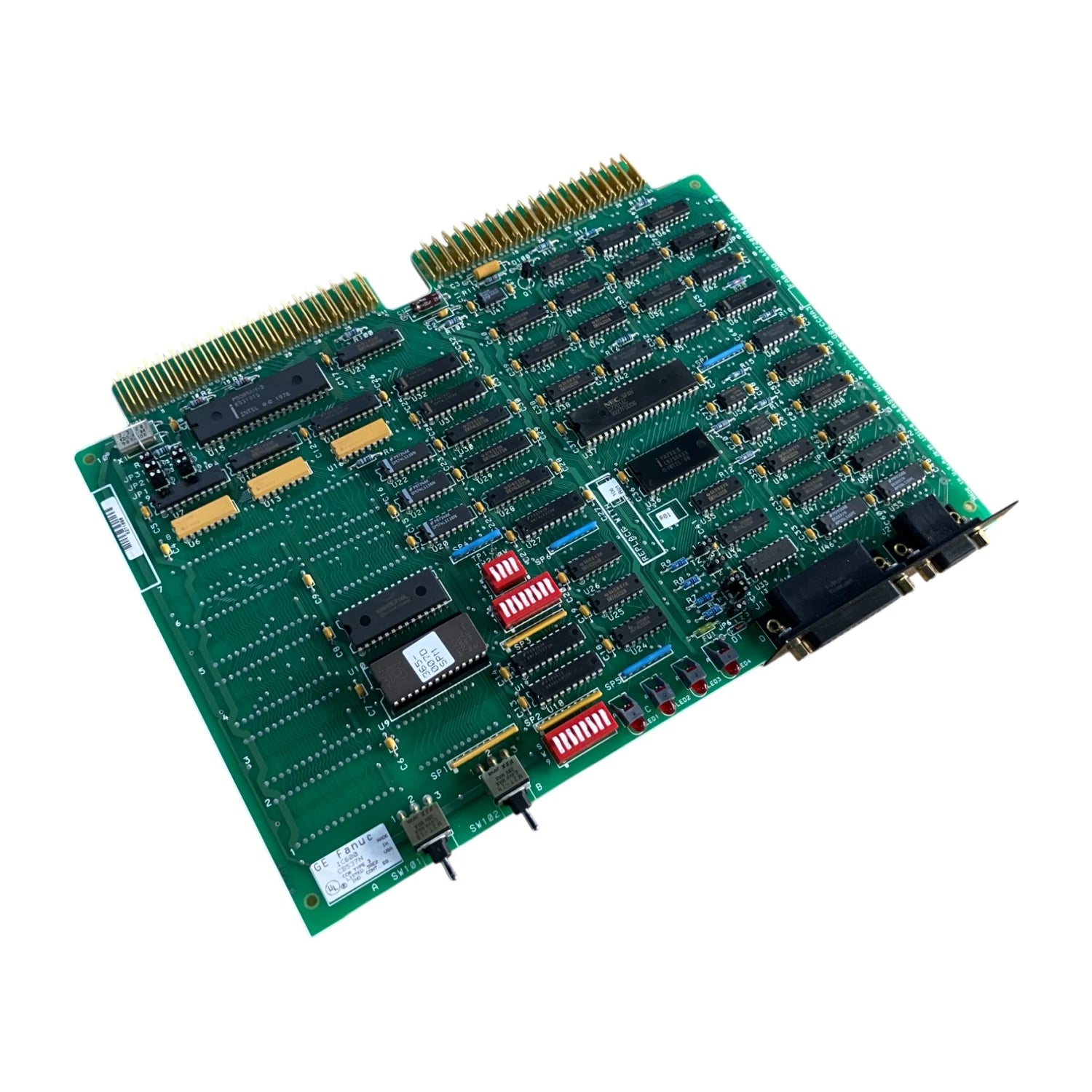

IC600CB537N | GE Fanuc Series Six Type 3 Communication Module
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IC600CB537N
Description
The GE Fanuc IC600CB537N is a Type 3 Communication Control Module (CCM3) designed for the Series Six PLC platform. It provides serial communication between the PLC CPU and external intelligent devices such as host computers and process control systems. The module supports multiple communication protocols and high-speed data transmission for industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC600CB537N |
| Subcategory | PLC Module/Rack |
| Module Type | Type 3 Communication Control Module (CCM3) |
| Compatible Platform | GE Fanuc Series Six PLC |
| Communication Interfaces | RS-232C, RS-422 |
| Supported Protocols | Master, Slave, Peer-to-Peer, RTU Slave |
| Maximum Data Rate | 38.4 Kbps |
| Memory Addressing Capacity | Up to 64K User Logic Memory |
| Power Requirements | 5V DC (17 load units), 12V DC (4 load units) |
| Status Indicators | 4 LED Indicators |
| Control Features | 2 Configuration Switches |
| Country of Origin | United States |
| Weight | 0.90 kg |
Information About IC600CB537N
The IC600CB537N is a communication interface board developed for integration within the GE Fanuc Series Six programmable logic controller system. It enables serial data exchange via RS-232C and RS-422 interfaces, allowing the PLC to communicate with supervisory systems and peer controllers. The module supports Master, Slave, Peer-to-Peer, and RTU Slave protocols, offering flexible network configurations. Powered directly from the PLC CPU supply, it incorporates onboard LED indicators and configuration switches for monitoring and operational control.
Key Features:
-
Type 3 Communication Control Module: Designed for Series Six PLC systems.
-
Multi-Protocol Support: Master, Slave, Peer-to-Peer, and RTU Slave compatibility.
-
Serial Interfaces: RS-232C and RS-422 communication options.
-
Data Rate up to 38.4 Kbps: Supports reliable high-speed transmission.
-
Expanded Memory Addressing: Addresses up to 64K of user logic memory.
-
LED Status Indicators: Four onboard LEDs for diagnostics and status display.
-
CPU-Powered Operation: Draws required 5VDC and 12VDC directly from PLC supply.
-
Industrial Integration: Enables communication with host and process control systems.
The IC600CB537N delivers the reliability and precision required for industrial PLC communication and system integration.
