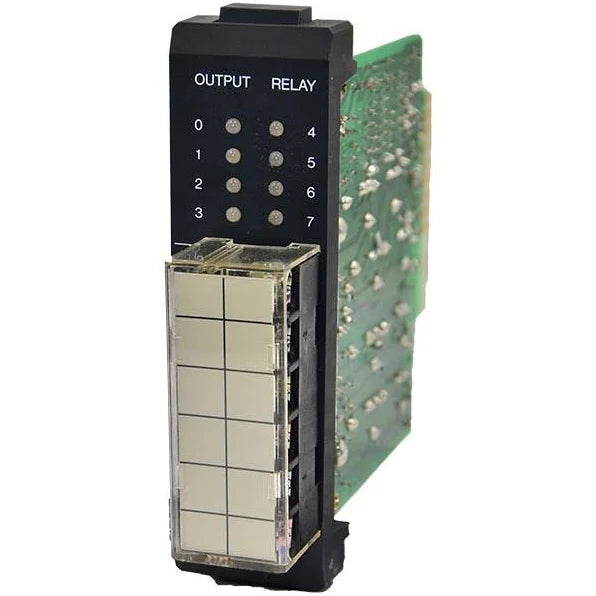

Part #: IC610MDL180A Manufactured by: GE Fanuc
Regular price
$159.00
Sale price
$159.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The GE Fanuc IC610MDL180A 8-Point Relay Output Module is a pivotal component designed for industrial automation. It is int...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: IC610MDL180A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for GE Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
IC610MDL180A | GE Fanuc | Output Module
    IC610MDL180A | GE Fanuc | Output Module
IC610MDL180A | GE Fanuc | Output Module

Product Description P/N: IC610MDL180A

Description / Specifications

Description

The GE Fanuc IC610MDL180A 8-Point Relay Output Module is a component designed for industrial automation applications. It offers eight relay output points for controlling various devices in a system.

The Series One PC, which contains the IC610MDL180A module, can accommodate over 1700 words of user logic, up to 64 timer/counters, and up to 64 I/O points within a compact panel surface area of only 54 square inches. This space efficiency is equivalent to less than the area occupied by four 4-pole relays.

The module facilitates efficient control and management of industrial processes within a compact footprint, making it a suitable choice for space-constrained applications requiring reliable relay output functionality.




Technical Specifications



Specifications





Module Model

GE FANUC IC610MDL180A

Module Type

Relay Output Module

Number of Circuits

8

Circuit Functionality

Each circuit controls user-supplied discrete (ON/OFF) loads such as relay coils, motor starters (up to No. 3), solenoid valves, and indicator lights.

Circuit Groups

Divided into 2 groups of 4 circuits each. Each group can be supplied from a separate power source.

Compatibility

Module fitted with GE Fanuc Series One system (Series 1).

Operating Voltage

97-265 VAC

AC Frequency

47-63 Hz

Maximum Current

1 AMP

Maximum Leakage Current

- 1.2 mA @ 220V, 60 Hz - 0.5 mA @ 110V, 60 Hz

Internal Power Consumption

20 mA for each ON unit

Load Unit

16 @ 9 VDC



Information About IC610MDL180A


The GE Fanuc IC610MDL180A 8-Point Relay Output Module is an integral component designed for industrial automation applications. It serves to facilitate precise control over discrete (ON/OFF) loads through its eight relay output points. These points are capable of managing various devices, including relay coils, motor starters (up to No. 3), solenoid valves, and indicator lights.

Operating within the GE Fanuc Series One PC framework, this module offers remarkable efficiency and versatility. A single Series One PC contained within a one S-slot rack can accommodate over 1700 words of user logic, up to 64 timer/counters, and up to 64 I/O points. Remarkably, this level of functionality is achieved within a compact panel surface area of only 54 square inches.

Comparatively, the space efficiency of the Series One PC equipped with the IC610MDL180A module is noteworthy. Occupying less space than four 4-pole relays, this system optimizes valuable real estate within industrial environments while delivering robust performance and control capabilities.

The IC610MDL180A module enhances operational flexibility by organizing its eight circuits into two groups of four circuits each. Each group can be independently supplied from a separate power source, adding redundancy and reliability to the system.

Technical specifications of the IC610MDL180A module include an operating voltage range of 97-265VAC and an AC frequency range of 47-63Hz. It can handle a maximum current of 1 AMP, ensuring compatibility with a wide range of industrial loads. Additionally, the module boasts a maximum leakage current of 1.2mA @ 220V, 60Hz, and 0.5mA @ 110V, 60Hz, ensuring efficient and reliable operation.



Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
