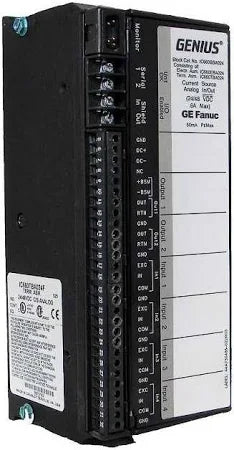

IC660BBA024 | Ge Fanuc I/O Block Genius I/O Series
- Regular price
- $2,484.00
- Sale price
- $2,484.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC660BBA024
Description
The GE Fanuc IC660BBA024 is a Current Source I/O Block featuring 4 inputs and 2 outputs. This block operates with a power range of 24 to 48 Volts DC and provides 1500 Volts of isolation between blocks. It dissipates 12 Watts of heat.
Technical Specifications
| Brand | GE FANUC |
| Category | PLCs/Machine Control |
| Part Number | IC660BBA024 |
| Subcategory | PLC Module/Rack |
| Series | Genius I-O |
| Product Description | Current Source I/O Block |
| No. of Inputs | 4 |
| Input Accuracy | 0.1% of full-scale reading |
| Input Resolution | 1 microamp |
| No. of Outputs | 2 |
| Output Accuracy | 0.15% of full-scale reading |
| Output Resolution | 6 microamps |
| Block Power | 24/48 VDC |
| Heat Dissipation | 12 Watts |
| Status LEDs | Unit OK, I/O Enabled |
| Block to Block Isolation | 1500 Volts |
| Group to Group Isolation | 1500 V RMS |
| Size (HxWxD) | 8.83 x 3.34 x 3.91 inches |
Information About IC660BBA024
The IC660BBA024 is a GE Fanuc Series 90-30 Current Source I/O Block, rated for 24 to 48 Volts DC. It is designed to connect with devices that provide 4 to 20 milliamps analog signals. This module features 4 inputs and 2 outputs, isolated channels, and factory calibration. Each input offers a 24V current loop power supply, while the output channels provide two 4 to 20 milliamps current loops. The block includes linear scaling for generating engineering units and diagnostic facilities.
The IC660BBA024 measures 22.44 x 8.48 x 9.93 cm and weighs 4 lbs. Input specifications include 0.1% full-scale reading accuracy at 25°C, 1 microamp input resolution, 16.6 to 400 milliseconds input conversion time, and a 4 to 20 milliamps current range. Output specifications include 6 microamps output resolution, 4 to 20 milliamps current range, 6 to 8 milliseconds output update frequency, and 0.15% full-scale reading accuracy at 25°C. The module uses a voltage-to-frequency converter to convert analog readings into digital values. Outputs are electrically common, and a 24 to 48 Volts DC Bus switching module can be directly connected. Powering the module requires a 24 to 48 Volts DC supply connected to the DC+ and DC- terminals.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
