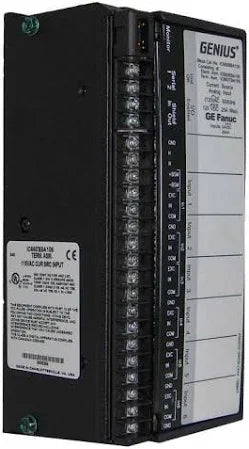

IC660BBA106 | GE Fanuc Genius Current-Source Input Block

Description

Technical Specifications

Information About IC660BBA106

The GE Fanuc IC660BBA106 is an Analog Input Block designed as part of the Genius I/O series, which is recognized for its reliable performance in industrial automation applications. This input block is specifically engineered to facilitate the integration of analog signals into distributed control systems, making it a critical component for precise data acquisition and monitoring in industrial environments. With its robust design and versatility, the IC660BBA106 supports a wide range of industrial applications, ensuring that analog signals from various sources are accurately captured and transmitted to control systems.

This Analog Input Block is equipped with six input channels, allowing it to handle multiple analog signals simultaneously. Each input channel is designed to interface with current-source signals, making it suitable for applications that require accurate monitoring of current levels within an industrial process. The input impedance of the IC660BBA106 is 100 Ohms, ensuring that the block provides stable and reliable signal measurements, minimizing the impact of external electrical noise on the accuracy of the data.

The IC660BBA106 operates with both AC and DC voltage types, offering flexibility in power supply options. It is designed to function within a power supply voltage of 115 Volts AC or 125 Volts DC, making it compatible with common industrial power systems. The wide operating voltage range of 93 to 132 Volts AC and 105 to 145 Volts DC ensures that the block can maintain stable operation even in environments where power supply conditions may fluctuate. This adaptability makes the IC660BBA106 a reliable choice for various industrial settings, where consistent performance is essential for maintaining process integrity.

The Analog Input Block is designed to operate within a temperature range of 0 to 60 degrees Celsius, ensuring that it can function reliably in a variety of industrial environments. This operating temperature range is suitable for most indoor industrial settings, where temperature control is maintained, but it also provides some tolerance for environments where temperature variations may occur. The robust design of the IC660BBA106 ensures that it can withstand the rigors of industrial use, providing long-term reliability and reducing the need for frequent maintenance or replacement.

In terms of its role within a distributed control system, the IC660BBA106 is designed to interface seamlessly with Genius Bus controllers. This compatibility ensures that the input block can be easily integrated into existing Genius I/O networks, facilitating the expansion or upgrading of control systems without requiring extensive reconfiguration or programming. The input block's design prioritizes ease of integration, with clear labeling and straightforward connection points that simplify the installation process and reduce the potential for errors during setup.

The IC660BBA106 also incorporates protective features to ensure reliable operation in demanding industrial environments. These features may include protection against overvoltage, which helps to safeguard the input block and connected systems from potential damage caused by electrical surges or fluctuations. The inclusion of such protective measures enhances the overall durability of the block, ensuring that it can provide consistent performance even in the presence of challenging electrical conditions.

Additionally, the IC660BBA106 is designed with consideration for ease of maintenance and troubleshooting. The clear organization of input channels and the straightforward design of the block make it easier for technicians to identify and address any issues that may arise during operation. This focus on ease of maintenance helps to minimize downtime and ensures that industrial processes can continue with minimal disruption.

In summary, the GE Fanuc IC660BBA106 Analog Input Block is a highly reliable and versatile component designed for use in industrial automation systems. Its ability to handle multiple analog inputs, combined with its robust design and wide operating voltage range, makes it an ideal choice for a variety of industrial applications. The block's compatibility with Genius Bus controllers and its protective features further enhance its utility, ensuring that it can provide consistent and accurate performance in even the most demanding environments. Whether used in new installations or as part of an upgrade to an existing system, the IC660BBA106 offers the reliability and flexibility needed to support the efficient operation of modern industrial processes.

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
