IC660BBD101 | GE FANUC Genius Low-Leakage I/O Block

Description

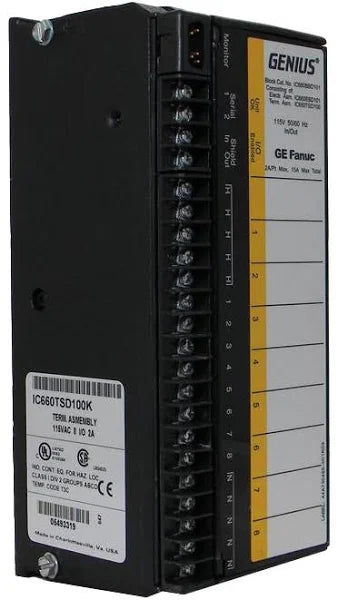

The IC660BBD101 is a Genius Block I/O. Previously manufactured by GE Fanuc, this module is now under Emerson Automation. It is an 8-circuit Discrete I/O block with channels configurable as tristate input, non-tristate input and output. It has an operating voltage range of 93-132 VAC with nominal level of 115 VAC. It supports Genius communication protocol, allowing the module to function as a stand-alone Remote I/O device.

Technical Specifications

Information About IC660BBD101

The IC660BBD101 is an Emerson Automation I/O block that is part of the Genius I/O block series. This series of modules are stand-alone, panel mounted devices that are used to interface field devices and actuate elements or electrical loads. It has a compact and reckless design, with each I/O channel configurable for input and output channels independently.

The IC660BBD101 is designed with Eight (8) I/O channels or circuits that may be operated as input or output. It operates at a voltage range of 93-132 VAC, 47-63 Hz with nominal level of 115 VAC. It is provided with Unit OK and I/O enabled LED indicators that serves as module status indicator, providing users operational status. It also has a dedicated LED for each of the circuits for determining the state of the circuit or channel. It has a maximum heat dissipation of 43. 5 Watts and power supply dropout time of 1 cycle or 16.7 ms @ 60 Hz or 20 ms @ 50 Hz.

Common parameters of the input channels include selectable filter times of 10 to 100 ms with 10 ms increments and typical input processing time of 2 ms plus channel configured filter. Input channels are capable of self-diagnostics, able to detect Open Wire, Overtemperature or Failed Switch.

Module output parameters include steady-state output current of 2 A, maximum inrush current of 25 A peak up to 2 cycles and maximum block output current of 15 A @ 35o and 7.5 A @ 60o. It is included with an electronic short circuit trip and output diagnostics of Short Circuit, Overload, No Load, Failed Switch, and Overtemperature.

The GE Fanuc IC660BBD101 I/O block is a discrete I/O block for the Genius I-O product line from GE Fanuc. It runs on I/O voltage rating of 115 Volts AC. The IC660BBD101 discrete I/O block is a configurable and intelligent device that can act as an interface between a communications bus and discrete devices like discrete actuators or sensors. This I/O block contains 8 circuits that are all identical, all configurable as either inputs or outputs, and all rated at 115 Volts AC voltage. The IC660BBD101 discrete I/O block has several useful features that include an input filter time that is selectable at rates between 10 and 100 milliseconds, output feedback that can be used for monitoring, pulse testing for all the outputs, and bus switching.

The GE Fanuc Genius I-O IC660BBD101 discrete I/O block does not need a separate block power supply because its control power comes from the I/O device voltages that are wired to the terminals. Its operating voltage range is from 94 to 132 Volts AC at 47 to 63 Hertz frequency. The IC660BBD101 discrete I/O block weighs 4 pounds and its dimensions are 8.8 x 3.3 x 3.9 inches. All 8 of the circuits on this I/O block are protected by electronic fuses that will shut circuits down within 5 milliseconds either if the output current exceeds 30 Amps when the output is turned on or if the output current exceeds 20 Amps after 2 cycles. The circuits that are shut down can be restored by a command from a CPU or a handheld monitor.
