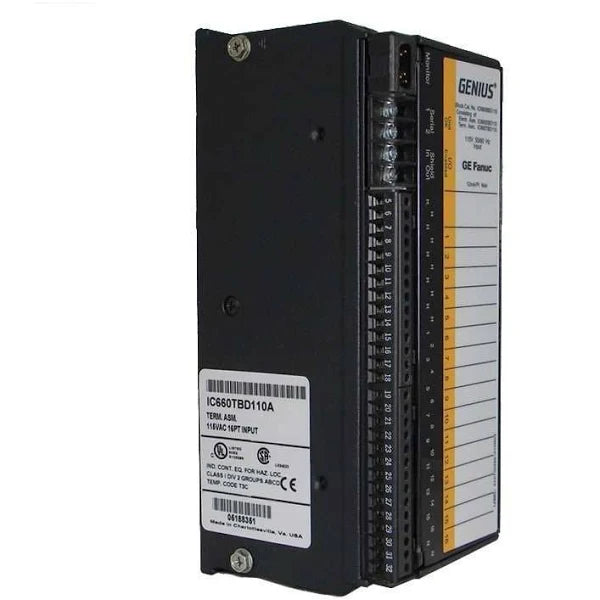

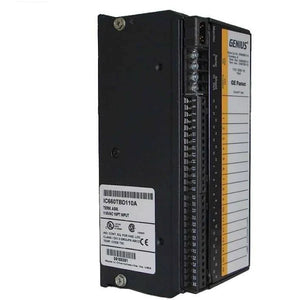

IC660BBD110 | GE FANUC I/O MODULE GENIUS BLOCK, 16 CIRCUIT, 115 VAC POWER, FOR 2 OR 3 WIRE SWITCH INPUTS
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC660BBD110
Description
The GE Fanuc IC660BBD110 is an intelligent 16-point discrete input block. This module is a 115VAC discrete input block, with operating voltage range of 93-132VAC, 47-63 Hz. This module directly communicates to the processor or communication adapter via the Genius protocol. This module supports right side up or upside-down orientation.
Technical Specifications
| Brand | GE FANUC |
| Module type | Discrete input block I/O |
| Part Number | IC660BBD110 |
| Input to ground or serial bus Isolation | 1500V |
| Input diagnostics | Open Wire, Short Circuit |
| Selectable input filter times | 10 to 100ms in 10ms increments |
| Input shorted wire | Fixed 10%-90% thresholds |
| Input off state, input on state | Programmable threshold (25% to 85%) |
| Number of points | 16 |
| Input Current (mA) | 80mA max. block current plus 200mA max. input circuit current |
| Nominal Input voltage | 115VAC |
| Input Voltage Range | 93-132 VAC |
| Series | Genius Block I/O |
| Product Type | Discrete Input Block |
| Number of Inputs | 16 |
| Number of Outputs | None |
| Voltage Type | AC |
| Operating Temperature | 32 to 140 degrees Fahrenheit |
| Storage Temperature | -40 to 212 degrees Fahrenheit |
| Fault Detection | Short Wire Faults and Open Wire Faults |
Information About IC660BBD110
The GE Fanuc IC660BBD110 is a stand-alone block I/O that features Sixteen (16) input points. This module supports the Genius bus communication protocol, allowing it be installed near machines without the need of a baseplate, processor or communication adapter installed along the module. This module is an intelligent input module that supports daisy-chain topology and reports directly to a controller or communication adapter connected to the same network.
The IC660BBD110 input channels are designed to receive signal voltage range of 93-132VAC with frequency of 47-63 Hz with nominal value of 115VAC. It has a programmable threshold of 25% to 85% for both ON and OFF states. This module is also equipped with internal channel diagnostics, capable of detecting open and shorted wire. Both diagnostic properties also have programmable thresholds of 25% - 85% and fixed threshold of 10-90%, respectively. This module exhibits an input processing tume of 1 ms with software configurable input filters of 10 to 100 ms, in 10 ms increments. This input filter allow rejection of noise and signal bounces.
The IC660BBD110 module measures 8.83” (22.44cm) x 3.34” (8.48cm) x 3.91” (9.93cm) (HxWxD) and weighs 4 lbs. (1.8 kg). It comes with LED indicators such as Unit OK, I/O enabled and individual input LEDs. It has internal isolation of 1500V from ground to serial bus.
The IC660BBD110 connects to the Genius Bus via the terminal block installed below the module’s LED indicators. This terminal is a 3-pin terminal that may be accessed by opening the hinged door. This module may be installed in right-side up or upside-down orientation.
The IC660BBD110 discrete input block comes with advanced diagnostics and selectable thresholds. Some of the most common input connection contact closure connections with devices like switches, limit switches, and pushbuttons. It can make connections with 2-wire proximity switch inputs and 3-wire proximity switch inputs.
The GE Fanuc Genius I-O IC660BBD110 discrete input block operates safely and at full power in a temperature range of 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius), and it can be stored safely in an environment with a temperature range of -40 to 212 degrees Fahrenheit (-40 to 100 degrees Celsius.) The safe ambient humidity levels for the IC660BBD110 discrete input block in operation and in storage are between 5 and 95%, non-condensing. This input block weighs 4 pounds or 1.8 kilograms. It measures 8.8 x 3.3 x 3.9 inches (22.4 x 8.4 x 9.9 centimeters). For device protection, the IC660BBD110 discrete input block can be configured by software to detect shorted wire faults and open wire faults.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
