IC660BBS102 | GE FANUC 115 VAC / 125 VDC Isolated I/O Block with eight circuits and Failed Switch Diagnostics

Description

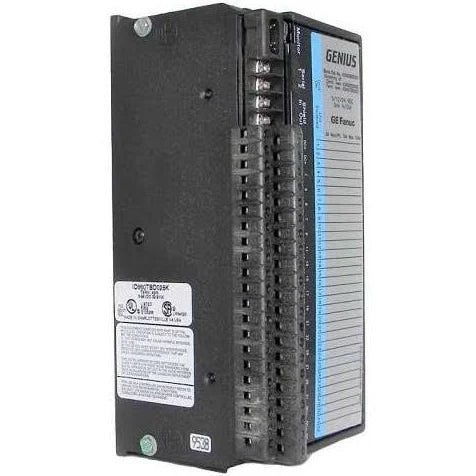

The IC660BBS102 is a Genius Block I/O. Previously manufactured by GE Fanuc, this module is now under Emerson Automation. It is an 8-channel isolated I/O block in 4 groups of 2 channels each with channels configurable as input and output, independently that accepts 115 VAC / 125 VDC. This block I/O is capable of reporting failed switch diagnostic by comparing the block output command to the actual state of the internal switch. This module is compatible for use with CPU redundancy features with output pulse test capability.

Technical Specifications

Information About IC660BBS102

The IC660BBS102 is a Genius Block I/o that is manufactured by Emerson Automation. This module mainly features Eight (8) circuits in 4 isolated groups of 2 channels each, configurable as input or output that are compatible with 115 VAC and 125 VDC voltages. This Block I/O module supports Genius I/O protocol, that enables the capability of communicating directly over Genius Bus protocol.

The IC660BBS102 is capable of detecting failed switch diagnostic implemented by comparing the output command of the module to the state on the built-in internal switch to the block I/O device. This Block I/O supports redundant Processors and capable as well of holding the last state, output pulse test capability and output powerup defaults.

The IC660BBS102 also supports accepting restart command from hand-held monitor or from the master controller. It is also equipped with diagnostic capabilities such as Overtemperature Open Wire when configured as tri-state input; Detection of loss of I/O power on pairs of circuits; Overload Detection and Shutdown and No-Load Detection.

The IC660BBS102 physically measures 8.83" (22.44cm) x 3.34" (8.48cm) x 3.91" (9.93cm) and weighs approximately 4 lbs. (1.8 kg). It is built with Unit OK and I/O enabled LED status indicators as well as circuit LEDs on logic side of the switch. It is designed for panel mounting and support right side up or upside down orientation. With support for Genius I/O protocol, the IC660BBS102 may be connected in multi-drop or daisy chain topology, where a network of Genius I/O capable devices may be connected as well.

The IC660BBS102 output block is a GE Fanuc Genius I/O output block. There are 8 circuits on the IC660BBS102 output block which are divided into 4 separate groups of 2 circuits each. The groups are isolated and they are rated for both 125 Volts DC and 115 Volts AC voltage. The IC660BBS102 output block replaces the older IC660BBS100 output block model. Both the IC660BBS102 output block and the IC660BBS100 output block report a failed switch diagnostic in the event that an output’s command state does not match the actual state of the internal switch on the I/O block. The IC660BBS102 output block can be operated from either a DC or AC voltage source. For AC voltage, the input range is 93 to 132 Volts AC, and for DC voltage, the input range is 105 to 132 Volts DC. For AC input, the supported frequency range is 47 to 63 Hertz.

The isolation on the IC660BBS102 output block between any 2 output groups or between a group and ground is rated at 250 Volts AC. Features of the IC660BBS102 output block include AC or DC circuit voltage, output pulse test capability, CPU redundancy, and bus switching module control. Electronic fusing is integrated into each output circuit, and an output circuit experiencing a short is shut down within 5 microseconds of the occurrence of the short circuit to protect the block. The IC660BBS102 output block can be restarted from the CPU or from a hand-held monitor. The IC660BBS102 output block weighs 4 pounds and measures 8.8 x 3.3 x 3.9 inches. When all 8 output circuits are on and are drawing 2 Amps of current, the maximum module heat dissipation rating can reach 45.6 Watts.

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
