IC660EBD101K | GE Fanuc Genius I/O PLC Input/Output Module 8-Point
- Regular price
- $2,675.00
- Sale price
- $2,675.00
- Regular price
-
Couldn't load pickup availability

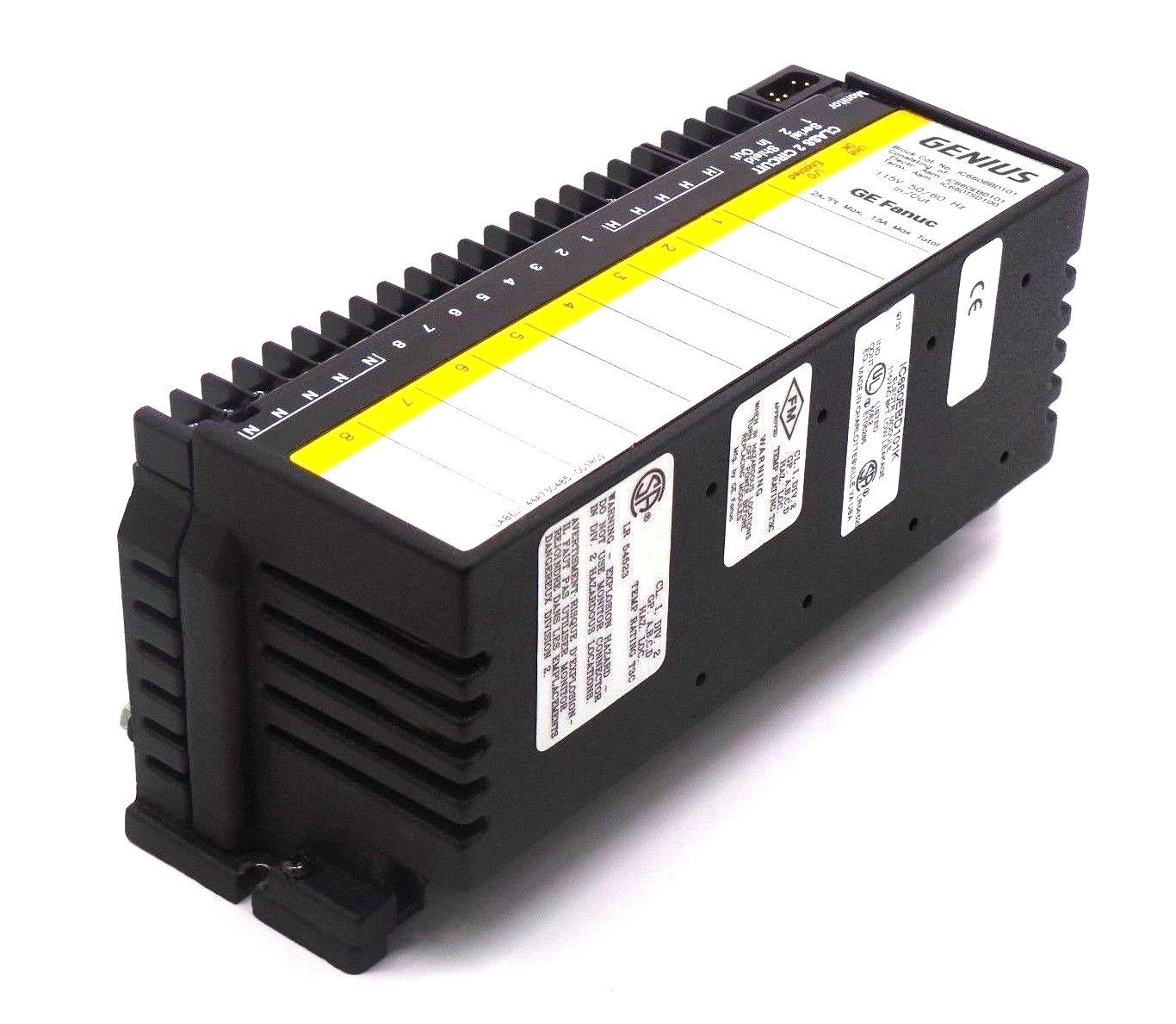

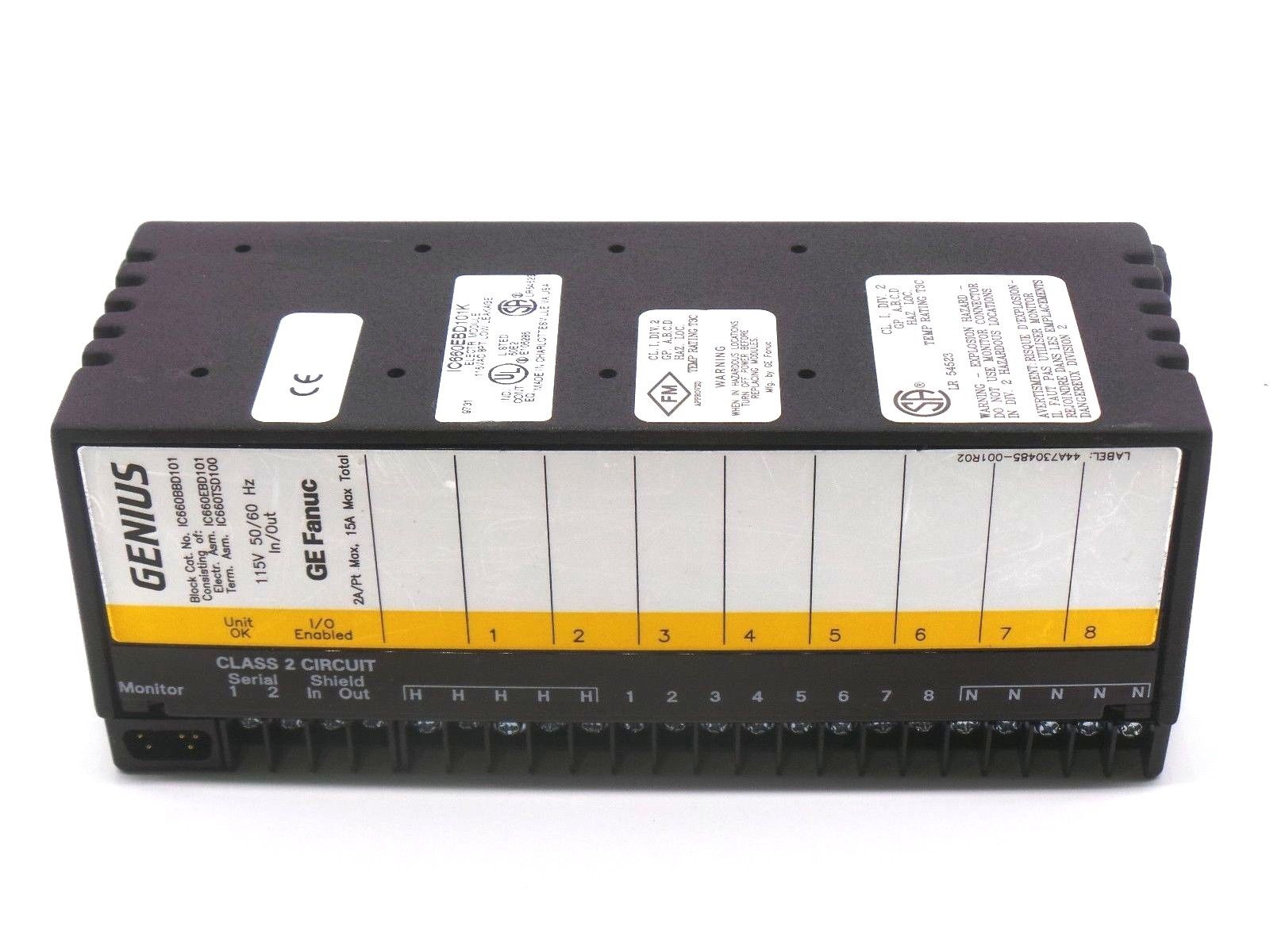

Product Description P/N: IC660EBD101K
DescriptionΒ
The GE Fanuc IC660EBD101K is an input/output PLC module designed for use with Genius I/O blocks. It operates with both AC and DC block power, providing reliable signal interfacing for automation control systems.
Β
Β
Technical SpecificationsΒ
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLC & I/O Modules |
| Part Number | IC660EBD101K |
| Subcategory | Input/Output Module |
| Operating Voltage | 93β132 VAC or 10β30 VDC |
| Frequency | 47β63 Hz |
| Output Voltage | 115 VAC, 50/60 Hz |
| Number of Points | 8 I/O points |
| Current Rating | 2 A per point, 15 A maximum total |
| Power Dissipation | 150 W max, 160 W with 8 inputs |
| Standby Power | 8.5 W |
| Input Thresholds | 20β60 VRMS (depending on state) |
| Input Impedance | 13 kΞ© typical |
| Output Leakage | < 7 mA |
| Voltage Isolation | 65 V RMS |
| Output Protection | Short circuit, overload, overtemperature |
| Dimensions (HxWxD) | 8.83" x 3.50" x 3.94" (22.44 x 8.89 x 10.0 cm) |
| Weight | 4.1 lbs (1.88 kg) |
| Operating Temp | 0 to +60 Β°C (32 to +140 Β°F) |
| Storage Temp | β40 to +100 Β°C (β40 to +212 Β°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration | 5β200 Hz, 0.22" displacement, 1G |
Β
Β
Information About IC660EBD101K
The IC660EBD101K is part of GE Fanucβs Genius I/O series, built for distributed industrial control applications. It supports operation at 93β132 VAC or 10β30 VDC block power and is commonly used in environments where robust interfacing between field devices and PLCs is required. This module offers 8 input/output points, designed for flexible use in mixed-signal applications. Its rugged construction ensures performance under a wide temperature range and challenging industrial conditions.
Key Features:
- Dual Power Input: Supports both 93β132 VAC and 10β30 VDC block power operation.
- Flexible I/O: Provides 8 configurable input/output points for industrial control applications.
- Current Handling: Up to 2 amps per point, with a maximum of 15 amps total across the block.
- Voltage Rating: Compatible with 115 VAC at 50/60 Hz for field device interfacing.
- Low Leakage: Designed with minimized leakage current for sensitive industrial environments.
- Environmental Range: Operates reliably from 0 to +60 Β°C, with storage capability down to β40 Β°C.
- Built-In Protection: Features overtemperature, overload, and short-circuit safeguards.
- Compact Dimensions: Measures approximately 8.83" x 3.50" x 3.94" and weighs about 4.1 lbs.
The IC660EBD101K delivers the reliability and robustness required for distributed control in industrial automation systems.
DescriptionΒ
The GE Fanuc IC660EBD101K is an input/output PLC module designed for use with Genius I/O blocks. It operates with both AC and DC block power, providing reliable signal interfacing for automation control systems.
Β
Β
Technical SpecificationsΒ
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLC & I/O Modules |
| Part Number | IC660EBD101K |
| Subcategory | Input/Output Module |
| Operating Voltage | 93β132 VAC or 10β30 VDC |
| Frequency | 47β63 Hz |
| Output Voltage | 115 VAC, 50/60 Hz |
| Number of Points | 8 I/O points |
| Current Rating | 2 A per point, 15 A maximum total |
| Power Dissipation | 150 W max, 160 W with 8 inputs |
| Standby Power | 8.5 W |
| Input Thresholds | 20β60 VRMS (depending on state) |
| Input Impedance | 13 kΞ© typical |
| Output Leakage | < 7 mA |
| Voltage Isolation | 65 V RMS |
| Output Protection | Short circuit, overload, overtemperature |
| Dimensions (HxWxD) | 8.83" x 3.50" x 3.94" (22.44 x 8.89 x 10.0 cm) |
| Weight | 4.1 lbs (1.88 kg) |
| Operating Temp | 0 to +60 Β°C (32 to +140 Β°F) |
| Storage Temp | β40 to +100 Β°C (β40 to +212 Β°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration | 5β200 Hz, 0.22" displacement, 1G |
Β
Β
Information About IC660EBD101K
The IC660EBD101K is part of GE Fanucβs Genius I/O series, built for distributed industrial control applications. It supports operation at 93β132 VAC or 10β30 VDC block power and is commonly used in environments where robust interfacing between field devices and PLCs is required. This module offers 8 input/output points, designed for flexible use in mixed-signal applications. Its rugged construction ensures performance under a wide temperature range and challenging industrial conditions.
Key Features:
- Dual Power Input: Supports both 93β132 VAC and 10β30 VDC block power operation.
- Flexible I/O: Provides 8 configurable input/output points for industrial control applications.
- Current Handling: Up to 2 amps per point, with a maximum of 15 amps total across the block.
- Voltage Rating: Compatible with 115 VAC at 50/60 Hz for field device interfacing.
- Low Leakage: Designed with minimized leakage current for sensitive industrial environments.
- Environmental Range: Operates reliably from 0 to +60 Β°C, with storage capability down to β40 Β°C.
- Built-In Protection: Features overtemperature, overload, and short-circuit safeguards.
- Compact Dimensions: Measures approximately 8.83" x 3.50" x 3.94" and weighs about 4.1 lbs.
The IC660EBD101K delivers the reliability and robustness required for distributed control in industrial automation systems.
