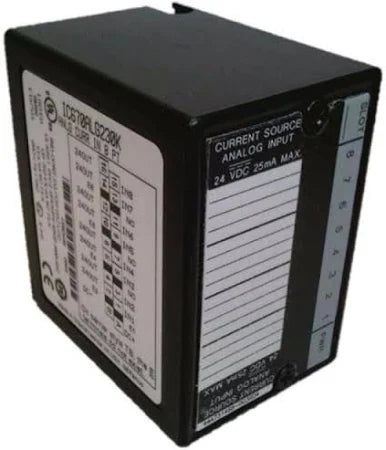

IC670ALG230 | GE Fanuc 8-Point Analog Current Source Input Module
- Regular price
- $1,427.00
- Sale price
- $1,427.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC670ALG230
Description
The IC670ALG230 is an 8-Point Analog Current Source Input Module from the Field Control series of GE Fanuc. This module features eight single-ended input channels, configurable for 0-20 mA or 4-20 mA. It offers a digital resolution of 12 bits and an analog resolution of 5.0 µAmps. The typical conversion time is 60 microseconds per channel.
Technical Specifications
|
Brand |
GE Fanuc |
|
Series |
Field Control |
|
Part Number |
IC670ALG230 |
|
Manufacturer |
GE Fanuc |
|
Description |
Input Module |
|
Product Description |
Analog Current / Voltage Source Input Module |
|
Wiring Configuration |
Single-ended |
|
No. of Channels |
Eight (8) |
|
Channel |
8 |
|
Input Range |
0-20 mA |
|
Input Signal, Nominal |
0-20 mA |
|
Input Signal, Range |
0.0-25 mA |
|
Isolation to Case |
250 Volts AC continuous |
|
Isolation |
1500 VAC for 1 minute, 250 VAC continuous |
|
Input Impedance |
2.87 kiloohms |
|
Analog Resolution |
5.0 µA |
|
Conversion Time @ 1MHz Clock |
60 Microseconds per channel, typical |
|
Conversion Resolution |
12 bits |
|
On-state Voltage |
15-30 Volts DC |
|
Off-state Voltage |
0-5 Volts DC |
|
External Power Supply |
18-30 VDC |
|
Nominal Supply Voltage |
24 VDC |
|
Current from BIU |
100 milliamperes |
|
Current Input |
Module only: 50 mA, typical: Including Loop: 210 mA, maximum |
|
Input Current Span |
0.1 mA minimum, 20mA maximum |
|
Current Drawn from BIU Power Supply |
51 mA, maximum |
|
Ground to Logic Isolation |
1500 VAC for 1 minute; 250 VAC, continuous |
|
Input Impedance |
249.75 to 250.25 Ohms |
|
Input Grouping |
Single group |
|
Power Supply |
18-30 VDC |
Information About IC670ALG230
The IC670ALG230 is an analog current source input module manufactured by GE Fanuc as part of their Field Control series. Designed for industrial applications requiring precise current measurements, this module features eight single-ended input channels. Each channel is configurable to accept input signals ranging from 0-20 mA or 4-20 mA, providing flexibility for various monitoring and control requirements.
Key specifications of the IC670ALG230 include a digital resolution of 12 bits, ensuring accurate digital representation of input signals. The module achieves an analog resolution of 5.0 µAmps, allowing for precise measurement capabilities. With a typical conversion time of 60 microseconds per channel, it efficiently processes input data, suitable for real-time monitoring and control applications in industrial automation settings.
Physically, the module adheres to standard industrial dimensions and mounting configurations, facilitating integration into existing control systems. It operates effectively within a power supply range of 18-30 VDC, with a nominal supply voltage of 24 VDC, ensuring compatibility with common industrial power standards.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
