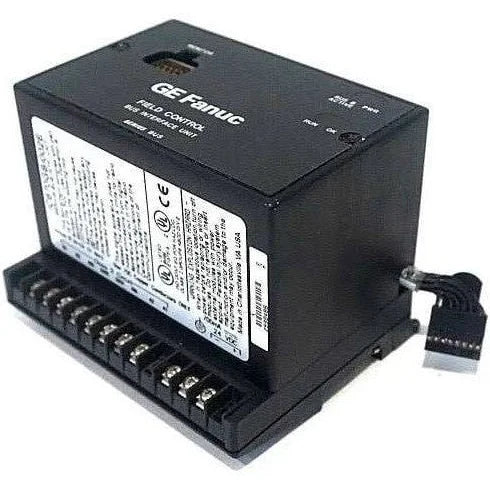

IC670GBI002 | GE Fanuc | Interface Unit
- Regular price
- $1,327.00
- Sale price
- $1,327.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC670GBI002
Description
The IC670GBI002 is a Bus Interface Unit designed as part of the Field Control system by GE Fanuc. As the header module of each Field I/O system, it facilitates communication between the master PLC or computer over the Genius Bus. Capable of exchanging 128 bytes of input and 128 bytes of output data, it accommodates up to eight (8) Field Control I/O modules. This unit supports Hot Standby CPU configuration and requires an external supply voltage ranging from 18-30 VDC, with a nominal value of 24 VDC.
Technical Specifications
Specifications
|
Part # |
IC670GBI002 |
|
Manufacturer |
FANUC |
|
Brand |
GE FANUC |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Series |
Field I/O control |
|
Part Number |
IC670GBI002 |
|
Type |
Bus interface unit |
|
Product Description |
Bus Interface Unit (BUI) |
|
Compatibility |
Field control IC670G / IC670GBI |
|
Supply Voltage range |
18-30 VDC |
|
Nominal Rated Voltage |
115 Volts AC, 125 Volts DC |
|
Voltage Range |
90 to 135 Volts AC / 105 to 150 Volts DC |
|
Nominal supply voltage |
24 VDC |
|
Frequency |
47 to 63 Hertz |
|
Power consumption |
16.8 Watts |
|
Power at 115 Volts AC |
48 Volt-Amps (maximum) at full load |
|
Inrush Current |
15-50 Amps peak, 3 mS maximum |
|
Power at 125 Volts AC |
24 Watts (maximum) at full load |
|
Power Supply Output |
6.5 VDC ±5% |
|
Inrush Current |
20 Amps (peak), 3 milliseconds (maximum) |
|
Current output to modules |
1.4 A |
|
Power Supply Output |
6.5 Volts DC |
|
Holdup time |
10 ms |
|
Holdup Time |
20 milliseconds (maximum) |
|
Supported protocols |
Genius Bus |
|
Reliability |
More than 183,000 hours operation MTBF |
|
Product Lifecycle Status |
Discontinued/Obsolete |
|
CPU Redundancy |
Supported |
|
Hot Insertion and Removal of Modules |
Supported |
Information About IC670GBI002
The IC670GBI002, manufactured by GE Fanuc, is a Bus Interface Unit integrated within the Field Control system. Primarily serving as the header module of each Field I/O system, it facilitates the interface between the master PLC or computer over the Genius Bus protocol. This unit enables the exchange of 128 bytes of input and 128 bytes of output data and has the capacity to support up to eight (8) Field Control I/O modules.
Designed to ensure system reliability, the IC670GBI002 is compatible with Hot Standby CPU configuration, allowing for seamless redundancy in critical operational environments. It operates within a supply voltage range of 18-30 VDC, with a nominal value of 24 VDC, necessitating an external power source for its operation.
The module's functionality is crucial for managing data communication and coordination between various components within the Field Control system, enhancing the system's efficiency and reliability. It serves as a key component in the overall architecture of industrial automation and control systems, providing essential connectivity and data exchange capabilities.
With its robust design and compatibility features, the IC670GBI002 plays a pivotal role in ensuring the seamless operation and communication of Field Control systems across diverse industrial applications. Its ability to handle input and output data exchange efficiently, coupled with support for Hot Standby CPU configuration, makes it a reliable choice for critical control and automation tasks.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
