IC670MDL240 | GE Fanuc Discrete Input Module

Description

Technical Specifications

Information About IC670MDL240

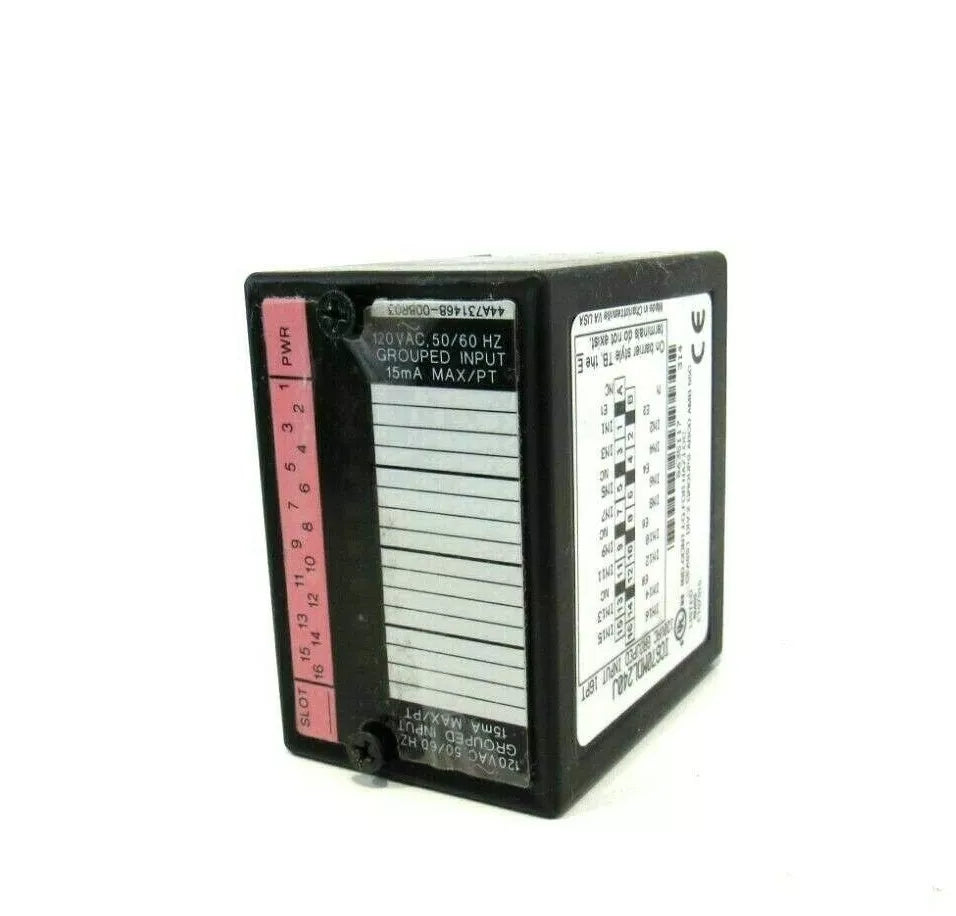

The IC670MDL240 is a Discrete Input Module manufactured by GE Fanuc, designed for use within the Field Control and Field I/O Control series. This module is engineered to provide reliable and efficient discrete input signal processing for various industrial automation applications. With its robust design and advanced features, the IC670MDL240 is a key component for monitoring and controlling input signals within automated systems.

The IC670MDL240 is a 16-channel input module, making it suitable for applications that require multiple input points. Each of the 16 input channels is capable of handling AC input signals with a nominal voltage of 120 VAC, allowing for a wide range of input signals within the operating range of 0-132 VAC. This flexibility makes the module suitable for various industrial environments where different input voltages may be encountered.

The input current for each channel is specified at 15 mA at 120 VAC, ensuring that the module can accurately process input signals without excessive power consumption. This current rating is consistent across all channels, providing uniform performance regardless of the number of active inputs. The module draws a maximum of 77 mA from the Bus Interface Unit (BIU) power supply, ensuring efficient operation while minimizing the load on the power supply.

The IC670MDL240 operates within a frequency range of 47 to 63 Hertz, allowing it to be used in applications with varying power line frequencies. The module's input frequency range of 47-63 Hz ensures that it can reliably process signals in regions with different electrical standards. Additionally, the module is designed to handle both ON and OFF state voltages effectively, with an ON state voltage range of 70-132 VAC and an OFF state voltage range of 0-20 VAC. This wide voltage range ensures accurate signal detection and processing, even in applications with fluctuating input voltages.

One of the critical features of the IC670MDL240 is its ground-to-logic isolation, rated at 1500 VAC for 1 minute and 250 VAC continuous. This isolation is essential for protecting the module and the connected control system from potential electrical faults, ensuring reliable operation even in electrically noisy environments. The module's continuous isolation voltage of 250 Volts AC further enhances its robustness, providing an additional layer of protection against electrical disturbances.

The IC670MDL240 is designed to handle discrete input data in 16 bits (2 bytes), allowing it to process input signals efficiently and transmit the data to the control system with minimal latency. The module's input grouping is configured as a single group, simplifying wiring and installation while ensuring consistent signal processing across all channels.

In terms of response times, the IC670MDL240 is engineered for fast and reliable signal processing. The typical ON response time is 12 milliseconds, with a maximum ON response time of 20 milliseconds. This quick response time ensures that the module can detect and process input signals promptly, which is crucial in time-sensitive applications. The OFF response time is also optimized, with a typical OFF response time of 25 milliseconds and a maximum OFF response time of 40 milliseconds. These response times make the IC670MDL240 suitable for applications where rapid signal changes need to be detected and acted upon quickly.

The IC670MDL240 is designed for use with an external power supply of 120 VAC, ensuring that the module can be easily integrated into existing control systems without the need for additional power conversion equipment. The module's voltage type is AC, making it compatible with a wide range of industrial power systems.

Overall, the IC670MDL240 Discrete Input Module by GE Fanuc is a versatile and reliable component for industrial automation systems. Its 16-channel design, wide input voltage range, fast response times, and robust isolation features make it an ideal choice for monitoring and controlling discrete input signals in various industrial applications. The module's compatibility with the Field Control and Field I/O Control series further enhances its utility, providing a seamless solution for expanding and optimizing industrial control systems.
