IC693ALG221 | GE Fanuc | Input Module
IC693ALG221 | GE Fanuc | Input Module
Part #: IC693ALG221 Manufactured by: GE Fanuc

IC693ALG221 | GE Fanuc | Input Module

Regular price
$694.00
Sale price
$694.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The IC693ALG221, manufactured by GE Fanuc Emerson and available through PDF Supply, is an Analog Current Input Module desi...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: IC693ALG221
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for GE Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
IC693ALG221 | GE Fanuc | Input Module
    IC693ALG221 | GE Fanuc | Input Module
IC693ALG221 | GE Fanuc | Input Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: IC693ALG221

Description / Specifications

Description

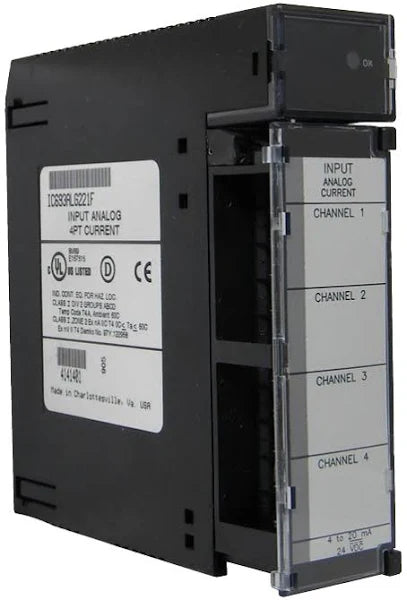

The IC693ALG221 is an Analog Current Input Module manufactured by GE Fanuc Emerson and supplied by PDF Supply. It is designed for use with the Series 90-30 Programmable Logic Controller (PLC) and features four input channels. Each channel is capable of converting analog input signals into digital signals, tailored to the application's requirements.

This module offers two selectable input ranges. By default, it operates within a range of 4 to 20 mA, where 4 mA corresponds to a count of zero and 20 mA corresponds to 32000. Alternatively, when a jumper is added to the I/O terminal board, the input range shifts to 0 to 20 mA, with 0 mA equating to a count of zero and 20 mA corresponding to 32000, with each 800 count representing 0.5 mA.





Technical Specifications



Specifications





Part #

IC693ALG221

Manufacturer

FANUC

Brand

GE FANUC

Category

PLCs/Machine Control

Subcategory

PLC Module/Rack

Input Current Ranges

4 to 20 mA and 0 to 20 mA

Calibration

Factory calibrated to 4 mA per count

Update Rate

2 msec (all four channels)

Resolution at 4-20 mA

4 mA (1 LSB = 4 mA)

Resolution at 0-20 mA

5 mA (1 LSB = 5 mA)

Absolute Accuracy

0.1% full scale + 0.1% reading

Common Mode Voltage

200 volts

Linearity

< 1 Least Significant Bit

Isolation

1500 volts between field side and logic side

Common Mode Rejection

> 70 db at DC; >70 db at 60 Hz

Cross-Channel Rejection

> 80 db from DC to 1 kHz

Input Impedance

250 ohms

Input Filter Response

325 Hz

Internal Power Consumption

100 mA from the isolated +24 volt supply







Information About IC693ALG221



The IC693ALG221 is an Analog Current Input Module designed for the Series 90-30 Programmable Logic Controller (PLC). It features four input channels, each capable of converting analog input signals into digital signals as required for various applications. The module offers two input ranges: a default range of 4 to 20 mA and an adjustable range of 0 to 20 mA, with corresponding scaled user data.

In the default mode, 4 mA corresponds to a count of zero, and 20 mA corresponds to 32,000 counts, with each 1,000 count representing 0.5 mA. With the addition of a jumper to the I/O terminal board, the input range can be adjusted, with each 800 count equaling 0.5 mA. The module features two range jumpers, one for channels 1-2 and another for channels 3-4.

The IC693ALG221 module allows for a conversion speed of one-half milliseconds per channel, with an update rate of two milliseconds for any provided channel. It delivers a resolution speed of 12 bits over the chosen range, with percent AI user data registers in 16-bit 2’s complement format. In case of a reverse current source into the input, the module will output a data word corresponding to the low end of the range.

This module provides adequate input protection, capable of operating with reduced performance under common mode settings of up to 200 V. It also offers electrical isolation from external noise. Field connections require a high-quality twisted, shielded instrumentation cable connected to the COM or GND. An LED indicator monitors power supply operation.





Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
