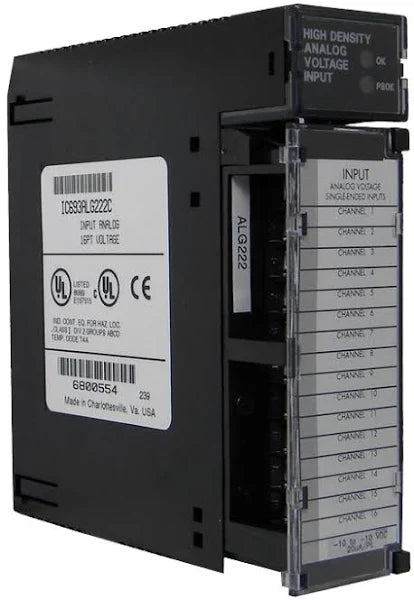

IC693ALG222 | GE Fanuc | Plc module
- Regular price
- $760.00
- Sale price
- $760.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693ALG222
Description
Technical Specifications
Specifications
|
Part Number |
IC693ALG222 |
|
Manufacturer |
FANUC |
|
Brand |
GE FANUC |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Product Type |
Analog Input Module |
|
Number of Channels |
1 to 16 selectable (single-ended), 1 to 8 selectable (differential) |
|
Input Current Ratings |
0 to 10 Volts (unipolar) or -10 to +10 Volts (bipolar) |
|
Update Rate |
6 milliseconds (16 single-ended channels), 3 milliseconds (8 differential channels) |
|
Linearity |
< 1 LSB |
|
Isolation Voltage |
1500 Volts |
|
Common Mode Voltage |
± 11 Volts (bipolar range) |
|
Input Voltage Ranges |
0 V to +10 V (unipolar) or -10 V to +10 V (bipolar); selectable each channel |
|
Calibration |
Factory calibrated to: 2.5 mV per count (unipolar) or 5 mV per count (bipolar) |
|
Resolution |
2.5 mV (unipolar), 5 mV (bipolar) |
|
Absolute Accuracy |
±0.25% of full scale (@ 25°C), ±0.5% over operating temperature |
|
Isolation |
250 VAC continuous; 1500 VAC for 1 minute (field to backplane and frame ground) |
|
Common Mode Voltage (Differential) |
±11 V (bipolar range) |
|
Cross-Channel Rejection |
> 70dB from DC to 1 kHz |
|
Input Impedance |
>500K Ohms (single-ended), >1 Megohm (differential) |
|
Input Filter Response |
23 Hz (single-ended), 57 Hz (differential) |
|
Internal Power Consumption |
112 mA (max) from 5 VDC bus, 110 mA (max) from 24 VDC supply |
Information About IC693ALG222
The IC693ALG222 is a 16-Channel Analog Voltage Input module designed for the GE Fanuc 90-30 Series PLC. This module offers 16 single-ended or 8 differential input channels, accommodating various input configurations. It provides easy-to-use configuration software supporting two input ranges: -10 to +10 volts and 0 to 10 volts, allowing flexibility in signal processing.
Functionally, the IC693ALG222 converts analog signals into digital signals, making them compatible with the PLC system. It accepts two types of input signals: unipolar, ranging from 0 to +10 volts, and bipolar, spanning from -10 volts to +10 volts. Installation flexibility is a key feature as it can be set up in any I/O slot within a 90-30 Programmable Control System, enhancing system versatility.
The module supports both single-ended (1 to 16 channels) and differential (1 to 8 channels) configurations, providing users with diverse setup options based on their application requirements. Power requirements for the module include 112mA from the 5V bus and 41V from a 24V DC supply to power the converters, ensuring stable operation.
LED indicators, namely MODULE OK and POWER SUPPLY OK, offer insight into the module's operational status and power supply adequacy, enhancing system monitoring capabilities. Configuration options include logic master programming software or Handheld programming, with the latter allowing users to edit active channels but not active scanned channels.
Moreover, the module utilizes the %AI data table to record analog signals, facilitating seamless integration with the programmable logic controller. Its modular design and robust functionality make it suitable for a wide range of industrial automation applications.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
