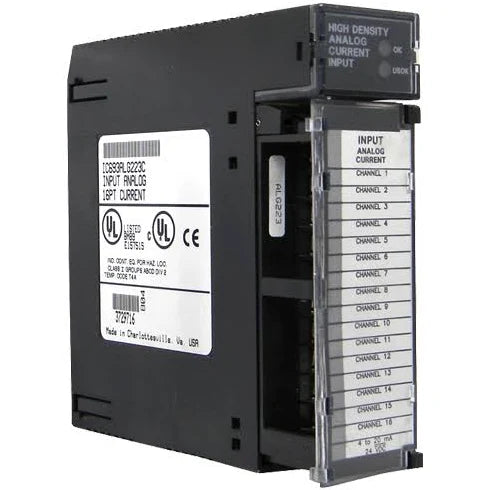

IC693ALG223 | GE Fanuc | Analog Voltage Input Module
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693ALG223
Description
The GE Fanuc IC693ALG223 is a PACSystems Series 90-30 RX3i Analog Current Input Module featuring 16 channels. Each channel, independently single-ended, can be configured within three distinct ranges: 4 to 20 mA, 0 to 20 mA, or 4 to 20 mA Enhanced. The module supports both high and low alarms across all specified ranges. In the enhanced range, it enables low alarm detection for open wire faults within 4 to 20 mA applications, with user-settable high alarm alerts.
Moreover, the IC693ALG223 module provides status reporting, including CPU power supply status, and can be installed in any I/O slot equipped with a serial connector within the RX3i or Series 90-30 system.
Technical Specifications
|
Manufacturer |
GE Fanuc |
|
Series |
Series 90-30 |
|
Part Number |
IC693ALG223 |
|
Product Type |
Input Module |
|
Number of Inputs |
16 |
|
Current Range |
4-20 mA, 0-20 mA |
|
Accuracy |
0.25 percent at 25 degrees Celsius |
|
Input Impedance |
250 Ohms |
|
Resolution at 4-20 mA |
4 microamps |
|
Resolution at 0-20 mA |
5 microamps |
|
Number of Channels |
1 to 16 selectable; single-ended |
|
Input Current Ranges |
0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced (selectable per channel) |
|
Calibration |
- 4 μA per count on 4 to 20 mA range |
|
Calibration |
- 5 μA per count on 0 to 20 mA and 4 to 20 mA Enhanced range |
|
Update Rate |
6 ms |
|
Resolution at 4–20 mA |
4 μA (4 μA/bit) |
|
Resolution at 0–20 mA |
5 μA (5 μA/bit) |
|
Resolution at 4–20 mA Enhanced |
5 μA (5 μA/bit) |
|
Absolute Accuracy 1 |
±0.25% of full scale @ 25°C (77°F); ±0.5% of full scale over specified operating temperature range |
|
Linearity |
< 1 LSB from 4 to 20 mA (4 to 20 mA range); < 1 LSB from 100 μA to 20 mA (0 to 20 mA and 4 to 20 mA Enhanced ranges) |
|
Isolation, Field to Backplane |
250 VAC continuous; 1500 VAC for 1 minute |
|
Common Mode Voltage |
0 volts (single-ended channels) |
|
Cross–Channel Rejection |
> 70dB from DC to 1kHz |
|
Input Impedance |
250 Ω |
|
Input Low Pass Filter Response |
19 Hz |
|
External Supply Voltage Range |
20 to 30 VDC |
|
External Supply Voltage Ripple |
10% |
|
Internal Power Consumption |
120 mA from the +5 VDC bus on the backplane |
Information About IC693ALG223
The GE Fanuc IC693ALG223 is a PACSystems Series 90-30 RX3i Analog Current Input Module featuring 16 channels. These channels, which are individually separate and single-ended, are adaptable to three distinct ranges: 4 to 20 mA, 0 to 20 mA, or 4 to 20 mA Enhanced. Each range offers both high and low alarms for user notification. In the enhanced range, the IC693ALG223 module supports the configuration of low alarm limits to detect input current faults in 4 to 20 mA applications, with user-settable high alarm alerts also available.
Furthermore, the module provides status reporting, including information on power supply status to the CPU. It is compatible with any I/O slot featuring a serial connector within the RX3i or Series 90-30 system architecture.
Regarding power consumption, the IC693ALG223 module draws 120 mA from the 5 VDC bus on the controller backplane and requires an additional 65 mA plus current loop from a +24 VDC supply provided by the user. It operates with a standard update rate of 6 ms and offers isolation levels of 250 VAC continuous or 1500 VAC for one minute.
During active channel scanning, channels are processed sequentially. Analog values are scaled across the entire converter range with factory calibration adjusting the analog value per bit.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
