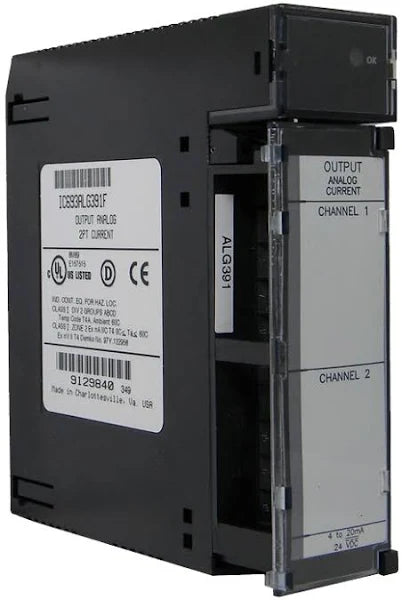

IC693ALG391 | GE FANUC Series 90-30 PLC, Analog output module
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693ALG391
Description
The IC693ALG391 is a Series 90-30 PLC, analog output module providing 0-20 mA / 4-20 mA current output signal and 1-5VDC / 0-5 VDC voltage output signals. This module is formerly manufactured by GE Fanuc Automation, now under Emerson Automation. The module has Two (2) analog output channels with resolution of 4µA (1 LSB = 4µA); 0 to 20 mA 5µA (1 LSB = 5µA); 1 to 5 V 1 mV (1 LSB = 1 mV); 0 to 5 V 1.25 mV (1 LSB = 1.25 mV) with backplane current draw of 30 mA from +5V supply and 215 mA from Isolated +24 VDC backplane supply or user supply.
Technical Specifications
| Brand | GE FANUC |
| Series | Series 90-30 |
| Part Number | IC693ALG391 |
| Analog output signal | 0-20 mA / 4-20 mA; 1-5VDC / 0-5 VDC |
| Channel update rate | 5 ms |
| Analog output resolution | 4 to 20 mA 4µA (1 LSB = 4µA); 0 to 20 mA 5µA (1 LSB = 5µA); 1 to 5 V 1 mV (1 LSB = 1 mV); 0 to 5 V 1.25 mV (1 LSB = 1.25 mV) |
| Output signals | 0-20 mA / 4-20 mA |
| Product Description | Analog output module |
| No of Channels | Two (2) output channels |
| Analog output accuracy | 4 to 20 mA 8µA at 25oC (77oF); 0 to 20 mA 10µA at 25oC (77oF); 1 to 5 V 50 mV at 25oC (77oF); 0 to 5 V 50 mV at 25oC (77oF) |
| Digital Resolution | 12 bits, typical |
| Range | 4-20 mA, 0-20 mA |
| Current draw | 30 mA @ 5 VDC; 215 mA @ 24 VDC (backplane or user provided) |
| Analog resolution | 4 to 20 mA 4µA (1 LSB = 4µA); 0 to 20 mA 5µA (1 LSB = 5µA); 1 to 5 V 1 mV (1 LSB = 1 mV); 0 to 5 V 1.25 mV (1 LSB = 1.25 mV) |
| Supply Voltage (nominal) | +24 VDC, from isolated +24 VDC on backplane or user supplied voltage source, and +5 VDC from backplane |
| External Supply Voltage Range | 20 to 30 VDC (24 VDC typical) |
| External Supply Voltage Range | 20 to 30 VDC |
| Update Rate | 5 msec |
| Isolation | 1500 VAC |
| Status indicators | Module OK |
| Update Rate | 5 ms all channels |
| Calibration | Factory Calibrated to 4µA per count |
| Module width | 1-slot |
| Resolution at 4-20 mA | 4 microamps |
| Absolute Accuracy | 4 to 20 mA ±8µA at 25degrees C (77degrees F); 0 to 20 mA ±10µA at 25degrees C (77degrees F); 1 to 5 V ±50 mV at 25degrees C (77degrees F); 0 to 5 V ±50 mV at 25degrees C (77degrees F) |
| Isolation, Field to logic side | 1500 VAC for 1 minute |
| Bus Current draw | 30 mA from +5V supply; 215 mA from Isolated +24 VDC backplane supply or user supply |
| Resolution at 0-20 mA | 5 microamps |
| Maximum Compliance Voltage | 25 Volts |
| Internal Power Consumption | 30 mA at 5 VDC, 215 mA at 24 VDC Isolated |
Information About IC693ALG391
The IC694ALG391 is an analog output module formerly manufactured by GE Fanuc Automation, now acquired by Emerson Automation. This module is a single slot module featuring Two (2) analog output channels that generates voltage and current output signals such as 0-20 mA / 4-20 mA and 1-5VDC / 0-5 VDC electrical signals. This module comes with specific resolutions particularly 4µA (1 LSB = 4µA) at 4-20 mA; 5µA (1 LSB = 5µA) at 0-20 mA; 1 mV (1 LSB = 1 mV) at 1 to 5 VDC and 1.25 mV (1 LSB = 1.25 mV) at 0-5 VDC. This module is used particularly to actuate modulating control devices such as control valves, louvers, dampers, Variable Frequency Drive (VFD), and similar devices. It may also be used for retransmitting signals and interfacing to panel meters, data loggers, and other receiving elements. The IC694ALG391 is installed to any I/O mounting location of a 5-slot and 10-slot baseplate. It has a single Module OK status indicator depicting the operational state of the module. The module’s absolute accuracy are 8µA at an operating temperature of 25oC (77oF) when configured for 4 to 20 mA; 10µA at 25oC (77oF) for 0 to 20 mA configuration; 50 mV at 25oC (77oF) for 1 to 5 V operation and 50 mV at 25oC (77oF) operating at 0 to 5 V. The IC694ALG391 has an internal power consumption of 30 mA from the +5V supply and 215 mA from the isolated +24 VDC backplane supply or user-provided power source.
The IC693ALG391 is a Series 90-30 PLC, analog output module providing 0-20 mA / 4-20 mA current output signal and 1-5VDC / 0-5 VDC voltage output signals. This module is formerly manufactured by GE Fanuc Automation, now under Emerson Automation. The module has Two (2) analog output channels with resolution of 4µA (1 LSB = 4µA) at 4-20mA; 5µA (1 LSB = 5µA) at 0 to 20 mA; 1 mV (1 LSB = 1 mV) at 1 to 5 V; 1.25 mV (1 LSB = 1.25 mV) at 0 to 5 V with backplane current draw of 30 mA from +5V supply and 215 mA from Isolated +24 VDC backplane supply or user supply.
