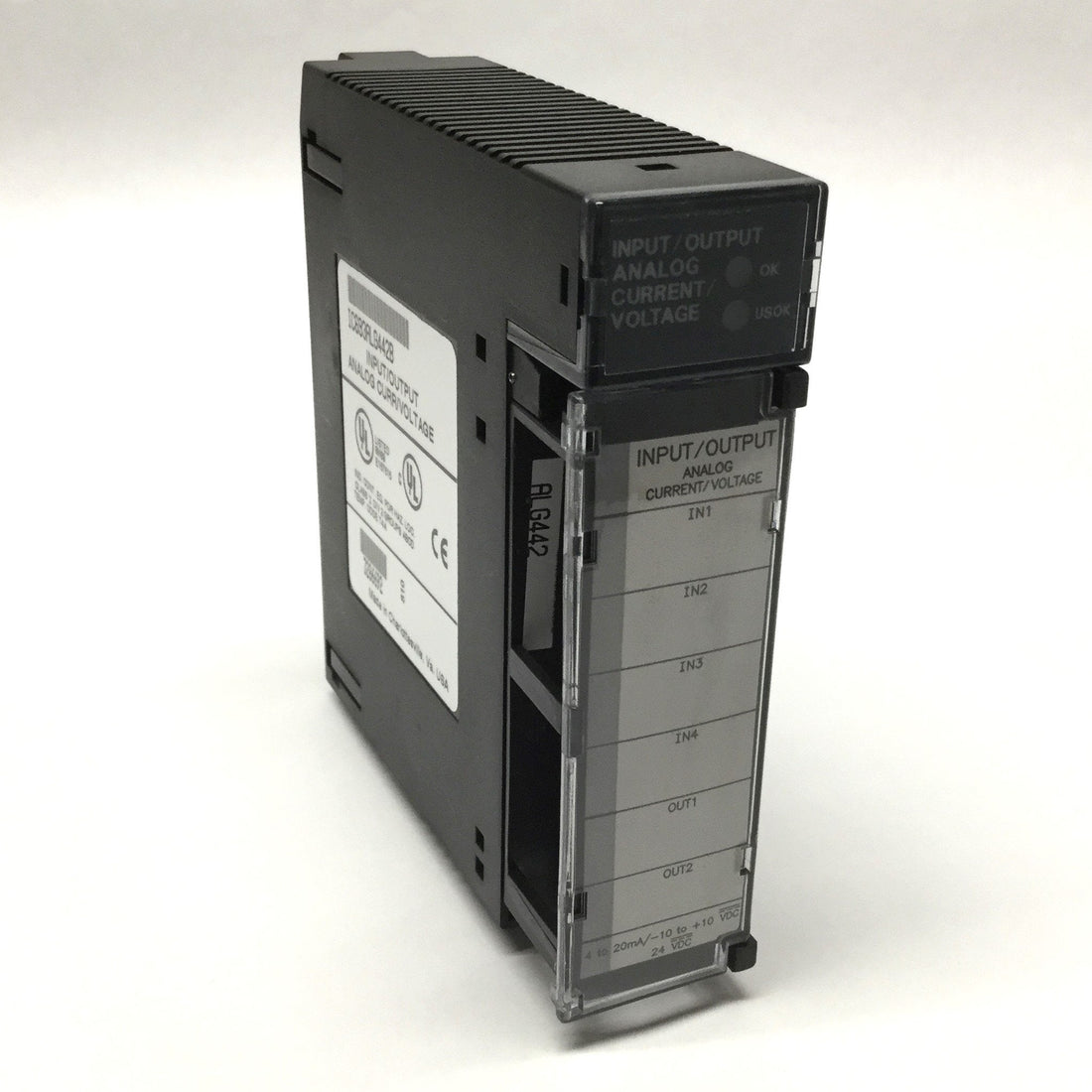

IC693ALG442B | GE Fanuc Series 90-30 Analog I/O Module, 4 Inputs / 2 Outputs
- Regular price
- $852.00
- Sale price
- $852.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693ALG442B
Description
The GE Fanuc IC693ALG442B is an analog combination I/O module for Series 90-30 PLC systems. Featuring four differential input channels and two single-ended output channels, it provides precise analog signal handling for industrial automation. Designed for accuracy and reliability, it supports both voltage and current ranges, making it suitable for diverse process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC693ALG442B |
| Subcategory | Analog I/O Module |
| Series | Series 90-30 |
| Module Type | Analog Combination I/O |
| Inputs | 4 differential |
| Outputs | 2 single-ended |
| Voltage Input Range | 0 to +10 V or –10 to +10 V |
| Current Input Range | 0–20 mA or 4–20 mA |
| Voltage Output Range | 0 to +10 V (unipolar), –10 to +10 V (bipolar) |
| Current Output Range | 0–20 mA or 4–20 mA |
| Update Rate | 4 ms (all channels) |
| Max Output Load | 5 mA |
| Power Consumption | 95 mA @ +5 V bus; 129 mA @ 24 VDC user supply |
| External Supply | 20–30 VDC (24 V nominal) |
| Installation | Metal enclosure required, not hot-swappable |
| Application | Process monitoring, sensor input, actuator control |
| Status | Discontinued by Manufacturer |
| Repairable | Yes |
| Weight | 0.85 lbs |
Information About IC693ALG442B
The IC693ALG442B is part of the GE Fanuc Series 90-30 family, a modular PLC platform widely used in manufacturing and process automation. This module is a combination type, offering both analog input and output capabilities in a single unit, reducing installation complexity. It supports voltage input ranges of 0 to +10 V or –10 to +10 V and current inputs of 0–20 mA or 4–20 mA, making it versatile for monitoring sensors and actuators. The two analog outputs provide unipolar or bipolar voltage signals and current loops for control functions. Operating with both CPU backplane power (+5 VDC) and external user supply (20–30 VDC), it ensures stable operation across multiple automation tasks.
Key Features:
- Combination I/O Module: Provides 4 analog inputs and 2 analog outputs in one unit.
- Voltage Input Range: 0 to +10 V or –10 to +10 V for flexible monitoring.
- Current Input Range: 0–20 mA or 4–20 mA differential inputs.
- Output Options: Voltage outputs (0 to +10 V, –10 to +10 V) and current outputs (0–20 mA, 4–20 mA).
- Update Rate: 4 ms for all channels, ensuring real-time responsiveness.
- Power Requirements: 95 mA from +5 VDC bus, 129 mA from +24 VDC user supply.
- Load Capacity: Maximum output load 5 mA.
- Installation Safety: Requires metal enclosure and must not be hot-swapped to avoid damage.
- Series Compatibility: Fully integrates with GE Fanuc Series 90-30 PLCs.
- Repairable: Serviceable module, reducing replacement costs.
The IC693ALG442B delivers the precision and flexibility needed for analog monitoring and control in automation systems.
