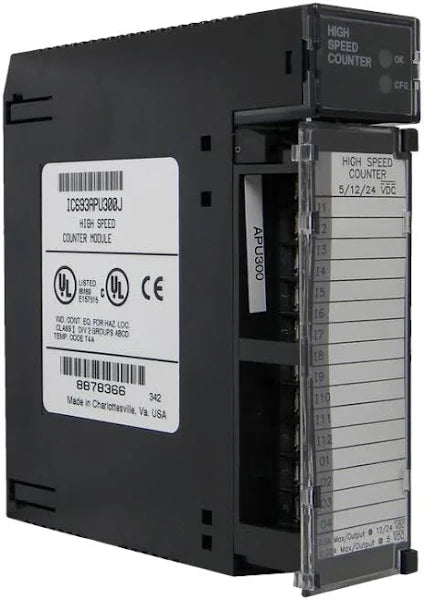

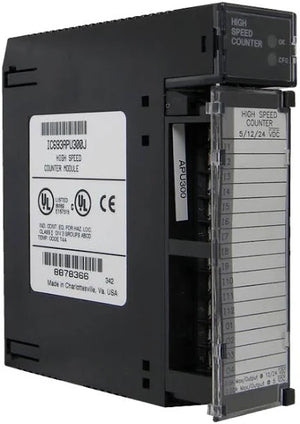

IC693APU300 | GE Fanuc | High-Speed counter module
IC693APU300 | GE Fanuc | High-Speed counter module

IC693APU300 | GE Fanuc | High-Speed counter module

Part #: IC693APU300 Manufactured by: GE Fanuc
Regular price
$727.00
Sale price
$727.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The IC693APU300 is a high-speed counter module designed for the Series 90-30 system by GE Fanuc, now part of Emerson Autom...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: IC693APU300
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for GE Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
IC693APU300 | GE Fanuc | High-Speed counter module
    IC693APU300 | GE Fanuc | High-Speed counter module
IC693APU300 | GE Fanuc | High-Speed counter module

Product Description P/N: IC693APU300

Description / Specifications

Description


The IC693APU300 is a high-speed counter module from the Series 90-30 line, previously manufactured by GE Fanuc and now under Emerson Automation. It offers twelve positive logic inputs operating at either 5VDC or 10-30 VDC, along with four positive logic outputs providing 500 mA at 10-30 VDC or 20 mA at 4.75 to 6 VDC output ratings. This module supports a maximum count rate of 200 kHz.




Technical Specifications



Specifications





Brand

GE Fanuc

Series

Series 90-30

Manufacturer

GE Fanuc (Former); Emerson Automation (Current)

Part Number

IC693APU300

Product Description

High-Speed Counter (HSC) module

No of input channels

Twelve (12) source inputs

Input voltage

5 VDC; 10-30 VDC

Maximum Count Rate

200 kHz

Output ratings

10 to 30 VDC @ 500 mA maximum; 4.75 to 6 VDC @ 20 mA max

No. of output channels

Four (4) Positive Logic outputs

Input/Output Type

Positive Logic

No. of Logic Inputs

12

Maximum count rate

up to 200 kHz

Output protection

Short circuit protection

Input Voltage Range

5 Volts DC, 10-30 Volts DC

Module operating voltage

5 VDC sourced from the backplane

Current draw

250 mA at 5VDC

No. Logic Outputs

4

CMOS Load Drive Capability

Yes

Output Voltage Range

4.7 to 40 Volts DC

Counter modes

Up; Down; bi-directional; Differential

LED indicators

BOARD OK and CONFIG OK

Compatible applications

metering, flowmeter and flow totalizing, velocity measurement, material handling, motion and process control applications

Output Protection

3 Amps Fuse for all points

Output Points

Powered by user supplied 5V, or 10 to 30 VDC

Applications supported

Turbine flowmeter, Meter proving, Velocity measurement, Material handling, Motion control, and Process control

LED indicators

BOARD OK; CONFIG OK

Isolation

250 Volts AC

Product Lifecycle Status

Discontinued/Obsolete

Power Consumption

250 mA at 5 Volts DC



Information About IC693APU300



The IC693APU300 is a high-speed counter module designed for the Series 90-30 system by GE Fanuc, now under Emerson Automation. It serves as an optional module integrated into industrial control systems.

This module incorporates twelve positive logic inputs, operable at either 5VDC or within the range of 10-30 VDC. Additionally, it includes four positive logic outputs, capable of delivering 500 mA at 10-30 VDC or 20 mA at the voltage range of 4.75 to 6 VDC.

Featuring a maximum count rate of 200 kHz, the IC693APU300 is optimized for high-speed counting applications, providing precision and reliability in industrial environments.

Formerly manufactured by GE Fanuc, the IC693APU300 is now part of Emerson Automation's product lineup, ensuring ongoing support and compatibility with Series 90-30 systems. Its robust design and versatile input/output configurations make it suitable for various industrial automation tasks.

With its positive logic inputs and outputs, the module ensures accurate signal processing and control, contributing to the efficiency and productivity of the automation processes it facilitates.

The module's flexibility in voltage input and output ranges allows for seamless integration into diverse industrial setups, accommodating different voltage requirements and configurations.

As part of the Series 90-30 system, the IC693APU300 adheres to stringent quality and performance standards, ensuring consistent and reliable operation in demanding industrial environments.
