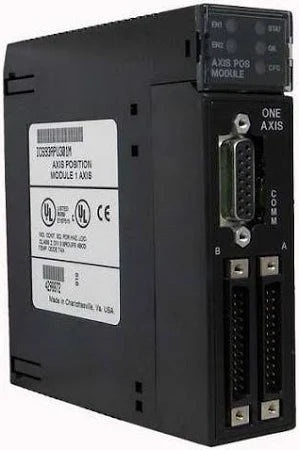

IC693APU301 | Ge Fanuc Axis Positioning Module
- Regular price
- $1,359.00
- Sale price
- $1,359.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693APU301
Description
The IC693APU301 Axis Positioning Module (APM) from the Series 90-30 PLC platform, initially manufactured by GE Fanuc and now under Emerson Automation, controls a single motion axis for servo motor operations and motion control. It features a microprocessor-based design that integrates PLC logic with high-performance control, supporting standard and follower modes. The module includes a 9-pin axis port and Connector A for APM connections. It is compatible with CPUs like 311, 313, 323, and CPU 311 or higher.
Technical Specifications
| Brand | GE FANUC |
| Category | PLCs/Machine Control |
| Part Number | IC693APU301 |
| Subcategory | PLC Module/Rack |
| Series | Series 90-30 |
| Product Description | Axis Positioning Module (APM) |
| No. of Axes | 1 Axis |
| Servo Loop Update | 1 millisecond |
| Communication Ports | One (1) Axis module; 25-pin Servo connection |
| Operating Modes | Standard mode; Follower mode |
| Module LED indicators | EN1, EN2, STST, OK and CFG |
| Connector Types | 24-pin High Density, 25-pin D Type |
| Slot width | Single slot |
| Compatibility | Series 90-30 PLCs |
| Compatible CPU | CPU 311, CPU 313, CPU 323, CPU 331 and higher |
| No. of modules per baseplate | 3 |
| Compatible cables | IC693CBL311 (10 feet/3 meters); IC693CBL319 (3 feet/1 meter); IC693CBL317 (10 feet/3 meters) with an 8” external shield pigtail and IC693CBL320 (3 feet/1 meter) with an 8” external shield pigtail |
Information About IC693APU301
The IC693APU301 is an Axis Positioning Module (APM) from the Series 90-30 Programmable Logic Controller (PLC) series, originally manufactured by GE Fanuc Automation and now under Emerson Automation. This module controls a single axis for motion and position control of servo motors and can be configured for standard or follower mode.
In standard mode, the IC693APU301 integrates PLC logic and high-performance motion control into a single system. In follower mode, it provides high-performance electronic gearing for continuous master and slave applications. The module features a 9-pin D-shell axis port connector and a high-density port for APM connections, along with LED status indicators such as EN1, EN2, STST, OK, and CFG LEDs.
This APM is compatible with CPUs such as CPU 311, CPU 313, and CPU 323, allowing up to three APM modules per baseplate. With CPU 331 and higher, up to eight APM modules can be installed, with a maximum of three per baseplate. Motion programs are developed using the Motion Programmer software package and configured using VersaPro software version 1.1 or later or Logic-Developer PLC.
The module supports various communication cables, including IC693CBL311 (10 feet/3 meters), IC693CBL319 (3 feet/1 meter), IC693CBL317 (10 feet/3 meters) with an 8” external shield pigtail, and IC693CBL320 (3 feet/1 meter) with an 8” external shield pigtail.
The IC693APU301 is easy to use and fully programmable, integrating high-performance control into PLC systems. It allows for electronic gearing in follower mode and combines motion control with PLC data transfer in standard mode. The APM can be installed in any Series 90-30 CPU or expansion baseplate. Up to 10 motion programs can be stored in the APM motion programmer software package. This module provides a real-time interface between the PLC and a servo-controlled axis, enhancing application capabilities, troubleshooting, and general-purpose input efficiency.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
Description
The IC693APU301 Axis Positioning Module (APM) from the Series 90-30 PLC platform, initially manufactured by GE Fanuc and now under Emerson Automation, controls a single motion axis for servo motor operations and motion control. It features a microprocessor-based design that integrates PLC logic with high-performance control, supporting standard and follower modes. The module includes a 9-pin axis port and Connector A for APM connections. It is compatible with CPUs like 311, 313, 323, and CPU 311 or higher.
Technical Specifications
| Brand | GE FANUC |
| Category | PLCs/Machine Control |
| Part Number | IC693APU301 |
| Subcategory | PLC Module/Rack |
| Series | Series 90-30 |
| Product Description | Axis Positioning Module (APM) |
| No. of Axes | 1 Axis |
| Servo Loop Update | 1 millisecond |
| Communication Ports | One (1) Axis module; 25-pin Servo connection |
| Operating Modes | Standard mode; Follower mode |
| Module LED indicators | EN1, EN2, STST, OK and CFG |
| Connector Types | 24-pin High Density, 25-pin D Type |
| Slot width | Single slot |
| Compatibility | Series 90-30 PLCs |
| Compatible CPU | CPU 311, CPU 313, CPU 323, CPU 331 and higher |
| No. of modules per baseplate | 3 |
| Compatible cables | IC693CBL311 (10 feet/3 meters); IC693CBL319 (3 feet/1 meter); IC693CBL317 (10 feet/3 meters) with an 8” external shield pigtail and IC693CBL320 (3 feet/1 meter) with an 8” external shield pigtail |
Information About IC693APU301
The IC693APU301 is an Axis Positioning Module (APM) from the Series 90-30 Programmable Logic Controller (PLC) series, originally manufactured by GE Fanuc Automation and now under Emerson Automation. This module controls a single axis for motion and position control of servo motors and can be configured for standard or follower mode.
In standard mode, the IC693APU301 integrates PLC logic and high-performance motion control into a single system. In follower mode, it provides high-performance electronic gearing for continuous master and slave applications. The module features a 9-pin D-shell axis port connector and a high-density port for APM connections, along with LED status indicators such as EN1, EN2, STST, OK, and CFG LEDs.
This APM is compatible with CPUs such as CPU 311, CPU 313, and CPU 323, allowing up to three APM modules per baseplate. With CPU 331 and higher, up to eight APM modules can be installed, with a maximum of three per baseplate. Motion programs are developed using the Motion Programmer software package and configured using VersaPro software version 1.1 or later or Logic-Developer PLC.
The module supports various communication cables, including IC693CBL311 (10 feet/3 meters), IC693CBL319 (3 feet/1 meter), IC693CBL317 (10 feet/3 meters) with an 8” external shield pigtail, and IC693CBL320 (3 feet/1 meter) with an 8” external shield pigtail.
The IC693APU301 is easy to use and fully programmable, integrating high-performance control into PLC systems. It allows for electronic gearing in follower mode and combines motion control with PLC data transfer in standard mode. The APM can be installed in any Series 90-30 CPU or expansion baseplate. Up to 10 motion programs can be stored in the APM motion programmer software package. This module provides a real-time interface between the PLC and a servo-controlled axis, enhancing application capabilities, troubleshooting, and general-purpose input efficiency.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
