IC693CMM302 | Ge Fanuc Series 90-30 Programmable Logic Controller (PAC)

Description

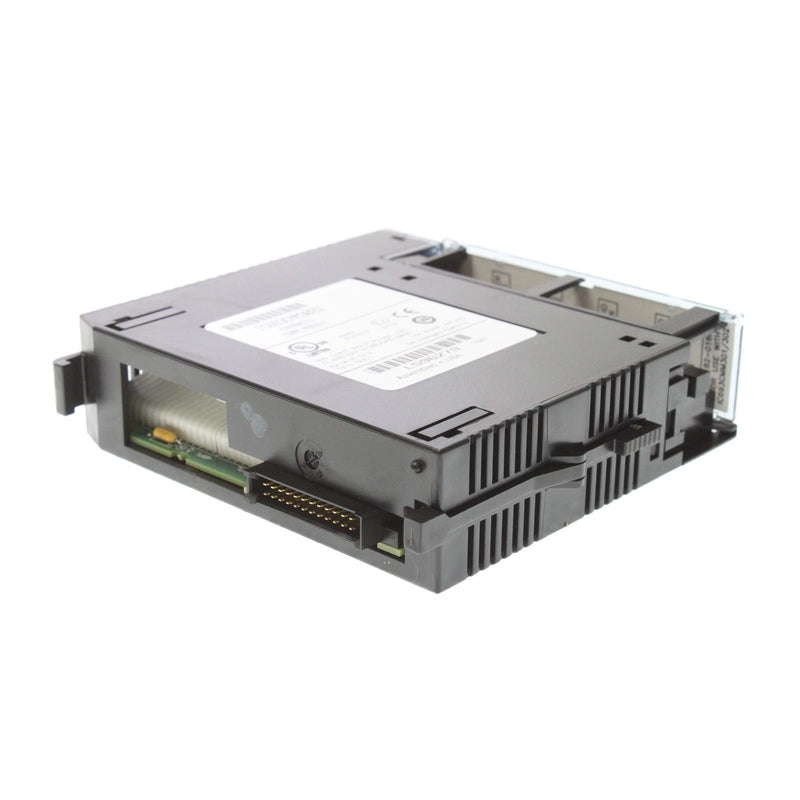

The IC693CMM302 is a Genius communication module from the Series 90-30 Programmable Logic Controller (PLC) series, originally manufactured by GE Fanuc Automation, now under Emerson Automation. This module supports data exchange with up to 31 devices, featuring a global data length of 128 bytes for both transmission and reception. It supports register addresses including %G, %I, %Q, %AI, %AQ, and %R. Typically used for implementing distributed I/O architecture, the IC693CMM302 facilitates efficient data monitoring, peer-to-peer communication, and master-slave communication within the system.

Technical Specifications

Information About IC693CMM302

The IC693CMM302 is a Genius Communication module from the Series 90-30 Programmable Logic Controller (PLC) series, originally manufactured by GE Fanuc Automation and now under Emerson Automation. This single-slot module provides Genius protocol connectivity, allowing communication with up to 31 devices, and a maximum of 62 devices per controller with the configuration of up to two IC693CMM302 modules per controller.

The IC693CMM302 supports 128 bytes of transmitted and 128 bytes of received global data per module, and it integrates with various PLC registers such as Global register (%G), Discrete Input (%I), Discrete Output (%Q), Analog Input (%AI), Analog Output (%AQ), and Register memory (%R). It also supports software-based diagnostics, including status bits and fault reporting to Series 90-70 PLCs.

Environmental ratings for the IC693CMM302 include an operating temperature range of 0°C to +60°C (+32°F to +140°F), a storage temperature range of –25°C to +70°C (–13°F to +158°F), and humidity tolerance of 5% to 95% (non-condensing). Mechanically, it can withstand 0.2-inch displacement at 5Hz to 10Hz, 1 G at 10Hz to 200Hz operating vibration, and 5 G for 10ms duration operating shock.

This module also supports data monitoring through a personal or industrial computer, data monitoring using I/O blocks, device communication over the Genius bus, and I/O emulation. It has a backplane power consumption of less than 300 mA at 5VDC. Besides the Series 90-30 PLC, it can be used with Series 90-70, Series Six PLCs, and the Genius Hand-Held Monitor (HHM) for local configuration.

Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
