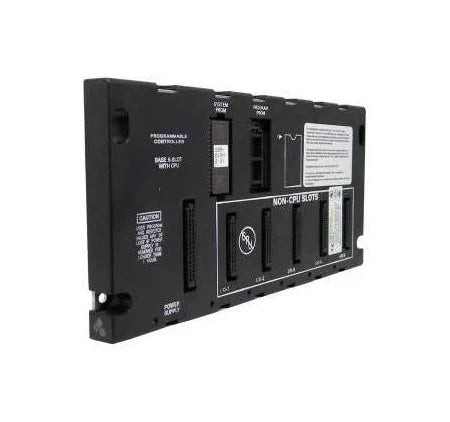

IC693CPU313 | Ge Fanuc Embedded CPU with a 5-slotted Baseplate
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693CPU313
Description
The IC693CPU313 is a Series 90-30 component manufactured by GE Fanuc. It is a 5-slot embedded CPU baseplate, accommodating non-CPU, I/O, and power supply slots. The embedded CPU uses an 80188 processor with a clock speed of 10 MHz, a typical scan rate of 0.6 milliseconds per 1K of logic (boolean contacts), and a maximum user program memory of 12K bytes. It has one serial port that supports SNP slave and SNP-X slave protocols.
Technical Specifications
| Brand | GE FANUC |
| Category | PLCs/Machine Control |
| Part Number | IC693CPU313 |
| Subcategory | PLC Module/Rack |
| Series | Series 90-30 |
| Product Description | Embedded CPU baseplate |
| No. of I/O slots | 5 |
| Product Type | Baseplate with Embedded CPU |
| No. of Power supply slots | 1 |
| Expansion baseplate slot | None |
| CPU Type | Turbo CPU |
| User memory | 12 Kbytes |
| Operating Temperature | 32 to 140 degrees Fahrenheit |
| Processor type | 80188 |
| Typical scan rate | 0.6 ms per 1K of Boolean logic |
| Processor speeds | 10 MHz |
| Expandable | None |
| Discrete Input Points - %I | 160 (maximum - combined inputs + outputs) |
| Discrete Output Points - %Q | 320 (maximum - combined inputs + outputs) |
| Analog Inputs - %AI | 64 words |
| Analog Outputs - %AQ | 32 words |
| Built-in Serial Ports | 1 (uses connector on PLC power supply). Supports SNP slave and SNP-X slave protocols |
| Current load | 410 mA |
| Bus voltage | +5VDC |
Information About IC693CPU313
The IC693CPU313 is a baseplate with an embedded Turbo CPU from GE Fanuc’s Series 90-30 Programmable Logic Controller (PLC) platform. This 5-slot baseplate hosts non-CPU, I/O, and power supply slots. The embedded CPU features an 80188 processor with a clock speed of 10 MHz, a typical scan rate of 0.6 milliseconds per 1K of Boolean logic, and a maximum user program memory of 12KB (6KB before Release 7). It supports up to 160 %I input points and 160 %Q output points, as well as 64 words for analog input and 32 words for analog output.
The IC693CPU313 baseplate includes one built-in serial port that supports SNP and SNP-X slave protocols. It supports shift register instructions, timer and counter instructions, but it does not support PCM and CCM modules. The unit requires a load power supply of 430 mA at 5V DC. It includes a battery-backed RAM and a super capacitor for memory backup when power is removed. Optional EPROM and EEPROM modules can be used for more secure data storage.
This baseplate operates within a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and is designed to accommodate up to five I/O modules. It also has an additional slot for the power supply module. The IC693CPU313 baseplate provides flexibility and reliability for various automation applications within the GE Fanuc Series 90-30 PLC systems.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
