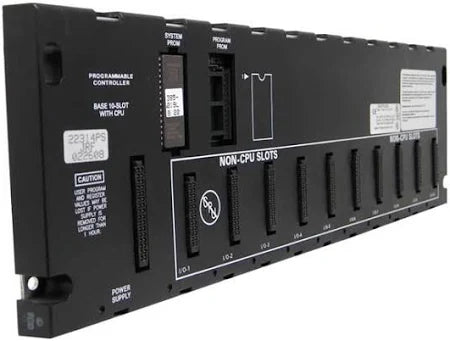

IC693CPU323 | GE Fanuc 10-Slot Base Turbo CPU
IC693CPU323 | GE Fanuc 10-Slot Base Turbo CPU
IC693CPU323 | GE Fanuc 10-Slot Base Turbo CPU
    IC693CPU323 | GE Fanuc 10-Slot Base Turbo CPU
IC693CPU323 | GE Fanuc 10-Slot Base Turbo CPU

IC693CPU323 | GE Fanuc 10-Slot Base Turbo CPU

Part #: IC693CPU323 Manufactured by: GE Fanuc
Regular price
$1,025.00
Sale price
$1,025.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The GE Fanuc IC693CPU323 is a 10-slot Embedded CPU baseplate from the Series 90-30 family. Powered by an 80188 processor r...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: IC693CPU323
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for GE Fanuc
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: IC693CPU323

Description / Specifications

Description

The GE Fanuc IC693CPU323 is a Series 90-30 component designed for industrial applications. It serves as a 10-slot Embedded CPU baseplate, accommodating non-CPU or I/O slots and power supply slots within its structure. Powered by an 80188 processor running at 10 MHz, it operates with a typical scan rate of 0.6 milliseconds per 1K of logic (Boolean contacts) and supports a maximum user program memory of 12Kbytes. The CPU includes one serial port that supports SNP slave and SNP-X slave protocols for efficient communication in control systems.



Technical Specifications

Manufacturer

GE Fanuc

Series

Series 90-30

Part Number

IC693CPU323

Product Type

Embedded CPU Baseplate

Voltage Input

5V DC

Current Input

430 mA

Operating Temperature

0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)

Timers/Counters

340

Serial Ports

1

Discrete I/O

320

Load Required from Power Supply

430 milliamps from +5 VDC supply

Processor Speed

10 MHz

Processor Type

80188

Typical Scan Rate

0.6 milliseconds per 1K of logic (boolean contacts)

User Program Memory (maximum)

12K Bytes (6K bytes prior to release 7)

Discrete Input Points (%I)

320 (maximum - combined inputs + outputs)

Discrete Output Points (%Q)

320 (maximum - combined outputs + inputs)

Discrete Global Memory (%G)

1280 bits

Internal Coils (%M)

1024 bits

Output (Temporary) Coils (%T)

256 bits

System Status References (%S)

128 bits (%S, %SA, %SB, %SC - 32 bits each)

Register Memory (%R)

1024 words

Analog Inputs (%AI)

64 words

Analog Outputs (%AQ)

32 words







Information About IC693CPU323

The GE Fanuc IC693CPU323 is a component of the Series 90-30 family manufactured by GE Fanuc. It serves as a 10-slot Embedded CPU baseplate, designed to accommodate non-CPU or I/O slots along with power supply slots.

At its core, the IC693CPU323 features an 80188 processor clocked at 10 MHz, enabling it to achieve a typical scan rate of 0.6 milliseconds per 1K of logic (boolean contacts). It supports a maximum user program memory of 12Kbytes, essential for managing complex automation tasks efficiently.

Communication capabilities include one serial port that supports SNP slave and SNP-X slave protocols, facilitating seamless integration into industrial control systems. This ensures reliable data exchange and control across various devices and modules within a networked environment.

The IC693CPU323 is engineered to operate within a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), ensuring robust performance in diverse industrial environments. It is designed to handle up to 340 timers/counters, enhancing its versatility in managing time-sensitive operations.





Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The GE Fanuc IC693CPU323 is a Series 90-30 component designed for industrial applications. It serves as a 10-slot Embedded CPU baseplate, accommodating non-CPU or I/O slots and power supply slots within its structure. Powered by an 80188 processor running at 10 MHz, it operates with a typical scan rate of 0.6 milliseconds per 1K of logic (Boolean contacts) and supports a maximum user program memory of 12Kbytes. The CPU includes one serial port that supports SNP slave and SNP-X slave protocols for efficient communication in control systems.



Technical Specifications

Manufacturer

GE Fanuc

Series

Series 90-30

Part Number

IC693CPU323

Product Type

Embedded CPU Baseplate

Voltage Input

5V DC

Current Input

430 mA

Operating Temperature

0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)

Timers/Counters

340

Serial Ports

1

Discrete I/O

320

Load Required from Power Supply

430 milliamps from +5 VDC supply

Processor Speed

10 MHz

Processor Type

80188

Typical Scan Rate

0.6 milliseconds per 1K of logic (boolean contacts)

User Program Memory (maximum)

12K Bytes (6K bytes prior to release 7)

Discrete Input Points (%I)

320 (maximum - combined inputs + outputs)

Discrete Output Points (%Q)

320 (maximum - combined outputs + inputs)

Discrete Global Memory (%G)

1280 bits

Internal Coils (%M)

1024 bits

Output (Temporary) Coils (%T)

256 bits

System Status References (%S)

128 bits (%S, %SA, %SB, %SC - 32 bits each)

Register Memory (%R)

1024 words

Analog Inputs (%AI)

64 words

Analog Outputs (%AQ)

32 words







Information About IC693CPU323

The GE Fanuc IC693CPU323 is a component of the Series 90-30 family manufactured by GE Fanuc. It serves as a 10-slot Embedded CPU baseplate, designed to accommodate non-CPU or I/O slots along with power supply slots.

At its core, the IC693CPU323 features an 80188 processor clocked at 10 MHz, enabling it to achieve a typical scan rate of 0.6 milliseconds per 1K of logic (boolean contacts). It supports a maximum user program memory of 12Kbytes, essential for managing complex automation tasks efficiently.

Communication capabilities include one serial port that supports SNP slave and SNP-X slave protocols, facilitating seamless integration into industrial control systems. This ensures reliable data exchange and control across various devices and modules within a networked environment.

The IC693CPU323 is engineered to operate within a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), ensuring robust performance in diverse industrial environments. It is designed to handle up to 340 timers/counters, enhancing its versatility in managing time-sensitive operations.





Manufacturer information

GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
