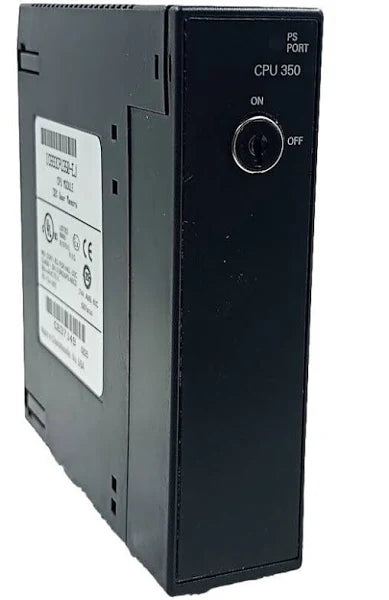

IC693CPU350 | GE Fanuc | Emerson controller, I/O system, and speciality module
- Regular price
- $965.00
- Sale price
- $965.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693CPU350
The IC693CPU350 by GE Fanuc Emerson serves as a multifunctional controller, I/O system, and specialty module, tailored to accommodate varied industrial demands. Featuring 32Kbytes of user memory, 4K I/O, 8 Racks, and a logic execution speed of 0.22msec/K, it integrates seamlessly with advanced modules including Ethernet and various bus modules for enhanced control capabilities.
Engineered within a singular architecture, the IC693CPU350 caters to diverse applications such as complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, and food processing. With its configurable system design, users can optimize space and reduce costs, adapting the module to digital and analog interfaces, direct connect wiring, and local or remote I/O systems.
Technical Specifications
|
Manufacturer |
GE Fanuc |
|
Series |
Series 90-30 |
|
Part Number |
IC693CPU350 |
|
Product Type |
CPU |
|
Compatible With |
GE Fanuc Series 90-30 PLCs |
|
Processor Speed |
25 MHz |
|
Operating Temperature |
0 to 60 degrees Celsius |
|
Current Input |
670 mA |
|
Voltage Input |
5V DC |
|
Timers/Counters |
>2000 |
|
CPU Type |
Single slot CPU module |
|
Total Baseplates per System |
8 (CPU baseplate + 7 expansion and/or remote) |
|
Load Required from Power Supply |
670 milliamps from +5 VDC supply |
|
Processor Type |
80386EX |
|
Typical Scan Rate |
0.22 milliseconds per 1K of logic |
|
User Program Memory (maximum) |
32K Bytes (not configurable) |
|
Discrete Input Points - %I |
2,048 |
|
Discrete Output Points - %Q |
2,048 |
|
Discrete Global Memory - %G |
1,280 bits |
|
Internal Coils - %M |
4,096 bits |
|
Output (Temporary) Coils - %T |
256 bits |
|
System Status References - %S |
128 bits (%S, %SA, %SB, %SC - 32 bits each) |
|
Register Memory - %R |
9,999 words |
|
Analog Inputs - %AI |
2,048 words |
|
Analog Outputs - %AQ |
512 words |
|
System Registers |
28 words (%SR) |
|
Timers/Counters |
>2,000 |
|
Shift Registers |
Yes |
|
Built-in Serial Port |
1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave protocol support; PCM module for RTU master support. |
|
Communications |
LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules. |
|
Override |
Yes |
|
Battery Backed Clock |
Yes |
|
Interrupts |
Supports the periodic subroutine feature |
|
Type of Memory Storage |
RAM and Flash |
|
PCM/CCM Compatibility |
Yes |
|
Floating Point Math Support |
Yes. Firmware-based in firmware releases 9.0 and later. |
Information About IC693CPU350
The IC693CPU350, manufactured by GE Fanuc Emerson, serves as a versatile controller, I/O system, and specialty module tailored to address the requirements of flexible industrial solutions. Featuring 32Kbytes user memory, 4K I/O, 8 Racks, and a logic execution time of 0.22msec/K, it offers compatibility with advanced modules like Ethernet, various bus modules, and control systems.
Designed within a unified architecture, the IC693CPU350 caters to a multitude of applications, including complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, food processing, and continuous emission monitoring. Its adaptable configuration capability helps conserve space and minimize costs.
The IC693CPU350 boasts built-in Ethernet communication supporting SRTP and Modbus TCP/IP application protocols, facilitating real-time connectivity across systems. Its scalable processing power allows users to create systems suitable for current needs while accommodating future upgrades without necessitating software changes. The integrated motion control system ensures high performance in point-to-point applications.
Equipped with various field bus interfaces, the IC693CPU350 enables distributed control and I/O operations. Users can choose from a range of easy-to-install and configure field bus interface modules. Programmable using Proficy Logic Developer PLC-Machine Edition, it supports programming languages such as Ladder Diagram (LDI), Instruction List (IL), Structural Text (ST), and C Block.
This low-cost solution features redundant CPUs and power supplies for high availability applications. The IC693CPU350 is a single-slot CPU module with one CPU baseplate and seven expansion and/or remote baseplates. It utilizes an 80386EX processor with a speed of 25 MHz, operating within an ambient temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
