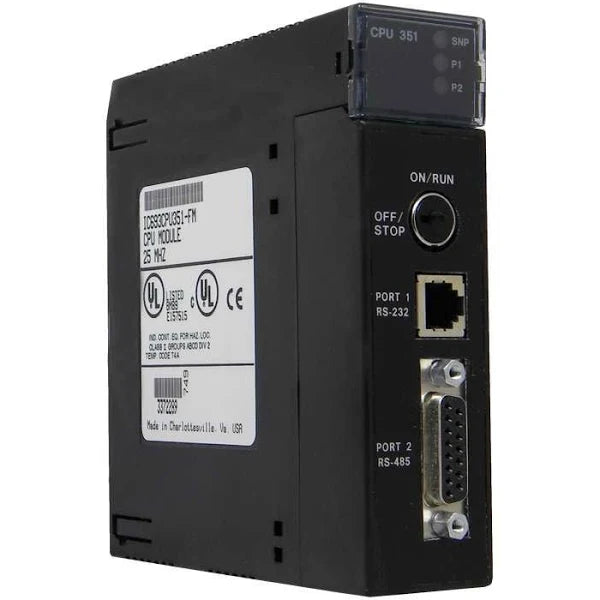

IC693CPU351 | GE Fanuc | CPU Module
- Regular price
- $2,779.00
- Sale price
- $2,779.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: IC693CPU351
Description
Technical Specifications
Specifications
|
Part # |
IC693CPU351 |
|
Manufacturer |
FANUC |
|
Brand |
GE FANUC |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack CPU Type |
|
Subcategory |
Single slot CPU module |
|
Total Baseplates per System |
8 (CPU baseplate + 7 expansion and/or remote) |
|
Load Required from Power Supply |
890 milliamps from +5 VDC supply |
|
Processor Speed |
25 MegaHertz |
|
Processor Type |
80386EX |
|
Typical Scan Rate |
0.22 milliseconds per 1K of logic (Boolean contacts) |
|
User Memory (total) |
240K (245,760) Bytes |
|
Product Type |
Central Processing Unit (CPU) |
|
Processor |
Intel 386EX Processor |
|
Voltage Rating |
5 Volts DC |
|
Backplane Current Rating |
890 Milliamps |
|
Power Supply |
IC693PWR330 High-Capacity Power Supply |
|
Maximum Discrete I/O Capacity |
4096 I/O Points |
|
Maximum Analog I/O Capacity |
2048 Inputs, 512 Outputs |
Information About IC693CPU351
The IC693CPU351, a Series 90-30 component manufactured by GE Fanuc, is a single-slot modular CPU designed for industrial applications. It features an 80386EX processor operating at a clock speed of 25MHz, providing computational capabilities for diverse control tasks. With a maximum user program memory of 240Kbytes, it caters to the storage and execution requirements of industrial control programs.
This CPU module supports a substantial number of inputs and outputs. It accommodates 2048 discrete inputs and 2048 discrete outputs, meeting the demands of complex automation systems. Additionally, it boasts a capacity of 32,640 (max) analog input words and 32,640 analog output words (max), facilitating the integration of analog signals in industrial processes.
Equipped with three serial ports, the IC693CPU351 offers communication versatility. These serial ports support SNP/SNP-X slave protocols on the power supply connector, RTU slave, and SNP/SPNX master slave of serial ports 1 and 2. This multi-port configuration enhances connectivity and communication options in industrial networks.
The processor exhibits a typical scan rate of 0.3 milliseconds per 1K of Boolean logic, ensuring swift and efficient execution of control programs. This quick scan rate is essential for real-time control applications where timely response is critical.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
