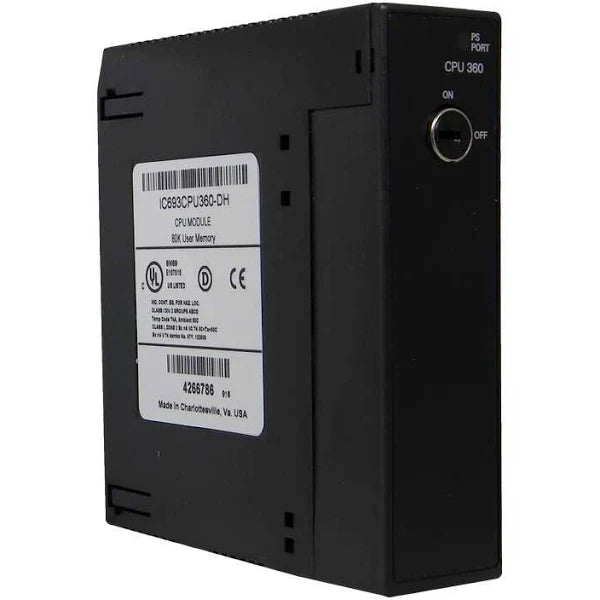

The GE Fanuc IC693CPU360 is a Central Processing Unit (CPU) 360 Module designed for the Series 90-30 range. It features 240 Kbytes of Configurable User Memory and accommodates 4096 discrete I/O points across 8 racks. The typical scan rate for the CPU 360 module is 0.22 mS per 1K of logic memory. While lacking built-in serial ports, it can utilize the connector on a PLC power supply.

The IC693CPU360 module incorporates both RAM and Flash memory and is compatible with Firmware version 10.60, consistent with other IC693 modules. It is integrated into the Series 90-30 range, enabling it to be embedded into the backplane for entry-level applications with low I/O counts, thus allowing all slots to be available for input or output usage.

Compatible with Ethernet, various bus modules, and control devices, the CPU module enhances operational versatility. The mid-range CPU models offer modular configurations with varied memory sizes, as well as increased functionality such as Programmable Coprocessor module support, overrides, and a battery-backed clock.

High-performance CPUs, based on the latest 386EX processor, ensure fast computation and high throughput. These modules accommodate up to 4,096 I/O points, commencing at 32K of memory, and support programming in multiple standard languages. The IC693CPU360 exemplifies a high-performance CPU module within the Series 90-30 range.
