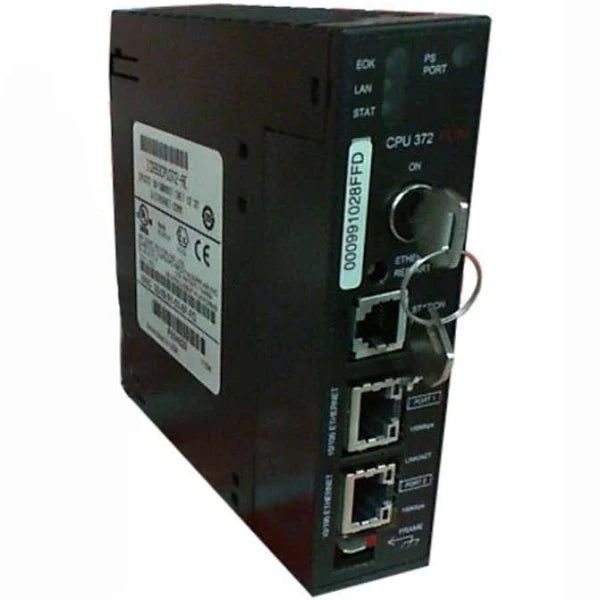

IC693CPU372 | GE Fanuc | Single-slot modular CPU
- Regular price
- $6,099.00
- Sale price
- $6,099.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IC693CPU372
Description
The IC693CPU372, part of the Series 90-30 lineup manufactured by GE Fanuc, is a single-slot modular CPU designed for industrial applications. It features an AMD SC520 processor with a clock speed of 133MHz and a maximum user program memory capacity of 240Kbytes.
Equipped with extensive input and output capabilities, the IC693CPU372 supports up to 2048 discrete inputs and 2048 discrete outputs. Additionally, it offers a maximum of 32,640 analog input words and 32,640 analog output words.
Technical Specifications
Specifications
Part # |
IC693CPU372 |
Manufacturer |
FANUC |
Brand |
GE FANUC |
Category |
PLCs/Machine Control |
Subcategory |
PLC Module/Rack Processor Speed |
Processor Speed |
133 MHz |
Processor Type |
AMD SC520 |
Execution Time (Boolean Operation) |
0.15 msec per Boolean instruction |
Type of Memory Storage |
RAM and Flash |
Discrete Input Points - %I |
2,048 (fixed) |
Discrete Output Points - %Q |
2,048 (fixed) |
Discrete Global Memory - %G |
1,280 bits (fixed) |
Internal Coils - %M |
4,096 bits (fixed) |
Output (Temporary) Coils - %T |
256 bits (fixed) |
System Status References - %S |
128 bits (%S, %SA, %SB, %SC - 32 bits each) (fixed) |
Register Memory - %R |
Configurable 128 to 32,640 words |
Analog Inputs - %AI |
Configurable 128 to 32,640 words |
Analog Outputs - %AQ |
Configurable 128 to 32,640 words |
System Registers - %SR |
28 words (fixed) |
Timers/Counters |
>2,000 (depends on available user memory) |
Battery Backed Clock |
Yes |
Battery Back Up (Number of months) |
1.2 months for internal battery (installed in the power supply) 15 months with external battery (IC693ACC302) |
Load Required from Power Supply |
7.4 watts of 5VDC. High Capacity power supply required. |
Hand Held Programmer |
CPU372 does not support Hand Held Programmer |
Program Store Devices supported |
PLC Program Download Device (PPDD) and EZ Program Store Device |
Total Baseplates per System |
8 (CPU baseplate + 7 expansion and/or remote) |
Interrupt Support |
Supports the periodic subroutine feature |
Communications and Programmable Coprocessor Compatibility |
Yes |
Override |
Yes |
Floating Point Math |
Yes, hardware floating point math |
Information About IC693CPU372
The IC693CPU372 is a component of the Series 90-30 manufactured by GE Fanuc. As a single-slot modular CPU, it incorporates an AMD SC520 processor operating at a clock speed of 133MHz. The maximum user program memory capacity is 240Kbytes.
Functionally, it accommodates 2048 discrete inputs and 2048 discrete outputs. Moreover, it supports a maximum of 32,640 analog input words and 32,640 analog output words.
For communication capabilities, the IC693CPU372 features two built-in Ethernet interfaces supporting transmission speeds of 10/100 Mbps. These interfaces are compatible with industrial Ethernet and Modbus TCP/IP protocols.
In terms of reliability and robustness, the IC693CPU372 ensures efficient data processing and communication within the Series 90-30 system. It facilitates seamless integration with various industrial equipment and automation processes, making it suitable for a wide range of applications in industrial environments.
With its versatile functionality and dependable performance, the IC693CPU372 enhances system efficiency and productivity. It provides users with a reliable computing platform for controlling and monitoring critical processes in industrial automation systems.
The inclusion of two Ethernet interfaces allows for flexible networking options and facilitates seamless communication with other devices and systems. This feature enables efficient data exchange and integration across different components of the automation infrastructure.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
