Product Description P/N: IC693DSM314
Description

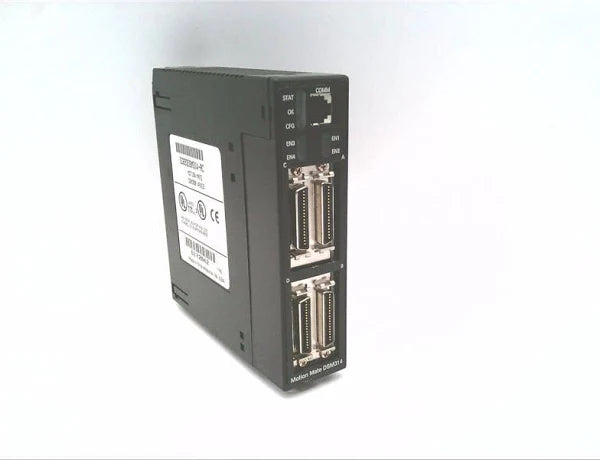

The GE Fanuc IC693DSM314 is a 4-axis Motion Mate digital servo module designed for high-performance motion control within Series 90-30 PLC systems. Supporting both digital and analog operation modes, it delivers precise multi-axis coordination with block processing speeds under 5 milliseconds. Its integrated programming and non-volatile storage capabilities make it suitable for complex automated motion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs/Machine Control |
| Part Number | IC693DSM314 |
| Subcategory | PLC Module/Rack |
| Series | Series 90-30 |
| Operation Modes | Digital, analog |
| Number of Axes | 4 |
| Block Processing Time | <5 ms |
| Position Resolution | −536,870,912 to 536,870,911 units/s |
| Velocity Resolution | 1 to 8,388,607 units/s |
| Acceleration Resolution | 1 to 1,073,741,823 units/s |
| Non-Volatile Storage | 10 programs, 40 subroutines |
| Backplane Consumption | 450 mA at 5 VDC (typical) |
| Motion Features | Torque mode, velocity feedforward, electronic CAM |
| Software Compatibility | VersaPro, CIMPLICITY ME |
| Position Inputs | Two capture strobe inputs per axis |
| Operating Temperature | 0 to 60°C (32–140°F) |
| Storage Temperature | −40 to 85°C (−40–185°F) |
| Application | Multi-axis PLC-integrated motion control |
Information About IC693DSM314
The IC693DSM314 is part of the GE Fanuc Series 90-30 family and functions as a dedicated motion control module for PLC-based automation systems. It provides four axes of coordinated control, enhanced by features such as velocity feedforward, torque mode operation, and an electronic CAM for improved motion accuracy. The module includes local logic support and allows users to scale programming units, enabling flexible configuration across diverse machinery. Programming and setup are performed using GE Fanuc tools such as VersaPro or CIMPLICITY ME, ensuring seamless integration with established Series 90-30 infrastructures.
Key Features:
- 4-Axis Motion Control: Supports coordinated control for multi-axis machinery.
- Dual Operation Modes: Functions in both digital and analog modes for application flexibility.
- Fast Block Processing: Executes motion blocks in under 5 ms for responsive control.
- High-Resolution Programming Units: Offers wide dynamic ranges for position, velocity, and acceleration.
- Non-Volatile Storage: Stores up to 10 programs and 40 subroutines internally.
- Advanced Motion Functions: Includes torque mode, velocity feedforward, and position error integration.
- PLC Integration: Designed for Series 90-30 backplanes with 450 mA at 5 VDC typical consumption.
- Software Compatibility: Configurable through VersaPro and CIMPLICITY ME.
The IC693DSM314 delivers the reliability and precision required for advanced multi-axis motion control in PLC-based automation systems.
