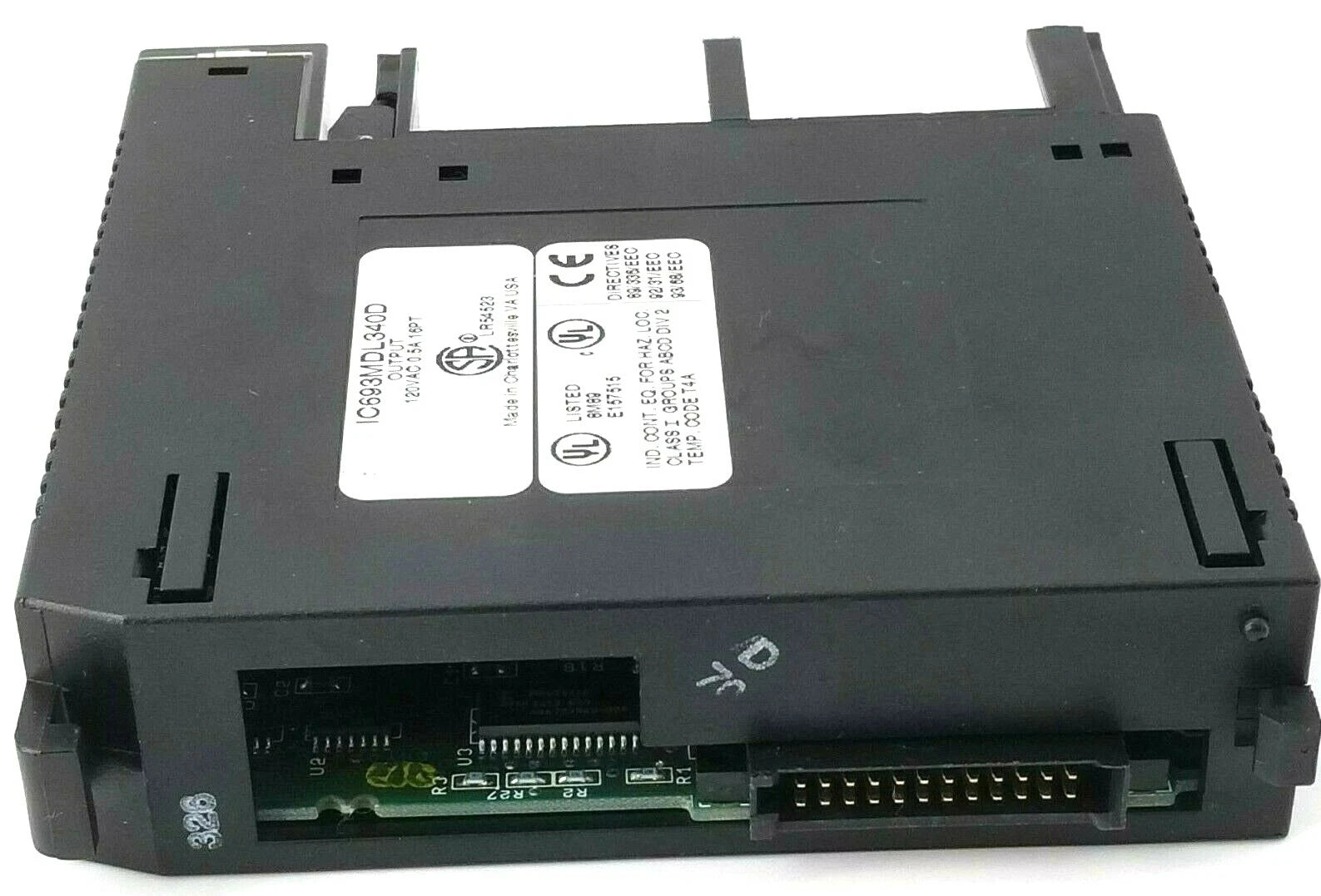

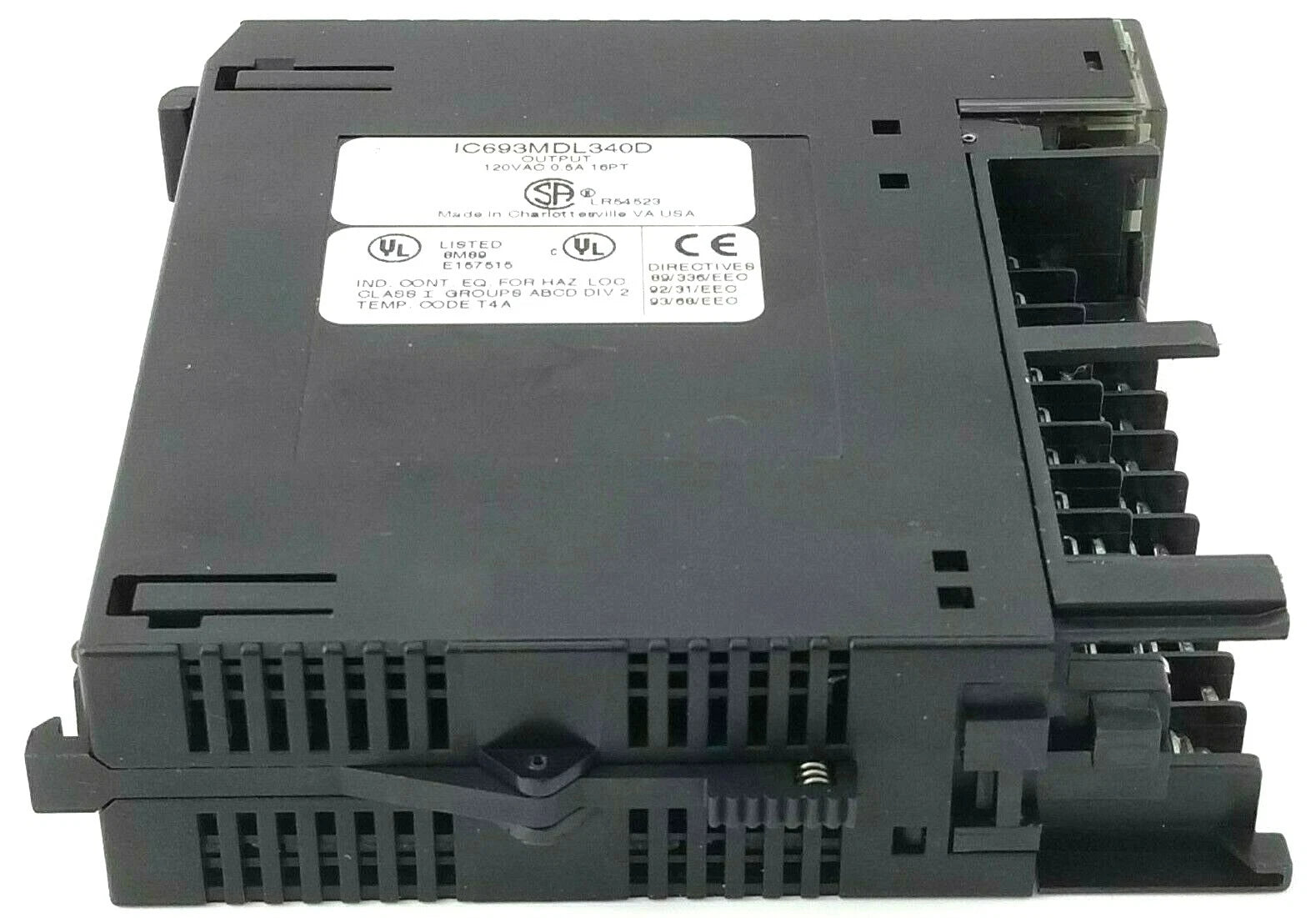

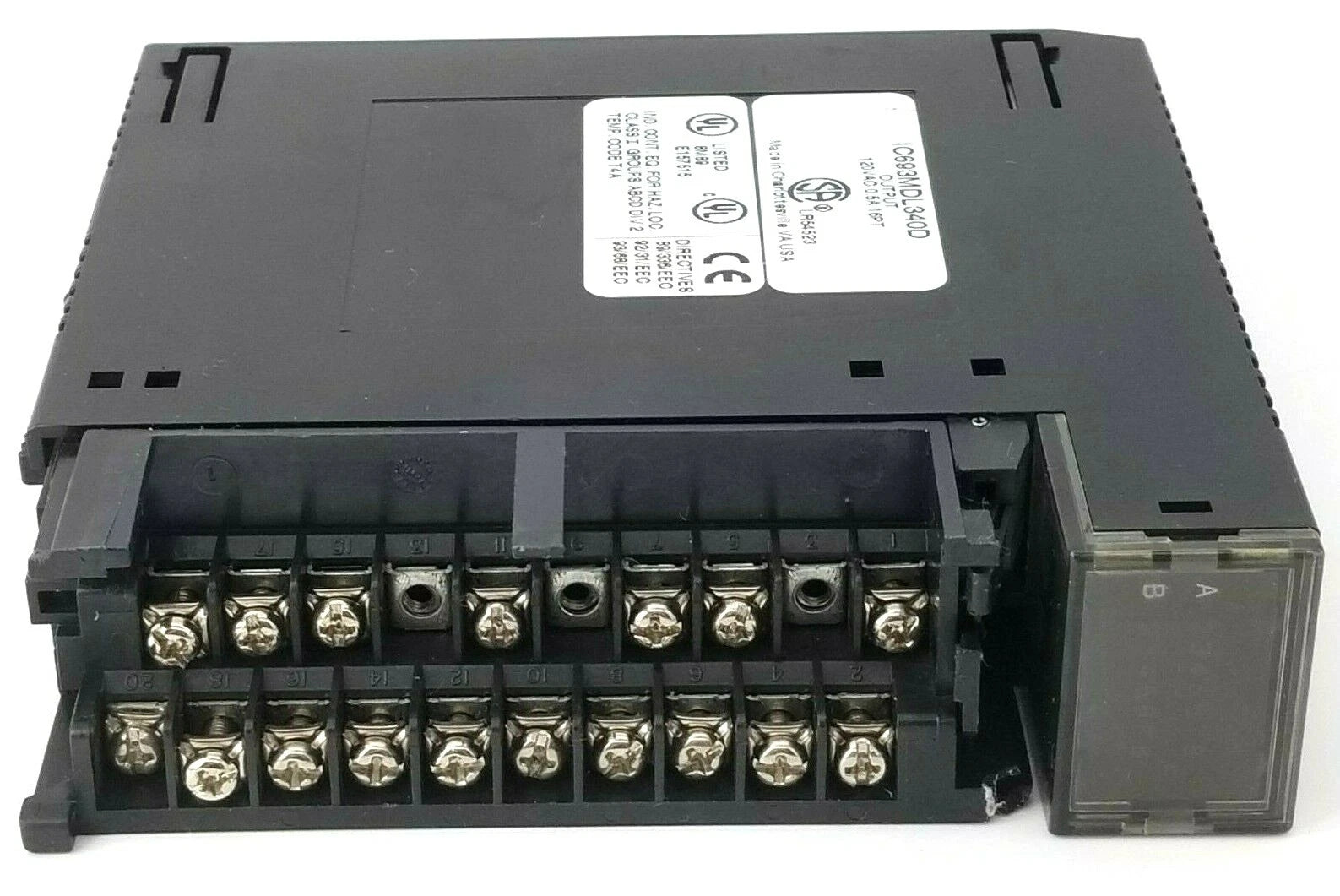

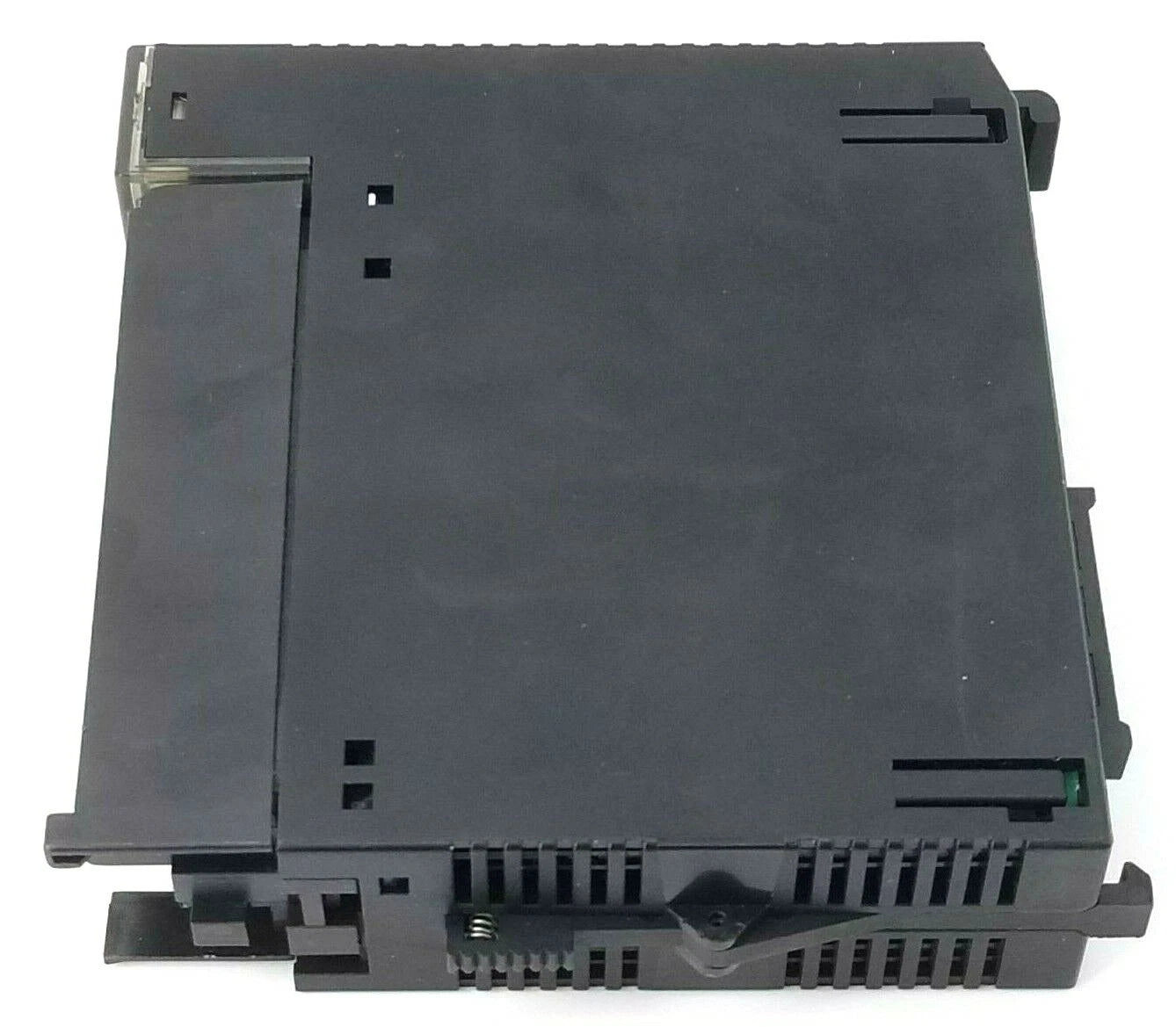

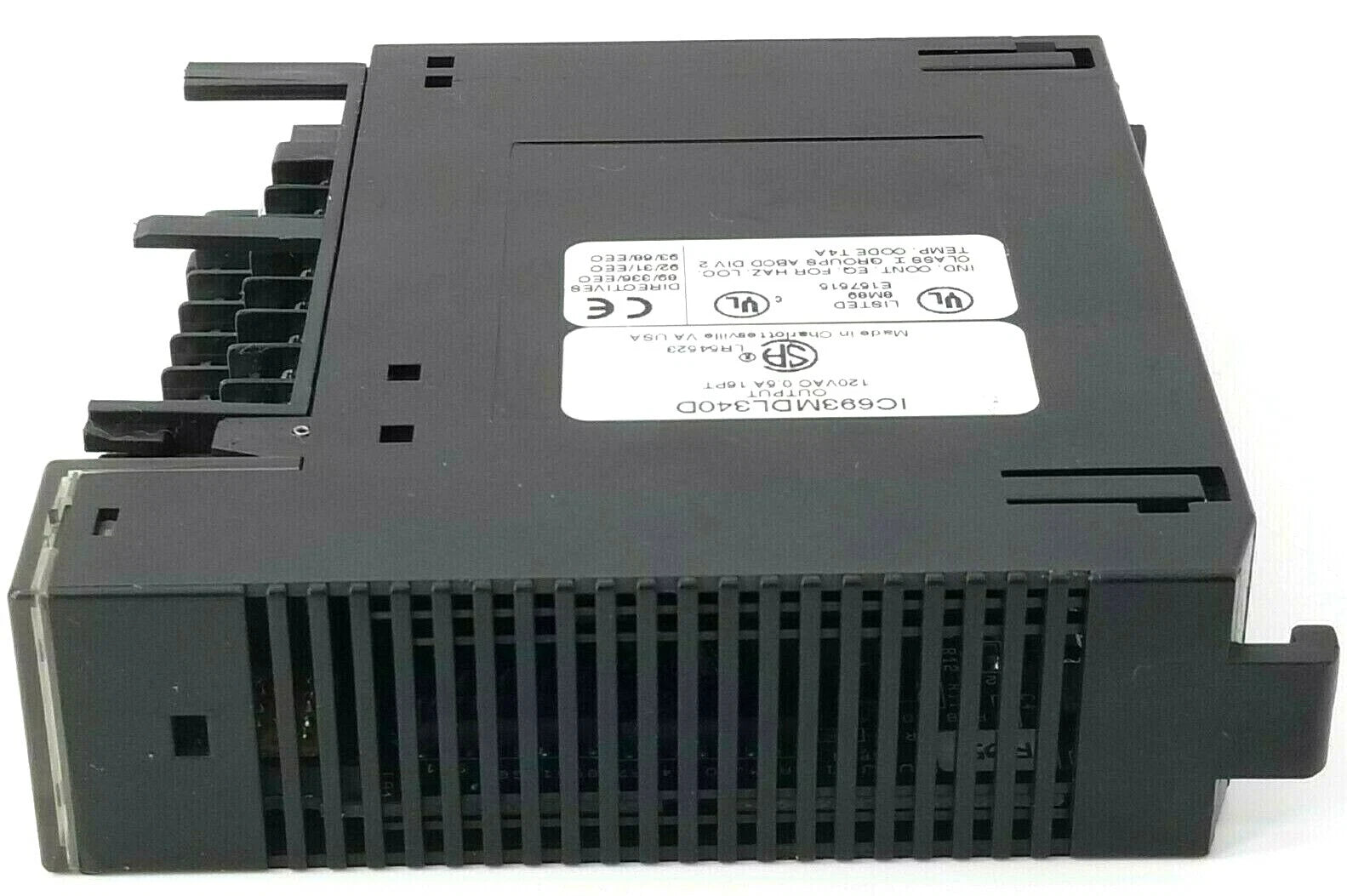

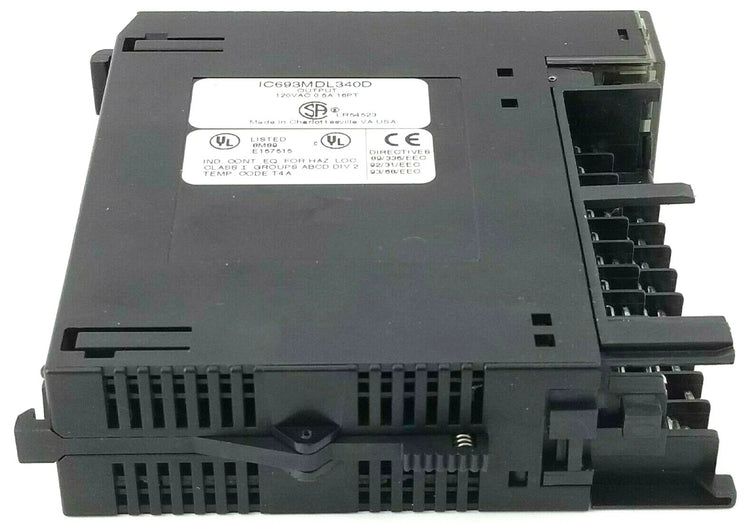

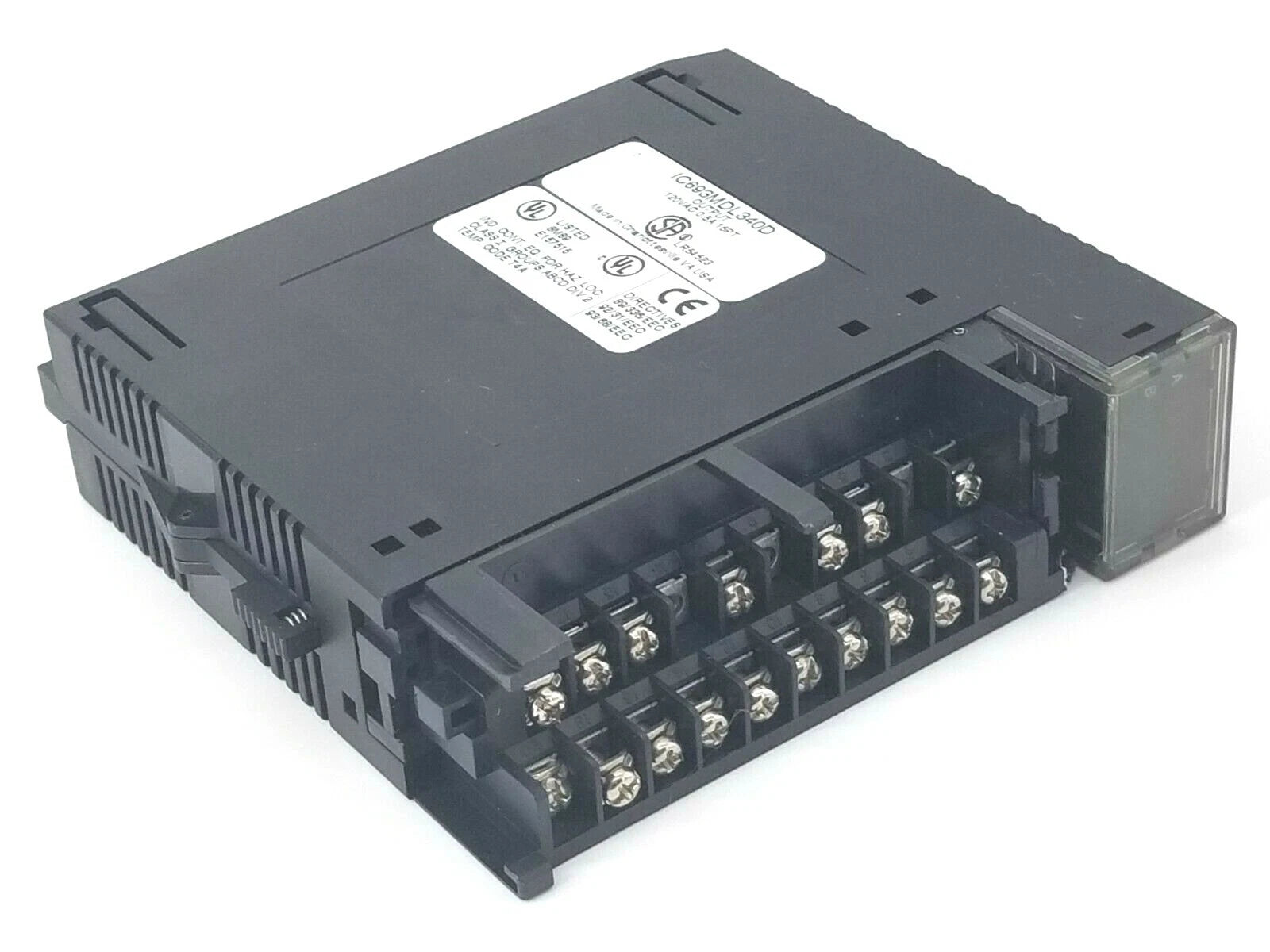

IC693MDL340D | GE Fanuc Series 90-30 16-Point 120 VAC Output Module
- Regular price
- $557.00
- Sale price
- $557.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IC693MDL340D
Description
The GE Fanuc IC693MDL340D is a 120 VAC output module from the Series 90-30 PLC family. It provides 16 output points rated at 0.5 A each, organized in two isolated groups, making it suitable for reliable AC load control in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc |
| Category | PLCs / Machine Control |
| Part Number | IC693MDL340D |
| Subcategory | Output Module |
| Series | 90-30 |
| Type | 16-Point AC Output |
| Rated Voltage | 120 VAC |
| Voltage Range | 85–132 VAC |
| Frequency | 50/60 Hz |
| Outputs | 16 points (2 groups of 8) |
| Output Current | 0.5 A per point, 3 A max per group |
| Protection | 3 A fuse per group, RC snubbers |
| Indicators | Green LEDs for each point, red fuse LED |
| Response Time | ON ≤ 1 ms, OFF ≤ ½ cycle |
| Power Consumption | 315 mA from 5 V bus (all outputs ON) |
| Mounting | Any I/O slot in 5- or 10-slot baseplate |
| Operating Temp | 0 to 60 °C typical |
| Manufacturer Status | Discontinued |
| Weight | ~0.75 lbs (≈0.34 kg) |
Information About IC693MDL340D
The IC693MDL340D is part of the GE Fanuc Series 90-30 I/O module line, designed to expand AC output capacity in PLC systems. This module delivers 16 outputs arranged in two groups of eight, each protected by a 3-amp fuse and isolated with its own common connection. Its RC snubbers protect against transient power line noise, ensuring stable operation in harsh electrical environments. Though discontinued, it remains in service as a replacement part for legacy Series 90-30 PLCs, offering long-term support in existing installations.
Key Features:
- 16 Output Points: Two isolated groups with 8 points each, rated 0.5 A per point.
- Independent Commons: Allows operation from separate AC phases or a shared supply.
- Voltage Range: Operates at 85–132 VAC, 50/60 Hz.
- Protection Built-In: 3-amp fuses per group and RC snubbers per output.
- Status Indicators: Green LEDs for each output, plus a red “F” LED for blown fuses.
- High Inrush Capability: Supports inductive and incandescent loads effectively.
- Fast Response: ON response ≤ 1 ms, OFF response ≤ ½ cycle.
- PLC Integration: Fits in any I/O slot of Series 90-30 5- or 10-slot baseplates.
The IC693MDL340D delivers reliable AC load switching and protection for Series 90-30 PLC systems.
