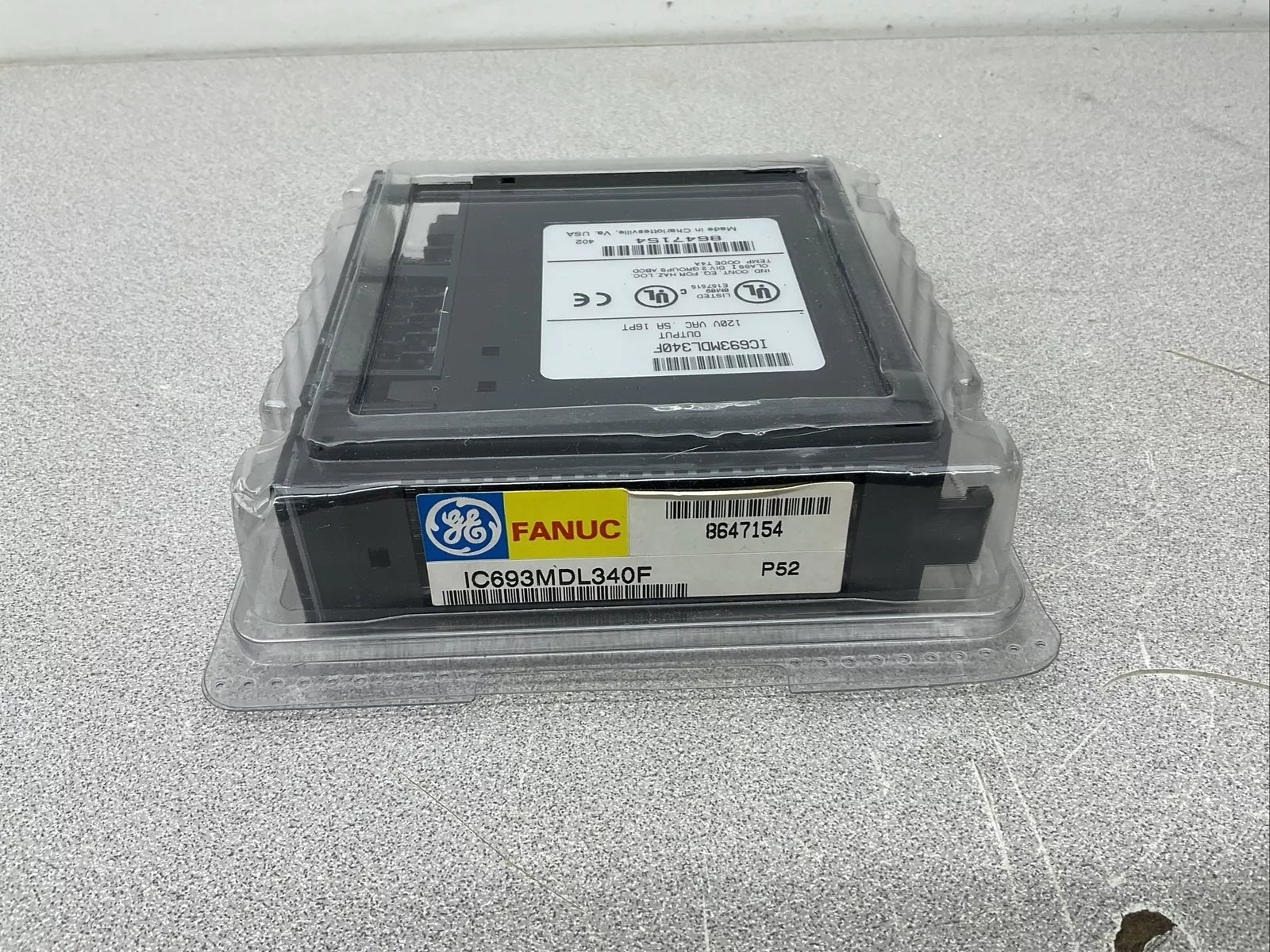

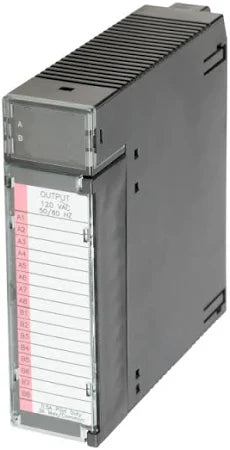

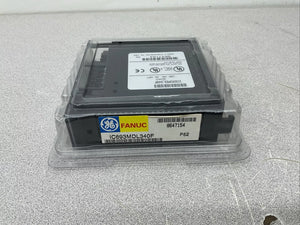

IC693MDL340F | GE Fanuc Output Module

Description

Technical Specifications

Information About IC693MDL340F

The GE Fanuc IC693MDL340F is a highly reliable AC output module designed for use within the Series 90-30 PLC (Programmable Logic Controller) systems, widely employed in industrial automation applications. This module provides robust performance and is specifically engineered to manage and control AC outputs in various industrial settings, making it an essential component for automated systems that require precise and reliable output control.

The IC693MDL340F module operates with a rated voltage of 120 volts AC, making it suitable for standard industrial power systems. It is designed to handle up to 16 individual outputs, each capable of delivering a current of 0.5 amps per point. This output capacity ensures that the module can manage a variety of devices, including solenoids, relays, and other actuators, which are commonly used in industrial control systems. The module’s ability to manage multiple outputs simultaneously makes it a versatile solution for complex automation tasks, where precise control over multiple devices is required.

One of the key features of the IC693MDL340F is its compatibility with both 50 Hz and 60 Hz power systems. This frequency flexibility allows the module to be used in different regions and industrial setups, accommodating the varying power grid standards across the world. The module’s output voltage range spans from 85 to 132 volts AC, providing a wide operating window that ensures stable performance even in environments where voltage fluctuations may occur. This broad voltage range also contributes to the module’s adaptability, enabling it to maintain reliable operation under various electrical conditions.

The IC693MDL340F is designed with an emphasis on durability and reliability, which are critical factors in industrial environments where equipment is often subjected to harsh conditions. The module’s construction ensures that it can withstand the typical stresses of industrial use, such as electrical noise, temperature variations, and physical vibrations. This durability helps to minimize the risk of failure, thereby reducing downtime and maintenance costs, and ensuring continuous operation of the control system.

In terms of integration, the IC693MDL340F is designed to interface seamlessly with GE Fanuc’s Series 90-30 PLC systems. This compatibility simplifies the process of adding the module to an existing PLC configuration, as it can be easily installed and configured without requiring extensive modifications to the system. The module is designed for straightforward installation, with clear labeling and standard connectors that facilitate quick and error-free wiring. This ease of integration is particularly valuable in industrial settings where minimizing setup time is essential for maintaining productivity.

The IC693MDL340F does not support DC power outputs, focusing exclusively on AC output control. This specialization allows the module to deliver optimized performance for AC-powered devices, ensuring that the control signals are delivered with the required precision and consistency. The absence of DC output capability also simplifies the module’s design, reducing the potential for electrical interference and enhancing the overall reliability of the outputs.

This output module also includes features that enhance its safety and reliability, such as short-circuit protection and overcurrent protection for each output point. These protective measures help to safeguard both the module and the connected devices from damage caused by electrical faults, ensuring that the system can recover quickly from transient conditions without sustaining permanent damage. These protections are vital in industrial environments, where equipment reliability directly impacts operational efficiency and safety.

The IC693MDL340F’s design also takes into account the need for easy maintenance and troubleshooting. Each output channel is clearly labeled, allowing technicians to quickly identify and address any issues that may arise during operation. This clear organization reduces the time required for diagnostics and repair, helping to keep the automation system running smoothly with minimal interruptions.

In summary, the GE Fanuc IC693MDL340F is a robust and versatile AC output module designed for integration with Series 90-30 PLC systems in industrial automation environments. With its ability to manage 16 AC outputs at 0.5 amps per point, compatibility with both 50/60 Hz systems, and a wide voltage range of 85 to 132 volts AC, this module is well-suited to a variety of industrial control applications. Its durable construction, ease of integration, and protective features make it a reliable choice for maintaining precise and consistent control over industrial processes. Whether used in new installations or as part of an upgrade to an existing system, the IC693MDL340F offers the performance and reliability required to support the demanding needs of modern industrial automation.
