IC693MDL654 | GE Fanuc Logic Input Module
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?

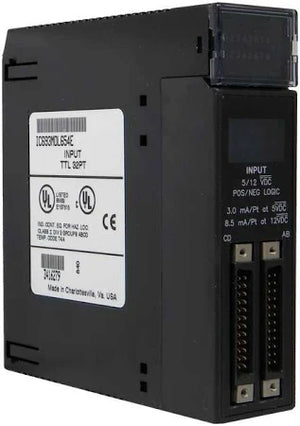

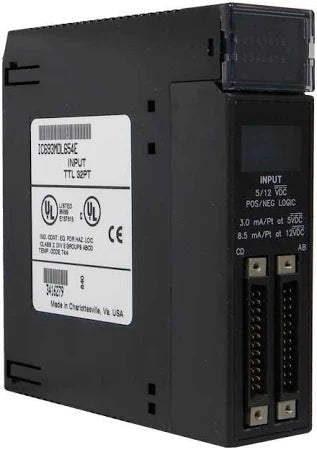

Product Description P/N: IC693MDL654
Description
IC693MDL654 is a 32-point input module designed for the Series 90-30 Programmable Logic Controller (PLC), supporting 5/12 volt DC (TTL) positive or negative logic inputs. Each input point is grouped into four distinct groups (A1 - A8, B1 - B8, C1 - C8, and D1 - D8), totaling 32 discrete TTL voltage threshold input points. The module generates a +5V supply internally, isolated from the PLC backplane, allowing flexibility in powering inputs either internally or externally via user-supplied power.
Technical Specifications
|
Manufacturer |
GE Fanuc |
|
Series |
Series 90-30 |
|
Part Number |
IC693MDL654 |
|
Product Type |
Input Module |
|
Rated Voltage |
5/12V DC, (+/- Logic) |
|
Input Voltage |
0-15V DC |
|
Typical Input Current at 5V DC |
3.0 mA |
|
Typical Input Current at 12V DC |
8.5 mA |
|
On-state Voltage |
4.2 to 15V DC |
|
Off-state Voltage |
0 to 2.6V DC |
|
On-state Current |
2.5 mA (minimum) |
|
Off-state Current |
1.2 mA (maximum) |
|
On Response Time |
1 ms (maximum) |
|
Off Response Time |
1 ms (maximum) |
Information About IC693MDL654
The IC693MDL654 is a 5/12 volt DC (TTL) Positive/Negative Logic Input module designed for the Series 90-30 Programmable Logic Controller (PLC) by GE Fanuc. It features 32 discrete TTL voltage threshold input points organized into four groups (A1 - A8, B1 - B8, C1 - C8, and D1 - D8). These inputs accommodate both positive and negative logic configurations up to 15V.
The module operates with a +5V supply internally generated and isolated from the PLC backplane. Users have the option to power inputs either internally through jumpers on the I/O connector or externally. However, using the internal supply increases the load on the PLC's +5V power supply. Opto-couplers provide backplane isolation of 1500 volts between the field side and logic side, and 250 volts between the module's four classes, ensuring robust performance.
IC693MDL654 incorporates LED indicators (A1 - A8, B1 - B8, C1 - C8, D1 - D8) for each input point, displaying their ON/OFF status. Typical input currents are 3.0 mA at 5VDC and 8.5 mA at 12VDC. This module utilizes 32 bits of discrete %I input data and is suitable for installation on a 5 or 10-slot baseplate within a Series 90-30 PLC system.
Manufacturer information
GE FANUC, now part of Emerson Automation Solutions, was a leading provider of industrial automation and control systems. Known for innovative solutions, GE FANUC played a key role in advancing manufacturing, offering a range of products including PLCs, CNCs, and HMI solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
